Corally Kagama-4

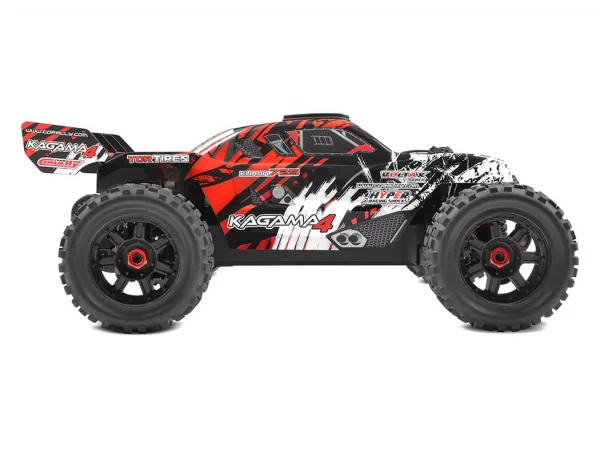

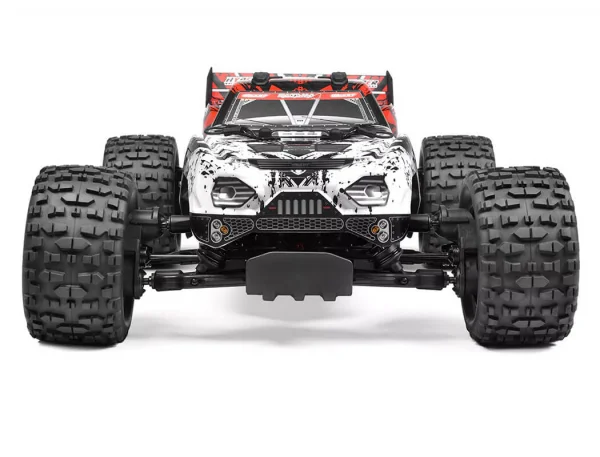

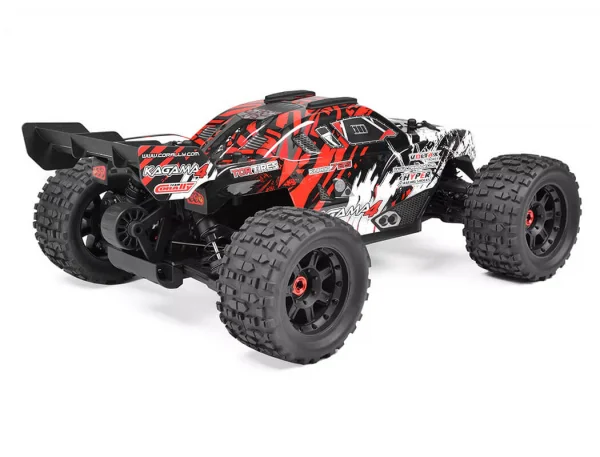

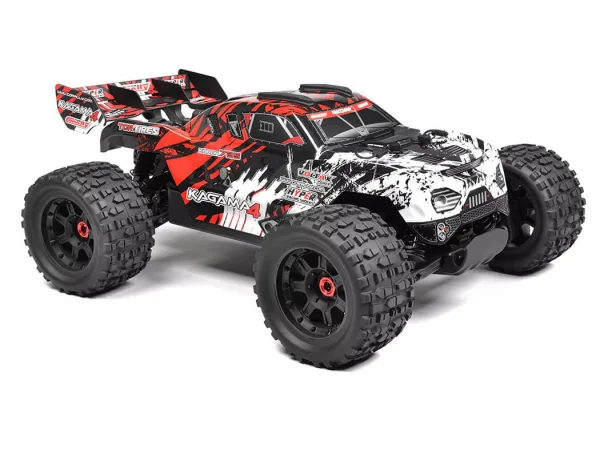

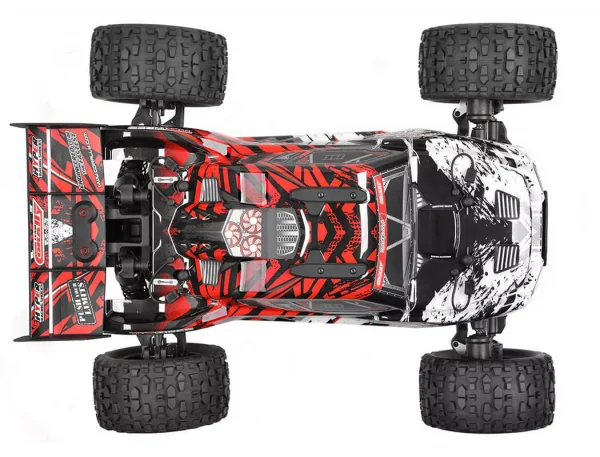

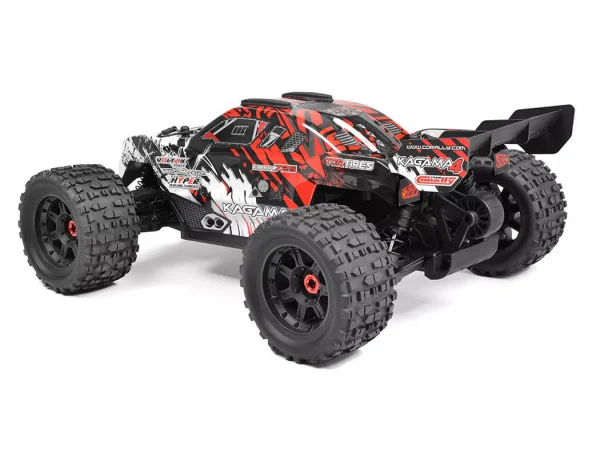

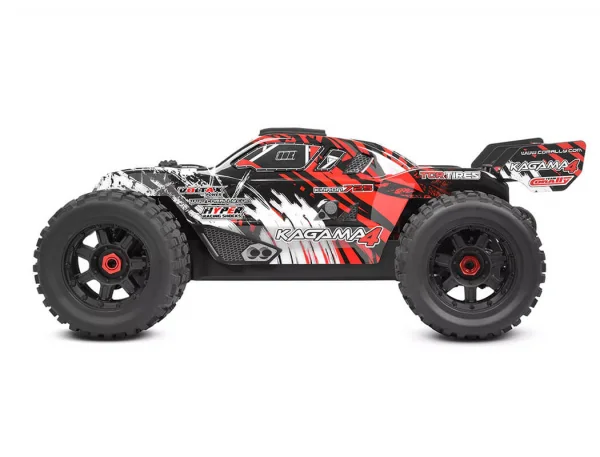

CORALLY KAGAMA-4 BRUSHLESS 4S BASHER TRUCK RTR - RED

Kagama4 - Performance You Love, Value You Trust!

Introducing the Team Corally Kagama4, the latest XL4S scale monster truck designed to dominate the world of off-road bashing. Engineered for enthusiasts at every level, the Kagama4 combines strength, durability, and cutting-edge technology, making it the perfect choice for both newcomers and seasoned bashers. Plus, it brings the Kagama design to a more compact scale!

The Kagama4 is built on the proven Syncro4 platform, delivering an elevated bashing experience at an incredible value. While many enthusiasts have transformed their buggies into "truggies," Team Corally now offers the ultimate fusion of fun and performance straight from the factory!

When it comes to quality and performance, the Kagama4 makes no compromises. Every detail of this monster truck is engineered for maximum impact, ensuring you get the best of both worlds - unmatched power and reliability. Fully packed with advanced features, the Kagama4 is designed to dominate any terrain, delivering the ultimate bashing experience every time. From its robust construction to its powerful components, this truck is built to perform, giving you everything you need to conquer the toughest challenges without sacrificing an ounce of quality.

Unleash the Power: Kagama4 Ready-to-Run Package

At the core of the Kagama4 is the robust Kuron 725 4-pole, 2150kv sensorless brushless motor, paired with the Torox 135 Electronic Speed Control. This powerful duo delivers exhilarating performance, utilizing 4S LiPo batteries to achieve speeds over 80 km/h. The HV7225 digital high-speed servo, with durable metal gears and 25Kg of torque, provides precise and responsive steering.

Precision Control with the CT2S Compact Transmitter

Experience unmatched control with the CT2S compact 2.4 GHz transmitter, offering lightning-fast response times and a range of over 200m. Essential features like steering dual rate, servo reverse, and a 50%-100% power switch ensure that the Kagama4 is accessible to drivers of all skill levels. Its compact design makes it easy to transport, perfect for hobbyists of all ages.

Suspension and Handling: Master Any Terrain

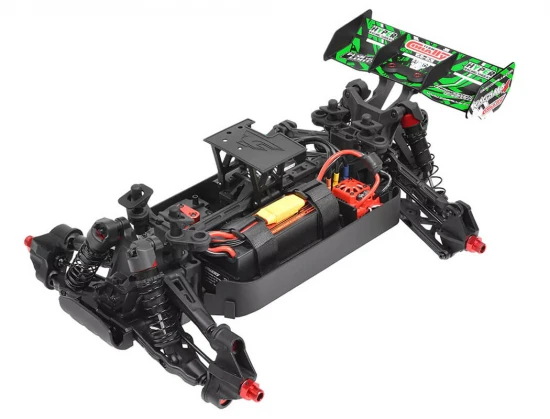

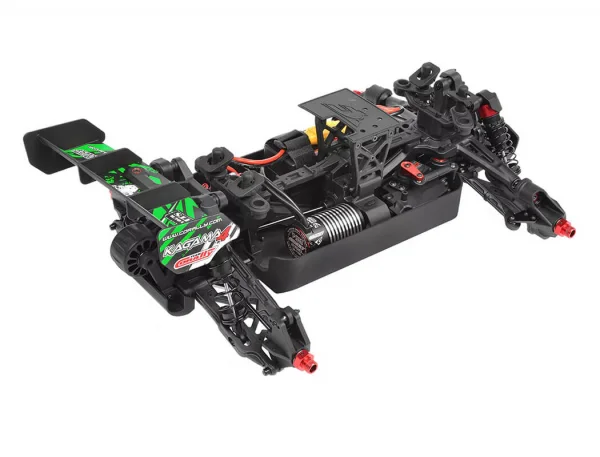

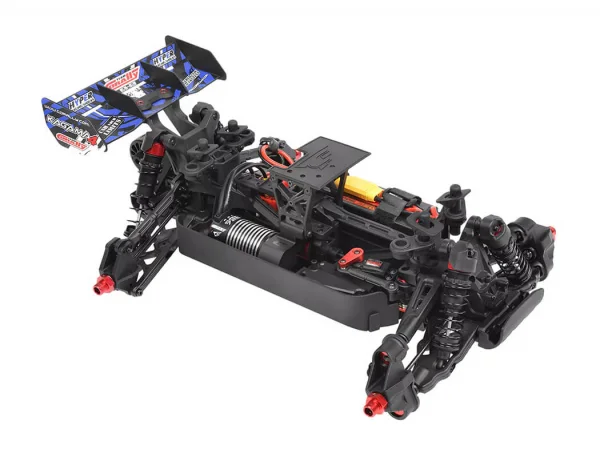

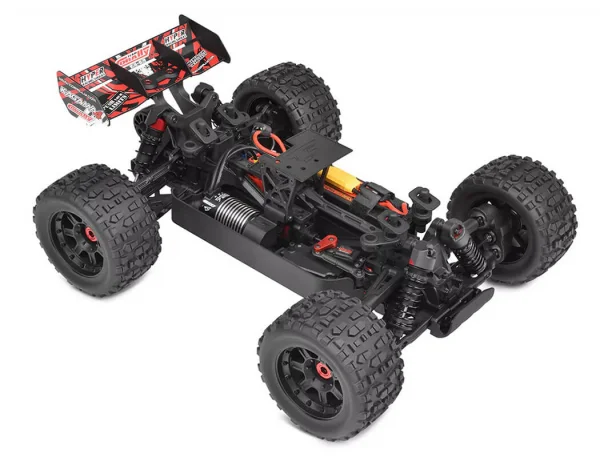

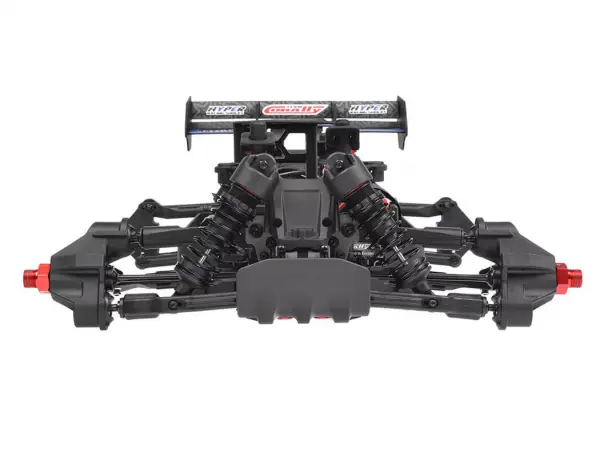

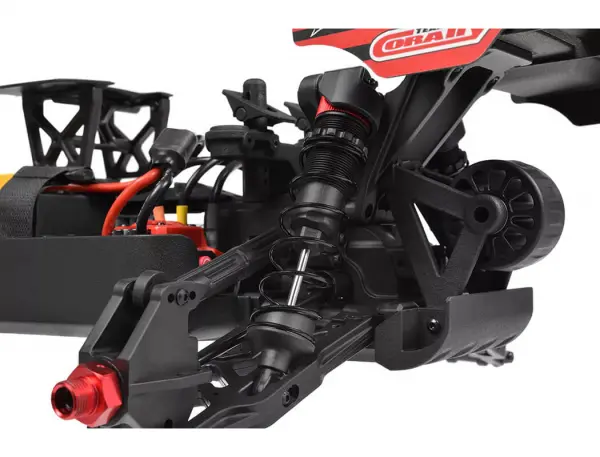

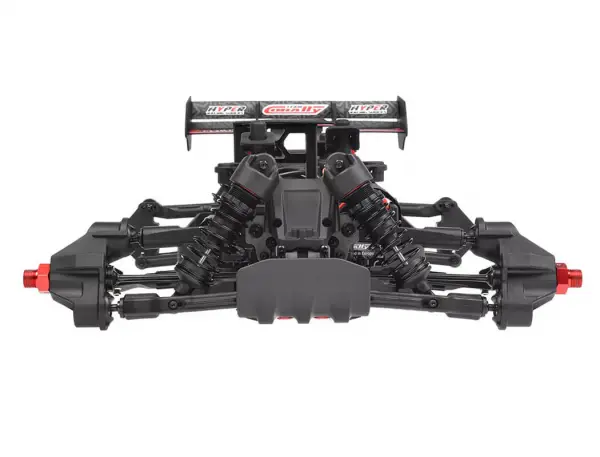

The Kagama4 is engineered to conquer any terrain with its advanced suspension system. Incorporating proven components from the Radix6 and Sketer, as well as Kagama’s rugged wide steering blocks and rear hubs, this truck ensures top-notch performance. New composite towers, coupled with 4mm CNC machined arm holders and precision-engineered links, provide the ideal balance of durability and performance. The heavy-duty composite big bore shocks allow the Kagama4 to handle any terrain with ease!

Drivetrain Mastery: Engineered for Power and Precision

The Kagama4’s drivetrain is built for ultimate power and precision. The truck features a 52T spur gear, steel outdrive cups, central driveshafts, and aerospace-quality rubber-sealed ball bearings. This configuration optimises efficiency, ensuring the Kagama4 is ready to tackle any challenge. Wide hubs and Sketer’s Multi-Block Stunt Tyres (134x70mm) offer exceptional grip and stability on all surfaces.

Customisation and Tuning: Ready for Any Challenge

While the Kagama4 comes fully equipped to conquer any terrain, Team Corally provides a wide array of tuning parts for those looking to push its performance even further. Its lightweight construction, agile handling, and high-speed capabilities make the Kagama4 a joy to drive right out of the box.

Setting a New Standard in Monster Trucks

The Kagama4 is more than just a truck; it’s a bold statement in the bashing community. By fully embracing the "truggified" concept, it marries the agility of a buggy with the raw power of a monster truck. With its tough, aggressive design, the Kagama4 promises an unrivaled off-road experience.

Features

• 75+ km/h (45+ mp/h) possible
• Pre-built Ready to Run XL4S Monster Truck
• Team Corally TOROX 135 ESC, 2-4S with LiPo protection
• Team Corally Kuron 725, 2150kV, 4-Pole Brushless Motor
• CRHV-7225 HV Metal Gear, 25Kg Torque, Steering Servo
• Team Corally CT2S NEW 2.4GHz Transmitter with 50/100% power switch
• Aluminium servo arm
• One-Piece Composite Steering Link
• New splash-proof and dustproof electronic box with transponder mount
• XL Adjustable battery holder for all common LiPo batteries
• Full set of ball bearings, rubber sealed
• All transmission ball bearings are 8x16x5mm
• Steel spur gear and motor pinion
• Three sealed differentials individually filled with silicone oil
• Quick + Easy diff access
• Aluminium motor holder with spur gear cover
• Fixed motor position for 13T, 15T and 17T pinion
• 52T Steel Central gear

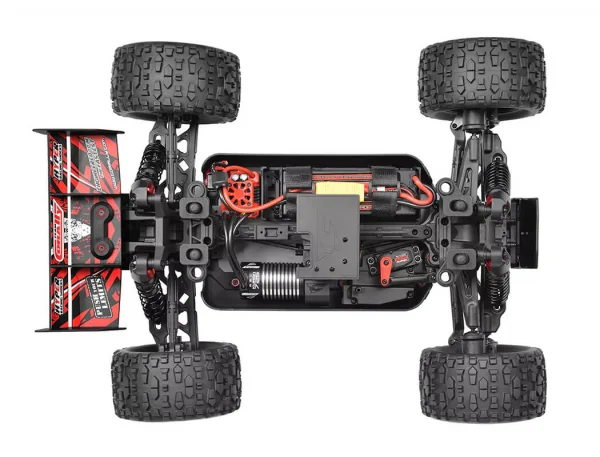

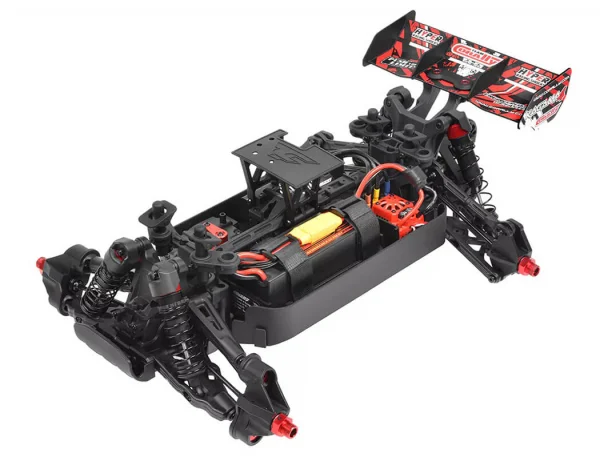

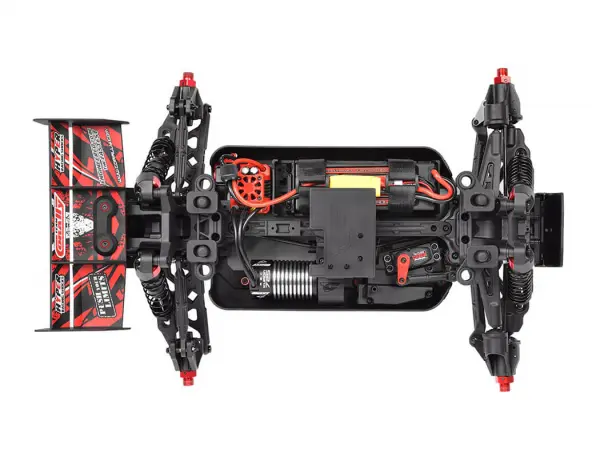

• Ultra-rigid composite chassis brace system
• Complete Hard Coated Steel Outdrives
• Extra Surface Hardened Steel front CVD joints
• Aluminium 17mm drive hexes
• Oil-filled threaded 16 mm plastic Big Bore shocks
• Shock spring perches locking system
• Nylon composite shock cap protectors
• Composite Front and Rear Shock Towers
• Independent Pivot Ball front suspension
• Independent double wishbone rear suspension
• Optimised, custom developed composite parts
• Wide HD front steering blocks and rear hubs
• Thick 4mm Aluminium Suspension Pin Braces
• Composite Suspension Braces protectors
• Heavy-Duty one-piece composite suspension links and tie rods
• 3mm Aluminium Laser Etched chassis plate
• Tall, reinforced chassis side guards with integrated body protection

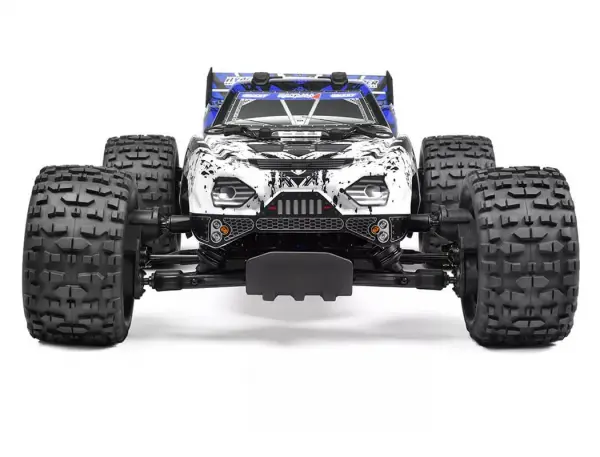

• Heavy Duty front Bumper

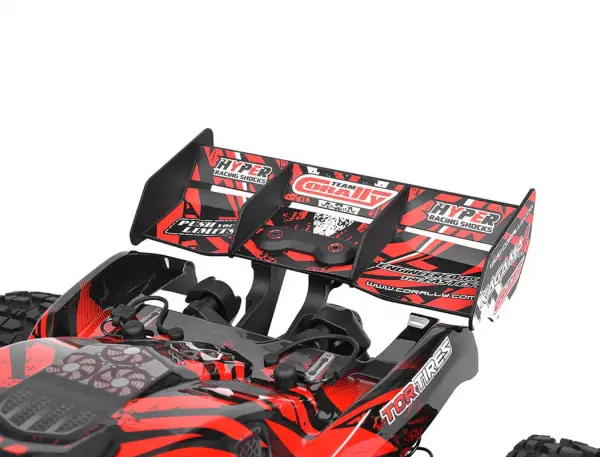

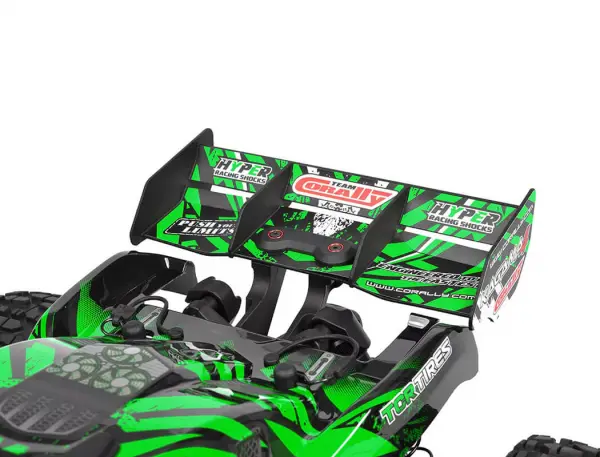

• New Reinforced High Downforce Wing
• Factory-mounted and glued bash-ready tyres on black 7-spoke composite wheels

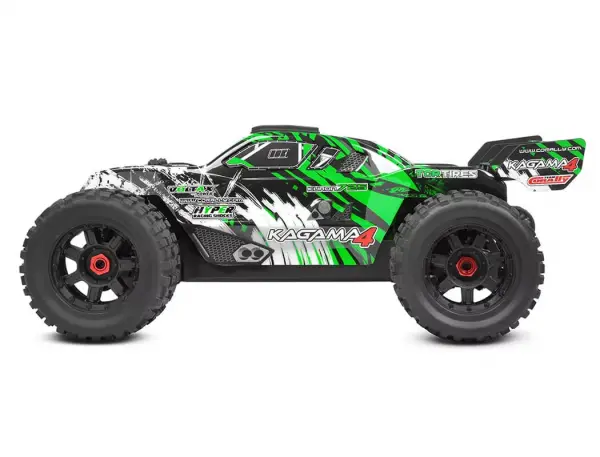

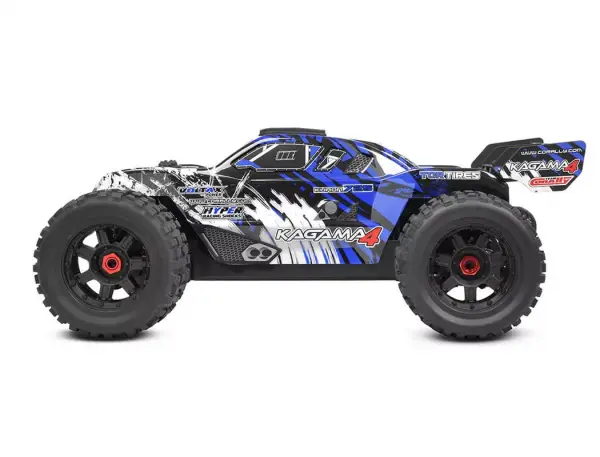

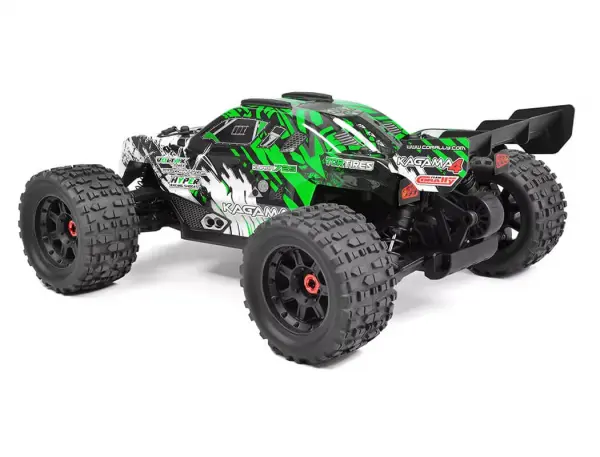

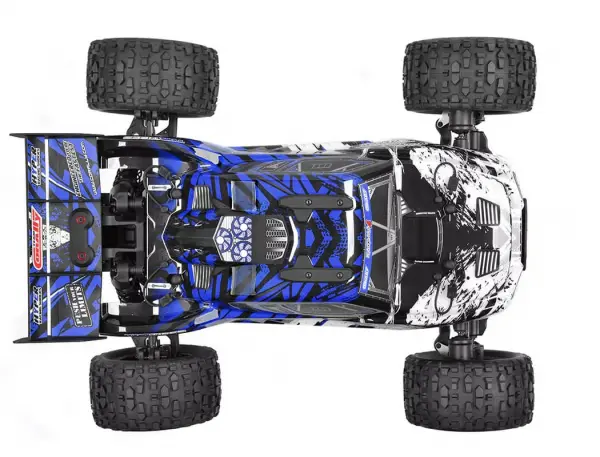

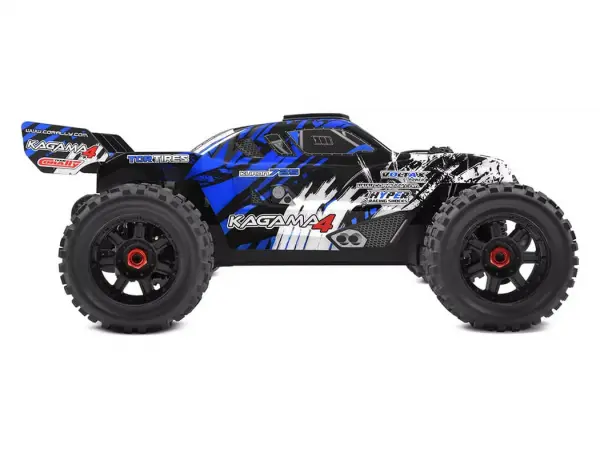

• Sturdy, elaborately printed polycarbonate body available in 3 color schemes
• Kagama Style Body
• Body roof protector/support
• Adjustable body mounts
• Adjustable, multi-position wheelie bar
• Wide assortment of tuning parts available for individual customisation

Explore the Potential of the Team Corally Kagama4

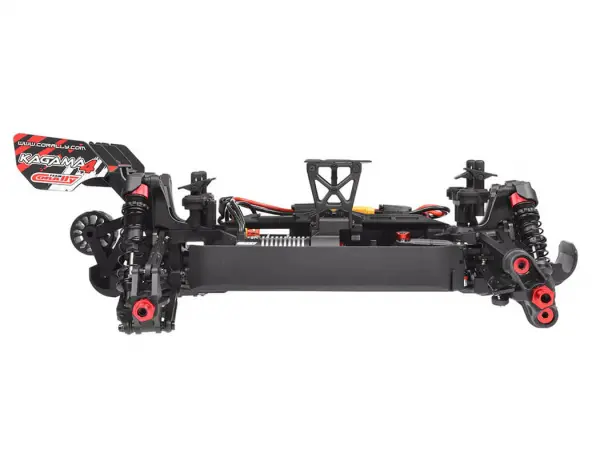

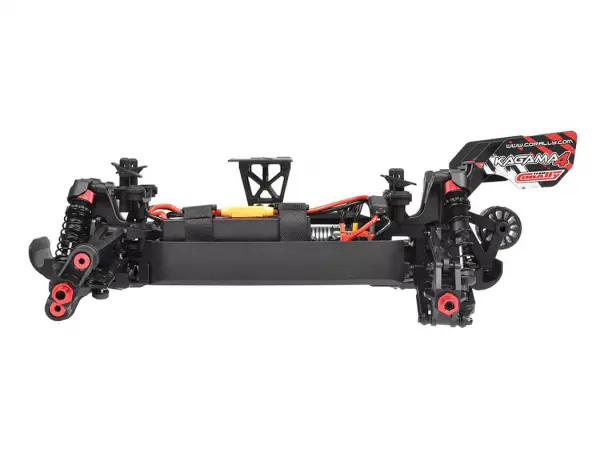

The Kagama4, a XL4S scale monster truck, is engineered for both beginners and experienced bashers. Built on the same chassis as the Syncro4, it introduces innovative features at an unbeatable price. The new threaded composite big bore shocks, extreme composite shock towers, and reinforced chassis brace system exemplify the perfect blend of durability, performance, and value. With its striking titanium-colored aluminium chassis, skid plates, new wheelie bar, and aerodynamic wing, the Kagama4 redefines off-road style.

Its hybrid aluminium motor mount offers three motor positions for precise pinion alignment. The reinforced drivetrain, featuring steel outdrive cups and a sturdy 52T spur gear, ensures long-lasting durability. Wide hubs from the Kagama and Sketer wheels add stability and off-road capability, while a new wheelie bar helps manage the immense power. From the Kuron 725 brushless motor to the Torox 135 ESC, every component contributes to an exhilarating top speed of over 80 km/h. The CT2S 2.4GHz transmitter, chassis reinforcement system, and high-downforce wing complete the package, making the Kagama4 a true testament to Team Corally’s legacy of innovation and performance.

Specifications

Car - Model Type

Car Type: Monster Truck
Age Requirement: Age 14+
Skill Level: Intermediate
Completion Level: RTR - Ready To Run
Assembly Time: No Assembly Required
Drive Train: 4WD - Shaft Driven
Power System: 4S / 3S / 2S Motor Type: Brushless
Recommended Environment: All Terrain
Top Speed (km/h): 80

Car - Dimensions

Model Scale: 1/10 Scale
Length (mm): 515
Height (mm): 182
Wheelbase (mm): 327
Track Front (mm): 390
Track Rear (mm): 388
Ground Clearance (mm): 55
Weight (g) - No Battery: 4000
Battery Compartment LxWxH (mm): 161x51x50
Shock Dia. ø (mm): 19
Front Shock Length (mm): 106
Rear Shock Length (mm): 130
Rim Dia. ø (mm): 82
Rim Width (mm): 57
Tyre Dia. ø (mm): 133
Tyre Width (mm): 69

Car - Electronics

Motor: Kuron 725 - 2150KV - 2-4S (Included)
Power Battery: Not Included
Radio: TC - CT-2S 2.4GHz (Included)
Servo: CR-7225 - 25Kg Torque (Included)
Speed Control: TC - Torox 135 2-4S (Included)
Charger: Not Included

Car - Tech Details

Wheel Adapter: 7 mm Hex Adapter
Bearings: Full Ball Bearings - Rubber Shielded
Differentials: 3x Gear Differentials
Front Suspension Type: Independent - Pillow Ball Type
Rear Suspension Type: Independent - Wishbones
Gear Pitch: MOD 1.0
Spur Gear (T): 52
Motor Pinion (T): 13
Internal Drive Ratio: 3.31
Overall Drive Ratio: 13,23
Shock Type: Oil Filled Composite Shocks - Coil Over Springs

Car - Materials

Bevel Gear - Pinion: Steel - Powder Metallurgy Casting
Chassis: 3mm - Aluminium 6061-T6 - Color Anodised
Chassis Braces: Molded Composite
Differential Center: Molded Composite
Differential FR - RE: Molded Composite Case
Outdrives: Hardened Steel
Lower Arm Holders: 4mm 6061-T6 Aluminium + Composite
Shock Tower - Front: Molded Composite Shock Tower
Shock Tower - Rear: Molded Composite Shock Tower
Motor pinion; Precision CNC Machined - Hardened Steel
Spur Gear: Precision CNC Machined - Hardened Steel
Bodyshell: Polycarbonate - Painted, Decalled and Trimmed

Needed To Complete

• Battery and Charger

• Brand: Corally
• Part No: C-00293
• Scale: 1:10
• Build Level: Assembled (RTR)
• Power Source: Electric - Brushless
• Vehicle Type: Monster Truck
• Surface Type: Off Road
