Corally Ultra High Speed 30mm ESC Cooling Fan (BEC)
Brand: Corally
Part No: C-53110-1
In Stock: Usually ships same day
Finance options available at checkout.
Fits These Models (11)
Corally Kagama XP 6S Brushless Truck RTR - Blue
Corally Kagama XP 6S Brushless Truck RTR - Green
Corally Kagama XP 6S Brushless Truck RTR - Red
Corally Kagama XP 6S Limited Edition RTR- Corally Kagama XP 6S Roller Truck RTR - Blue
- Corally Kagama XP 6S Roller Truck RTR - Green
- Corally Kagama XP 6S Roller Truck RTR - Red
Corally Kagama-4
Corally Punisher 4S RTR
Corally SBX-825 7075 Edition
Corally SBX-825 Carbon Edition
Frequently Bought With
Other items customers often buy with the Corally Ultra High Speed ESC Cooling Fan - 30mm - BEC Plug
Description

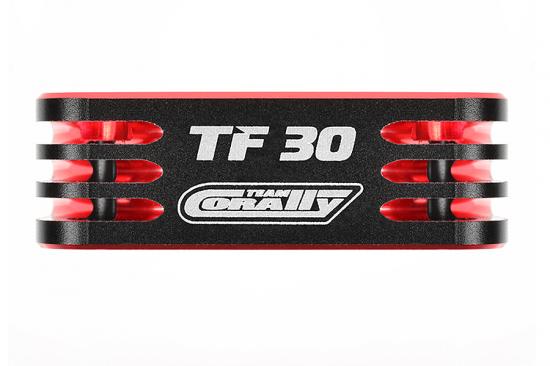

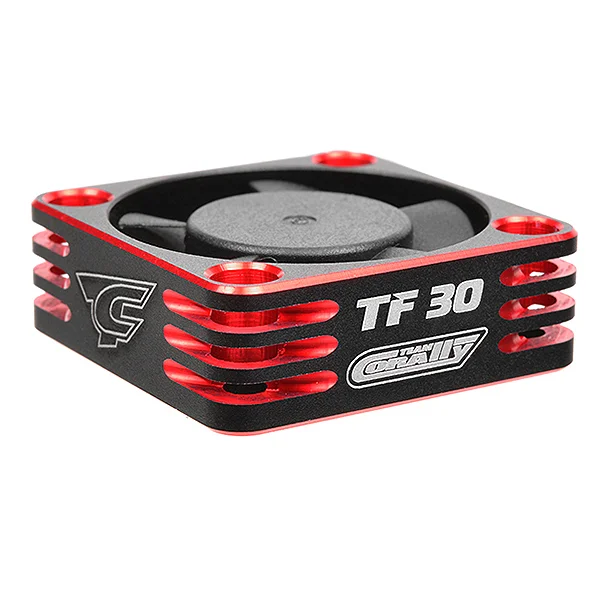

The Corally Ultra High Speed ESC Cooling Fan (C-53110-1) keeps your speed controller running cooler with a compact 30 x 30 x 10mm form factor and robust T6 aluminium heat-sink case. Spinning at up to 28,000RPM, it is designed to deliver strong airflow, while reverse polarity protection adds peace of mind. The 2-pin JST/receiver (BEC) plug and 180mm lead make installation straightforward on many RC car electronics. Rated for use up to 8.75V (2S LiPo), it draws approximately 0.65A at 7.4V and features a durable black/red finish at just 15g.
Key Specifications
- T6 aluminium heat sink designed case
- Reverse polarity protected
- Size: 30 x 30 x 10mm

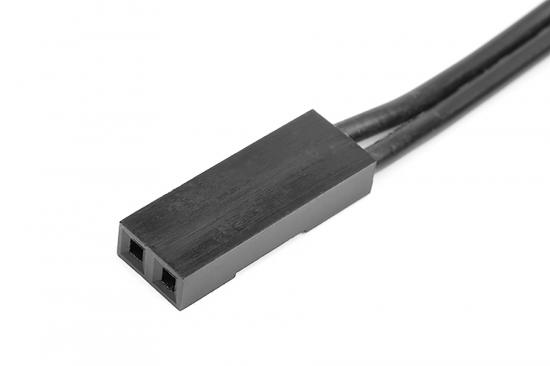

- Plug: 2-pin JST/Receiver (BEC)
- Wire length: 180mm
- Speed: 28,000RPM
- Max voltage: 8.75V (2 cell LiPo)
- Current: 0.65A at 7.4V
- Weight: 15g
- Colour: Black/Red
Suggested Compatibility
Suggested compatibility: ESCs and electronics heat sinks designed for 30mm fans and a 2-pin JST/BEC connection. Always confirm size, plug type, and voltage limits for your installation.
Secured by Stripe
Corally Ultra High Speed ESC Cooling Fan - 30mm - BEC Plug Manuals & Guides
How-To Guides & Articles
Specifications
These cooling fans are made in an aluminium housing for better heat dissipation.
Specifications- T6 Aluminum Heat Sink Designed Case
- Reverse Polarity Protected
- Size: 30 x 30 x 10mm
- Plug: 2 Pin JST/Receiver
- Wire Length: 180mm
- Speed: 28,000RPM
- Max Voltage: 8.75v (2 cell lipo)
- Current 0.65Amps at 7.4V
- Weight: 15g
- Color: Black/Red
Key Info:
- Brand: Corally
- Part No: C-53110-1
- Barcode: 8718057197551
- Fitment: Option Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
This is a standalone fan, so as long as you can mount it and power it up, it will work.
We have never fitted one but the dimensions are right so it should work.
As long as your mount is for a 30mm x 30mm fan this would work.
