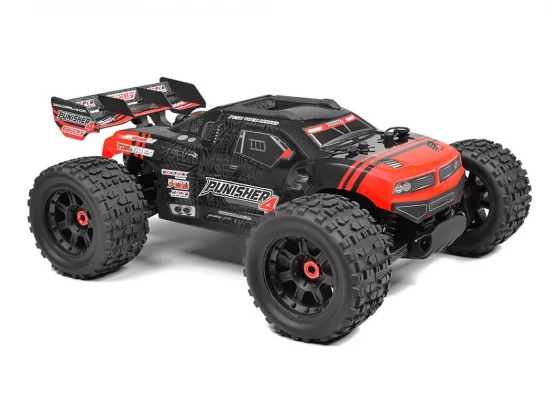

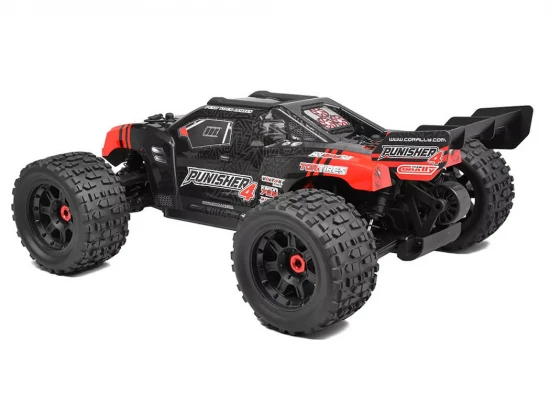

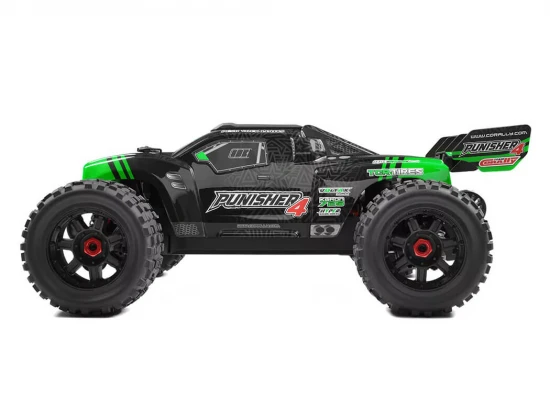

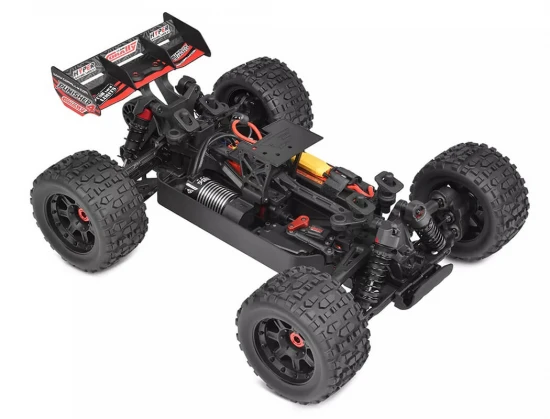

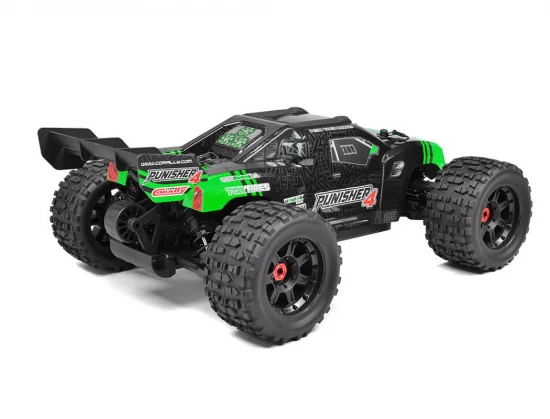

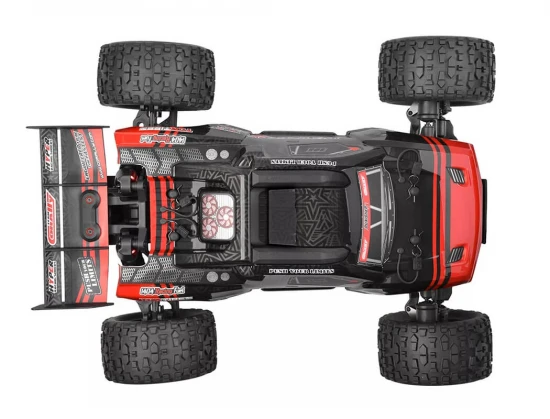

Corally Punisher 4S RTR

CORALLY PUNISHER 4 BRUSHLESS 4S BASHER TRUCK RTR

Punisher4 - Your Style. Your Power. Your Bash!

Introducing the Team Corally Punisher4, the latest 1:10 scale monster truck designed to push the boundaries of off-road bashing. Perfect for enthusiasts of all levels, the Punisher4 combines power, durability, and innovation, making it an excellent choice for both newcomers and experienced bashers. It also brings the iconic Punisher body to scale!

The Punisher4 is based on the proven Syncro4 platform, offering a next-level bashing experience at great value. Enthusiasts worldwide have long modified their buggies into "truggies," but now, Team Corally offers a perfect blend of fun and performance right out of the box!

With the Punisher4, there's no compromise on quality or performance. Every aspect of this monster truck is crafted for those who demand the best. Packed with powerful features, the Punisher4 is designed to handle any challenge, offering a thrilling bashing experience with every drive. Its solid construction and top-tier components ensure that you get the reliability and power you need to conquer any terrain, all without sacrificing quality.

Unleash the Beast: Punisher4 Ready-to-Run Package

At the heart of the Punisher4 is the powerful Kuron 725 4-pole, 2150kv sensorless brushless motor, paired with the Torox 135 Electronic Speed Control. This combination delivers thrilling performance, utilizing 4S LiPo batteries to reach speeds over 80 km/h. The HV7225 digital high-speed servo, with robust metal gears and 25Kg of torque, ensures precise steering.

Advanced Control with the CT2S Compact Transmitter

Experience unparalleled control with the CT2S compact 2.4 GHz transmitter, offering quick response times and a range of over 200m. Key features like steering dual rate, servo reverse, and a 50%-100% power switch make the Punisher4 accessible for all skill levels. Its compact design makes it easy to carry, ideal for enthusiasts of all ages.

Suspension and Handling: Conquer Any Terrain

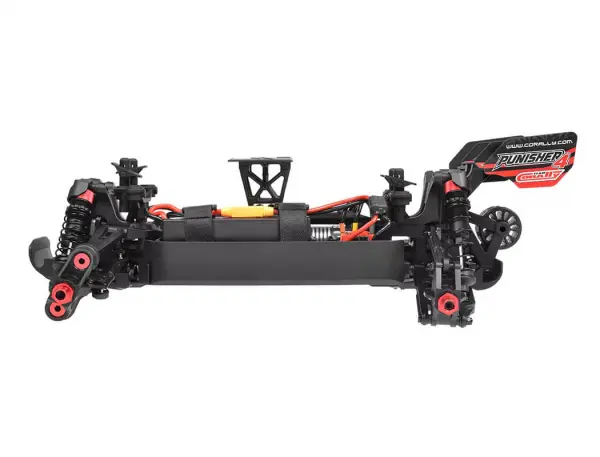

The Punisher4 is built to dominate any terrain with its advanced suspension system. Using proven components from the Radix6 and Sketer, as well as Kagama’s heavy-duty wide steering blocks and rear hubs, this truck ensures top performance. New composite towers, combined with 4mm CNC machined arm holders and precision-engineered links, provide durability without sacrificing performance. The robust composite big bore shocks help the Punisher4 tackle any terrain with ease!

Drivetrain Excellence: Built for Strength and Precision

The Punisher4's drivetrain is engineered for power and precision. The truck includes a 52T spur gear, steel outdrive cups, central driveshafts, and aerospace-quality rubber-sealed ball bearings. This setup maximizes efficiency, ensuring the Punisher4 is ready for any challenge. Wide hubs and Sketer’s Multi-Block Stunt Tires (134x70mm) provide exceptional grip and stability on any surface.

Customization and Tuning: Ready for Anything

While the Punisher4 comes ready to conquer, Team Corally offers a range of tuning parts for those who want to enhance its performance even further. Its lightweight design, responsive handling, and high speeds make the Punisher4 a dream to drive right out of the box.

A New Standard in Monster Trucks

The Punisher4 is more than just a truck; it’s a statement in the bashing community. As the first to fully embrace the "truggified" concept, it combines the agility of a buggy with the power of a monster truck. With its rugged, aggressive design, the Punisher4 promises an unmatched off-road experience.

Kagama4 and Punisher4: Two Icons, One Platform

The Kagama4 and Punisher4 are essentially the same powerful monster truck, each featuring a different body to cater to fans of the iconic Kagama and Punisher designs. Whether you prefer the Kagama's rugged toughness or the Punisher's striking style, both trucks offer the same high-performance experience with a look that suits your taste.

Corally Punisher 4S RTR Features:

• Up to 80+ km/h (50+ mp/h).
• Pre-built Ready to Run 1:10 Monster Truck.
• Team Corally TOROX 135 ESC, 2-4S with LiPo protection.
• Team Corally Kuron 725, 2150kV, 4-Pole Brushless Motor.
• CRHV-7225 HV Metal Gear, 25Kg Torque, Steering Servo.
• Team Corally CT2S NEW 2.4GHz Transmitter with 50/100% power switch.
• Aluminium servo arm.
• One-Piece Composite Steering Link.
• New splash-proof and dustproof electronic box with transponder mount.
• XL Adjustable battery holder for all common LiPo batteries.
• Full set of ball bearings, rubber sealed.
• All transmission ball bearings are 8x16x5mm.
• Steel spur gear and motor pinion.
• Three sealed differentials individually filled with silicone oil.
• Quick + Easy diff access.
• Aluminium motor holder with spur gear cover.
• Fixed motor position for 13T, 15T and 17T pinion.
• 52T Steel Central gear.

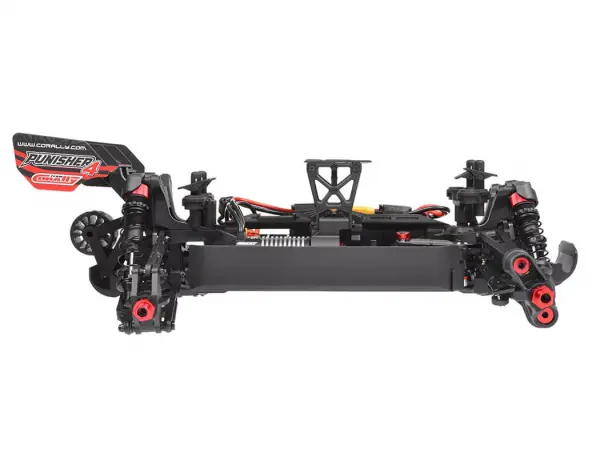

• Ultra-rigid composite chassis brace system.
• Complete Hard Coated Steel Outdrives.
• Extra Surface Hardened Steel front CVD joints.
• Aluminium 17mm drive hexes.

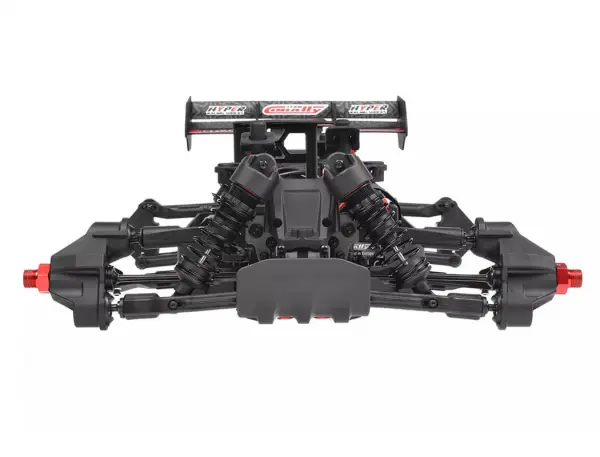

• Oil-filled threaded 16 mm plastic Big Bore shocks.
• Shock spring perches locking system.
• Nylon composite shock cap protectors.
• Composite Front and Rear Shock Towers.
• Independent Pivot Ball front suspension.
• Independent double wishbone rear suspension.
• Optimized, custom developed composite parts.
• Wide HD front steering blocks and rear hubs.
• Thick 4mm Aluminium Suspension Pin Braces.
• Composite Suspension Braces protectors.
• Heavy-Duty one-piece composite suspension links and tie rods.

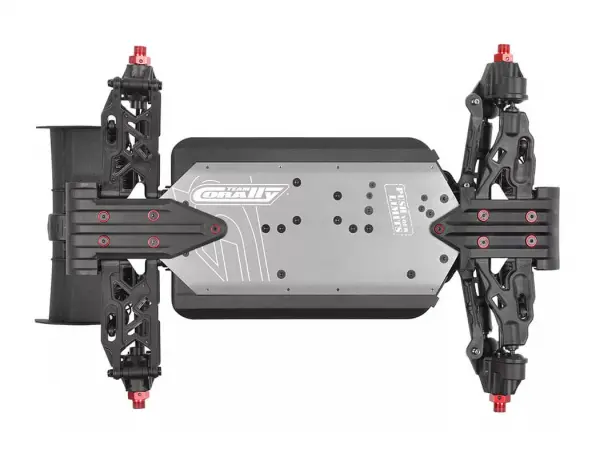

• 3mm Aluminium Laser Etched chassis plate.
• Tall, reinforced chassis side guards with integrated body protection.

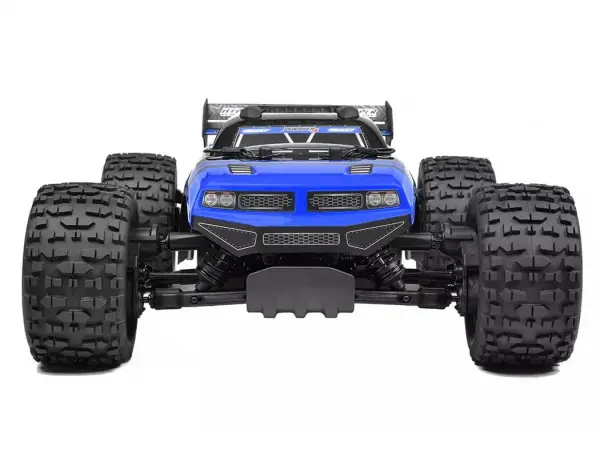

• Heavy Duty front Bumper.
• New Reinforced High Downforce Wing.
• Factory-mounted and glued bash-ready tires on black 7-spoke composite wheels.

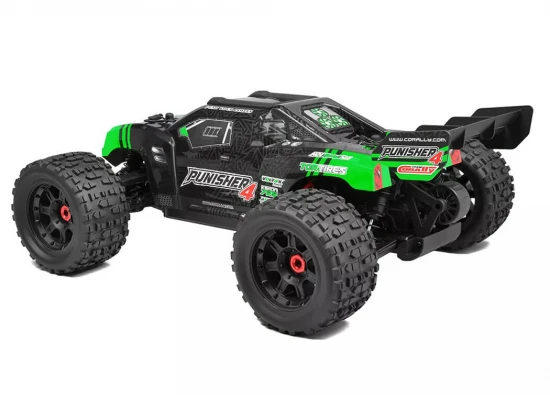

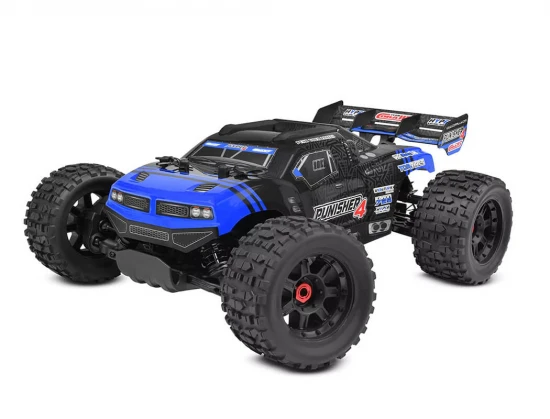

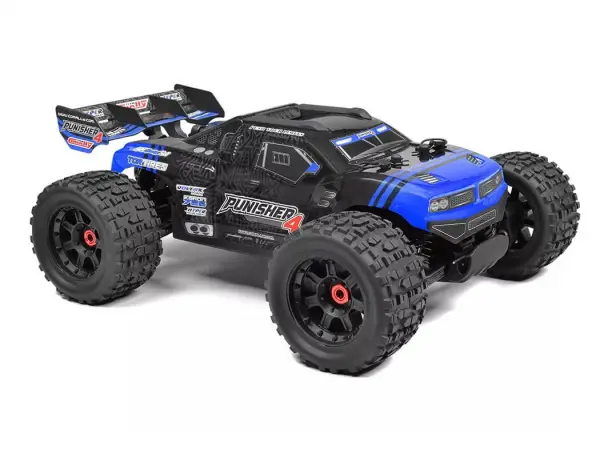

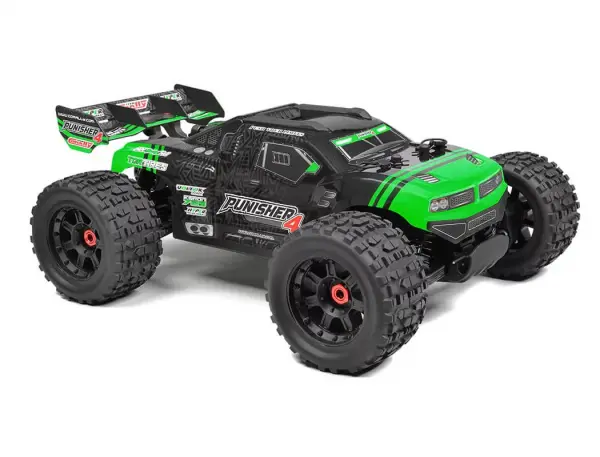

• Sturdy, elaborately printed polycarbonate body available in 3 color schemes.

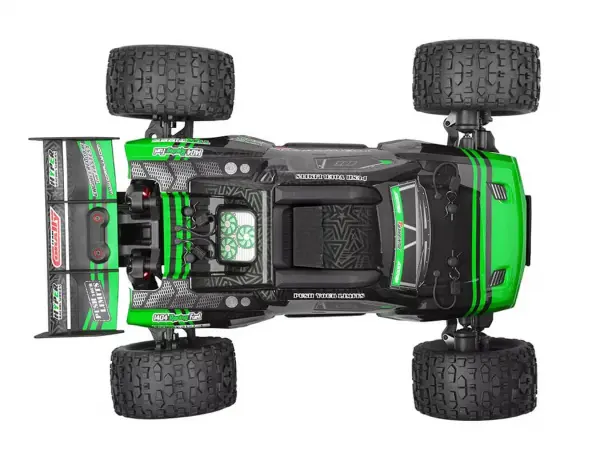

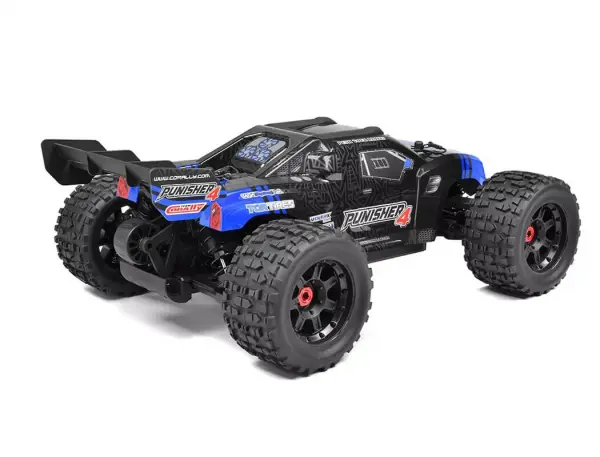

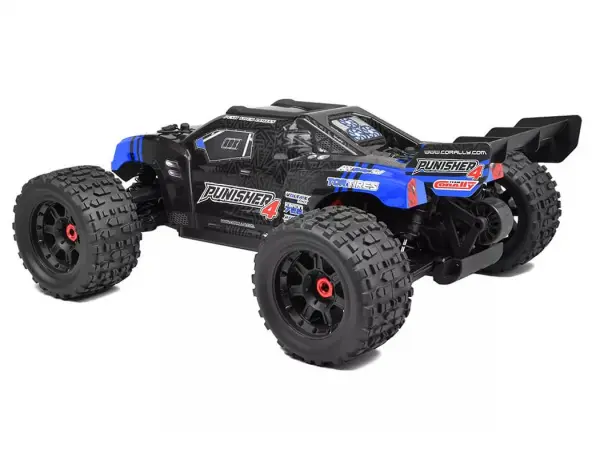

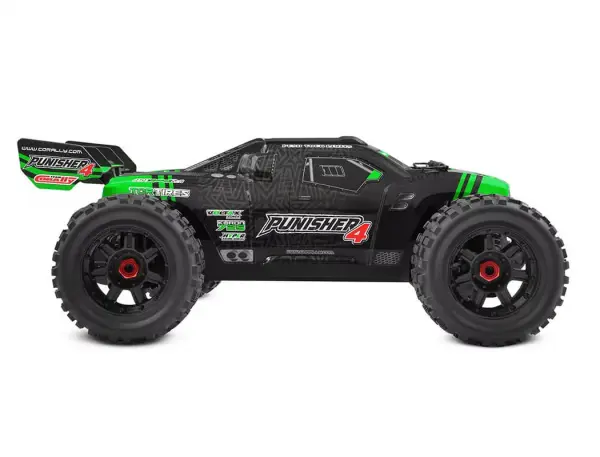

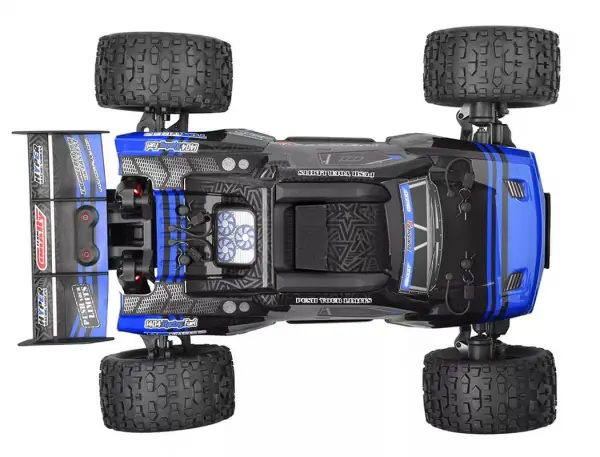

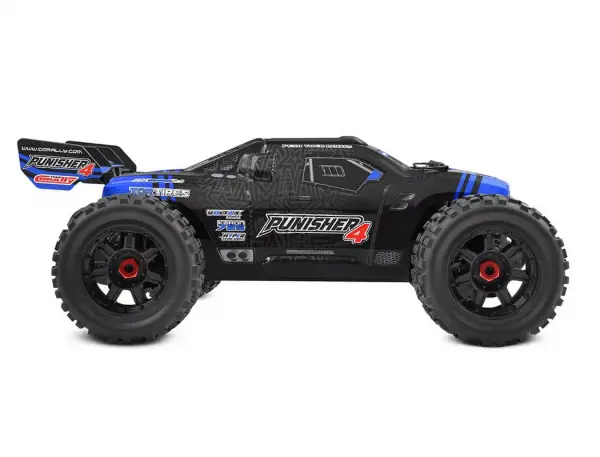

• Iconic Punisher Body.
• Body roof protector/support.
• Adjustable body mounts.

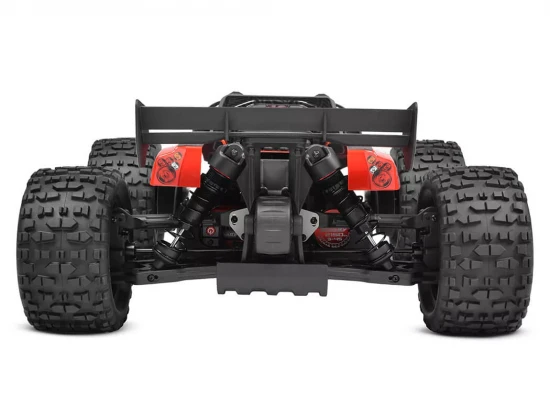

• Adjustable, multi-position wheelie bar.
• Wide assortment of tuning parts available for individual customisation.

Explore the Power of the Team Corally Punisher4

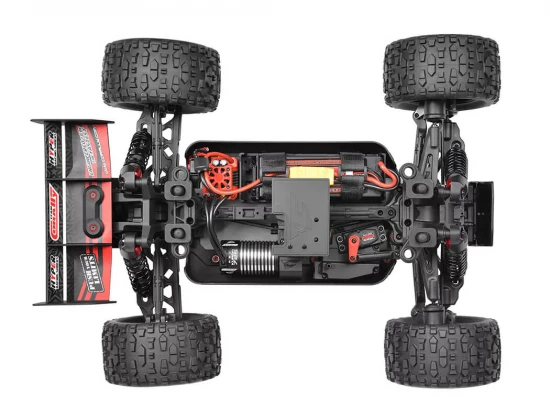

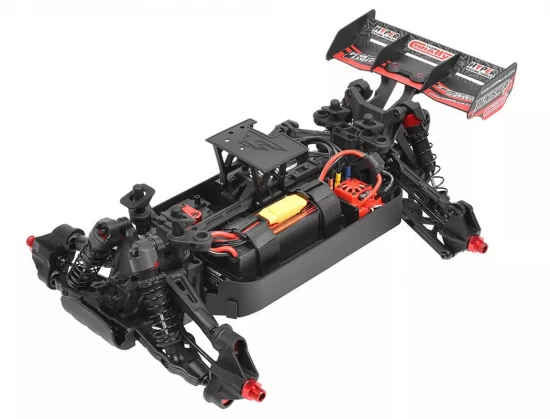

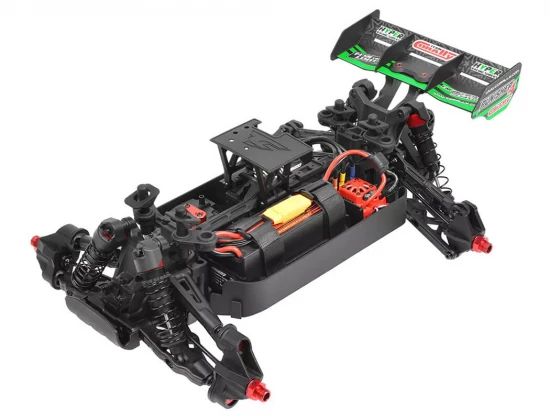

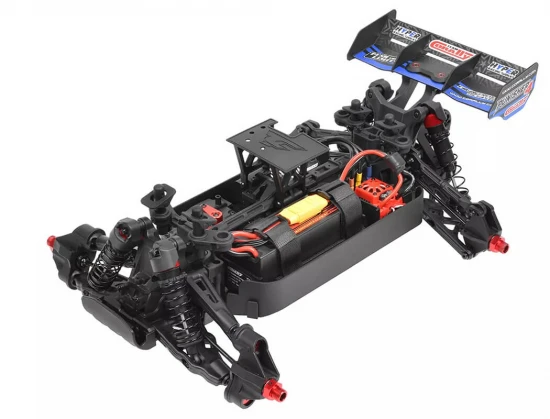

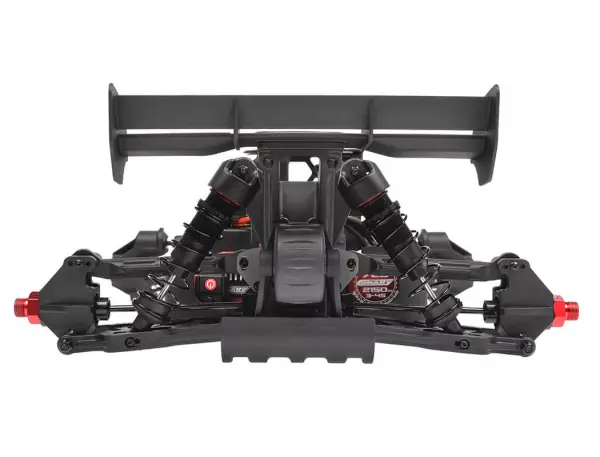

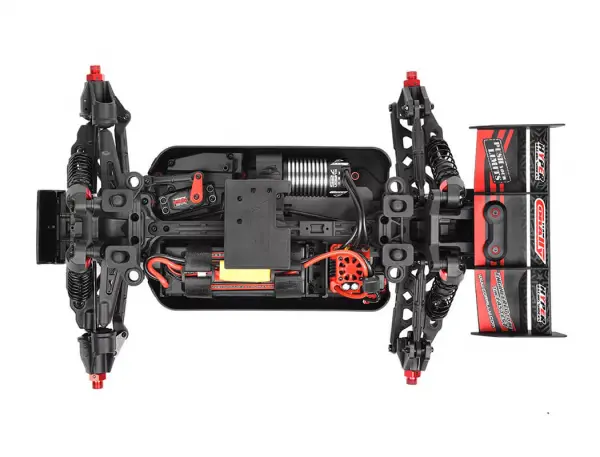

The Punisher4, a 1:10 scale monster truck, is engineered for both beginners and experienced bashers. Built on the same chassis as the Syncro4, it introduces innovative features at an unbeatable price. The new threaded composite big bore shocks, extreme composite shock towers, and new chassis brace system exemplify the perfect blend of durability, performance, and value. With its striking titanium-colored aluminium chassis, skid plates, new wheelie bar, and aerodynamic wing, the Punisher4 redefines off-road style.

Its aluminium motor mount offers three motor positions for precise pinion alignment. The reinforced drivetrain, featuring steel outdrive cups and a sturdy 52T spur gear, ensures long-lasting durability. Wide hubs from the Kagama and Sketer wheels add stability and off-road capability, while a new wheelie bar helps control the immense power. From the Kuron 725 brushless motor to the Torox 135 ESC, every component contributes to an exhilarating top speed of over 80 km/h. The CT2S 2.4GHz transmitter, chassis reinforcement system, and high-downforce wing complete the package, making the Punisher4 a true testament to Team Corally’s legacy of innovation and performance.

Specifications

Car - Model Type

Car Type: Monster Truck
Age Requirement: Age 14+
Skill Level: Intermediate
Completion Level: RTR - Ready To Run
Assembly Time: No Assembly Required
Drive Train: 4WD - Shaft Driven
Power System: 4S / 2S / 3S Motor Type: Brushless
Recommended Environment: All Terrain
Top Speed (km/h): 80

Car - Dimensions

Model Scale: 1/10 Scale
Length (mm): 515
Height (mm): 182
Wheelbase (mm): 327
Track Front (mm): 390
Track Rear (mm): 388
Ground Clearance (mm): 55
Weight (g) - No Battery: 4000
Battery Compartment LxWxH (mm): 161 x 51 x 50
Shock Dia. ø (mm): 19
Front Shock Length (mm): 106
Rear Shock Length (mm): 133
Rim Dia. ø (mm): 82
Rim Width (mm): 57
Tire Dia. ø (mm): 133
Tire Width (mm): 69

Car - Electronics

Motor: Kuron 725 - 2150KV - 2-4S (Included)
Power Battery: Not Included
Radio: TC - CT-2S 2.4GHz (Included)
Servo: CR-7225 - 25Kg Torque (Included)
Speed Control: TC - Torox 135 2-4S (Included)
Charger: Not Included

Car - Tech Details

Wheel Adapter: 17 mm Hex Adapter
Bearings: Full Ball Bearings - Rubber Shielded
Differentials: 3 x Gear Differentials
Front Suspension Type: Independent - Pillow Ball Type
Rear Suspension Type: Independent - Wishbones
Gear Pitch: MOD 1.0
Spur Gear (T): 52
Motor Pinion (T): 13
Internal Drive Ratio: 3.31
Overall Drive Ratio: 13.23
Shock Type: Oil Filled Composite Shocks - Coil Over Springs

Car - Materials

Bevel Gear: Pinion Steel: Powder Metallurgy Casting
Chassis: 3mm - Aluminium 6061-T6 - Colour Anodised
Chassis Braces: Molded Composite
Differential Centre: Molded Composite
Differential FR - RE: Molded Composite Case
Outdrives: Hardened Steel
Lower Arm Holders: 4mm 6061-T6 Aluminium + Composite
Shock Tower - Front: Molded Composite Shock Tower
Shock Tower - Rear: Molded Composite Shock Tower
Motor pinion: Precision CNC Machined - Hardened Steel
Spur Gear: Precision CNC Machined - Hardened Steel
Bodyshell: Polycarbonate - Painted, Decalled and Trimmed

• Brand: Corally
• Part No: C-00292
• Scale: 1:10
• Build Level: Assembled (RTR)
• Power Source: Electric - Brushless
• Vehicle Type: Monster Truck
• Surface Type: Off Road
