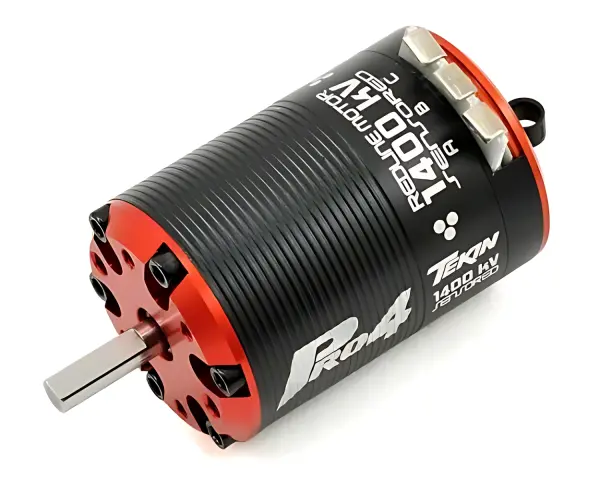

Tekin Pro4 1400kV 540 5mm Shaft Brushless Motor - TT2509

The Tekin Pro4 BL 6D 1400kV 540 brushless motor (TT2509) is engineered for the demands of 4 Wheel Drive Short Course performance. Borrowing proven architecture from Tekin’s T8 1/8th scale platform, this 4-pole, 12-slot design delivers the torque and smooth, controllable power delivery that 4x4 short course trucks require. The 1400kV wind is designed to complement 2S–6S LiPo power systems, offering a broad setup window for varied tracks and conditions.

Built for efficiency and durability, the Pro4 features a CNC-machined 6061-T6 aluminium heatsink can to help manage temperatures, neodymium sintered magnets, and high-purity copper windings for maximum energy conversion. High RPM ABEC5 oversized bearings support the rotor for smooth running and longevity, while the rebuildable construction makes routine maintenance straightforward. A dual-plug sensor wire harness ensures easy integration with both sensored and sensorless systems, and the 5mm shaft provides robust drivetrain engagement.

Features

• 4-pole, 12-slot high-torque motor design
• CNC machined 6061-T6 billet aluminium heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High-purity copper windings maximise efficiency
• Precision engineered for maximum energy conversion
• Dual-plug sensor wire harness for use with sensored and sensorless systems
• High RPM ABEC5 oversized bearings

Specifications

• Motor length: 2.1" (52.9mm)
• Diameter: 1.4" (35.8mm)
• Shaft: 0.60 x 0.196" (15.3 x 5mm)
• Weight: 6.75oz (193g)
• Voltage: 2S–6S (7.4V–22.2V)
• kV: 1,400
• Rotor: 18.5mm
