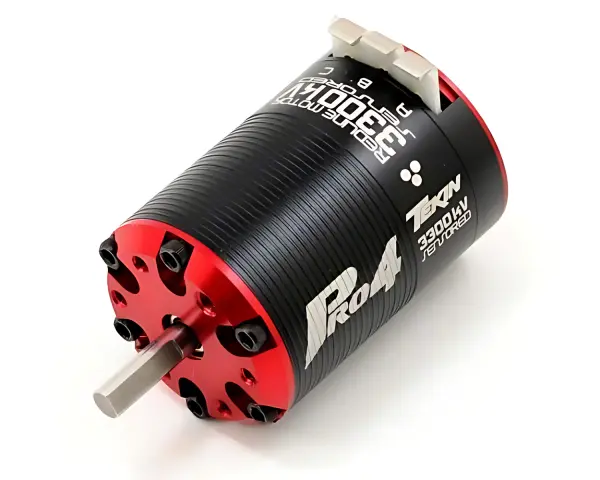

Tekin Pro4 BL Motor 3300kv 5mm

Built for 1/10 4x4 short course performance, the Tekin Pro4 BL Motor 3300KV 5mm (TT2502) delivers strong, smooth power from a compact, rebuildable package. Drawing on Tekin’s T8 1/8-scale engineering, this 4-pole, 12-slot sensored brushless motor provides high torque and excellent efficiency for 2S–3S LiPo setups. A CNC-machined 6061-T6 billet aluminium heatsink can, neodymium sintered magnets and high-purity copper windings help maintain consistent performance, while oversized ABEC5 bearings support high RPM reliability. The dual-plug sensor harness enables use with sensored or sensorless systems, and the 5 mm shaft suits heavy-duty drivetrains. Designed to be paired with the Tekin RX8 Electronic Speed Control.

Features

• 4-pole, 12-slot high-torque motor design
• CNC-machined 6061-T6 billet aluminium heatsink can
• Neodymium sintered magnets
• Rebuildable design
• High-purity copper windings for maximised efficiency
• Precision engineered for maximum energy conversion
• Dual-plug sensor wire harness for use with sensored or sensorless systems
• High RPM ABEC5 oversized bearings
• 3300KV rating with 5 mm shaft

Technical Specifications

• Weight: 193 g (6.75 oz)
• Shaft dimensions: 15.3 mm length x 5 mm diameter (.60 in x .196 in)
• Motor diameter: 35.8 mm (1.4 in)
• Motor length: 52.9 mm (2.1 in)
• Bearing dimensions: Front 5x14x5 mm, Rear 5x11x5 mm

Suggested Compatibility

• 1/10 4x4 short course trucks running 2S or 3S LiPo power (suggested compatibility)
• Designed to be paired with the Tekin RX8 Electronic Speed Control
