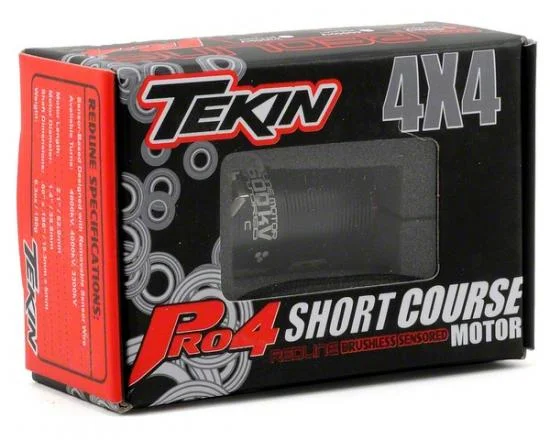

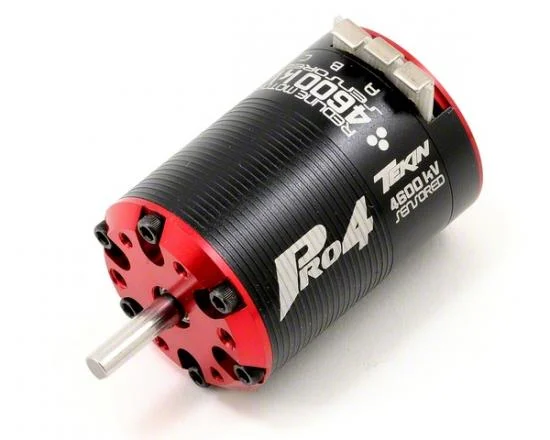

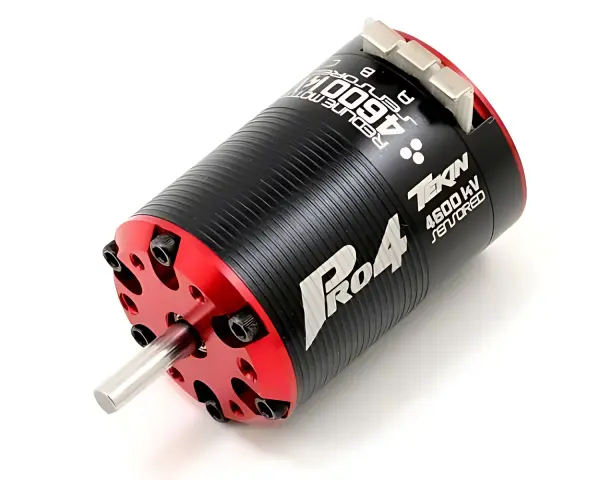

Tekin Pro4 BL Motor 4600kv 5mm

The Tekin Pro4 BL Motor 4600KV 5mm (TT2500) raises the bar for 1/10 4WD short course performance. Drawing on the proven T8 1/8 scale lineage, this 4‑pole, 12‑slot design delivers the smooth, high-torque power delivery demanded by modern short course trucks. A CNC‑machined 6061‑T6 aluminium heatsink can, neodymium sintered magnets and high‑purity copper windings work together to maximise efficiency and thermal performance, while a rebuildable architecture keeps you on pace season after season.

Key Features

• 4‑pole, 12‑slot high‑torque motor design
• CNC‑machined 6061‑T6 billet aluminium heatsink can
• Neodymium sintered magnets
• High‑purity copper windings for maximum efficiency
• Rebuildable design
• High‑RPM, ABEC‑5 oversized bearings
• Dual‑plug sensor wire harness
• KV range tailored for 2S–3S LiPo power systems
• Designed to be paired with the Tekin RX8 Electronic Speed Control

Specifications

• KV: 4600KV
• Shaft: 5mm diameter, 15.3mm length
• Weight: 193g (6.75oz)
• Motor diameter: 35.8mm
• Motor length: 52.9mm
• Bearings: Front 5x14x5mm; Rear 5x11x5mm

Suggested Compatibility

• 1/10 4WD short course trucks
• 2S–3S LiPo power systems
• Tekin RX8 Electronic Speed Control
