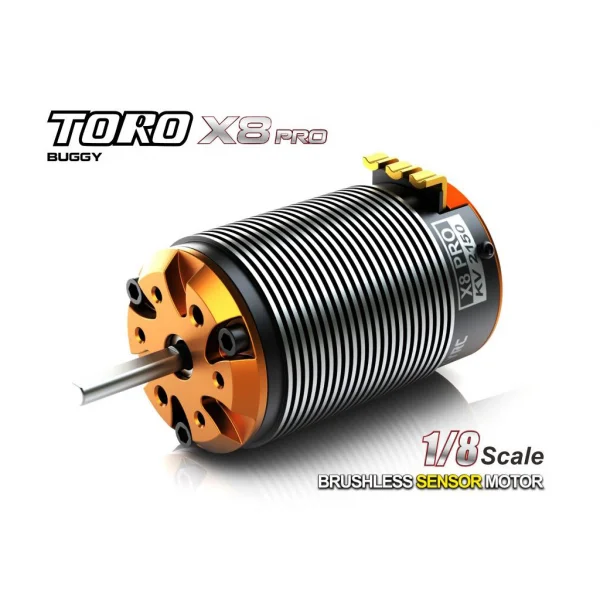

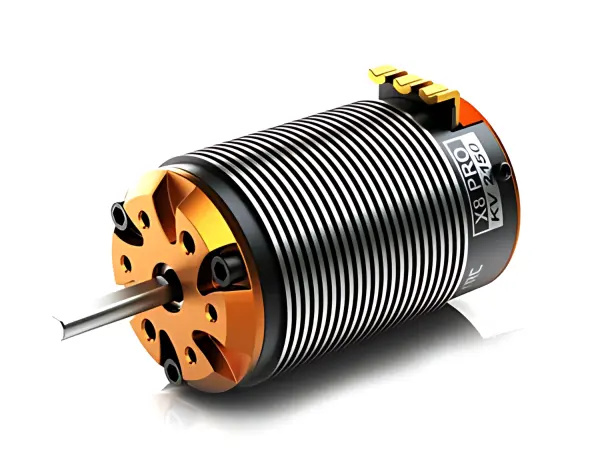

TORO 1:8 X8 Pro 1Y Sensorless BL Motor

The SkyRC TORO X8 Pro 1Y is a competition-grade 1/8 scale brushless motor delivering 2350KV and up to 2400W of power for strong torque and rapid acceleration. Built around a 12-slot stator and 4-pole design with a reinforced 5mm shaft, it pairs durability with smooth, controllable performance. A CNC machined T6 billet aluminium heatsink can helps manage temperatures, while it supports both sensored and sensorless speed controllers for flexible setup options. Part number SCH-SK-400009-11.

Features

• Sensor motor for 1/8 scale competition
• CNC machined T6 billet aluminium heatsink can
• 12-slot stator and 4-pole, high-torque design
• Neodymium sintered magnet rotor
• Low resistance copper solder tabs
• High RPM and oversized bearings
• High purity copper windings for maximum efficiency
• Ultra-thin 0.2mm laminations stator
• Super high conductance silicon wires
• Strength reinforced 5mm shaft
• Replaceable rotor
• Supports both sensored and sensorless speed controllers

Specifications

• KV: 2350
• Power: 2400W
• Max voltage: 19V
• Max current: 126A
• Internal resistance: 0.0062 ohm
• Max RPM: 45,000
• Turns: 1Y
• Weight: 350g
• Shaft diameter: 5mm
• Stator: 12-slot
• Poles: 4
