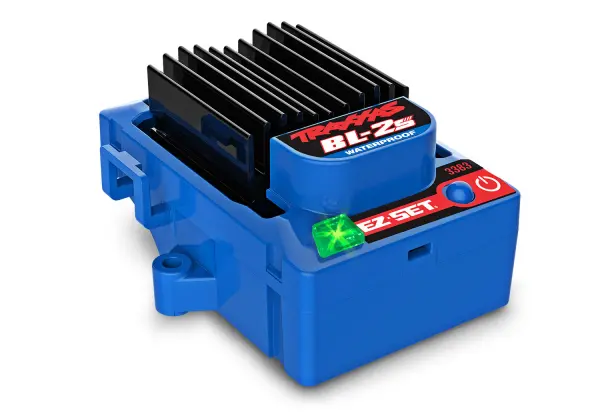

Traxxas BL-2S Brushless Electronic Speed Control (TRX3383)

BL-2s Brushless Electronic Speed Control

The waterproof BL-2s speed control delivers all the benefits of brushless technology with the safety and convenience features you expect fromTraxxas. Built-in low-voltage detection, thermal shutdown protection and EZ-Set one button programming make the BL-2s reliable and easy to operate.

BL-2s Waterproof ESC Specifications:

• Input Voltage:
  NiMH 6-7 cells (7.2 - 8.4V)
  LiPo 2 cell (7.4V)
• Case Size:
  39 x 59 x 31mm (WxDxH)
• Weight:
  87g
• Reverse Delay:
  Yes, with lockout
• BEC Voltage:
  6.0 volts
• BEC Current:
  3 amps
• Input Wire:
  16 gauge
• Motor Connectors:
  Quick Connect Motor Plug
• Input Harness Wire:
  26 gauge
• Low Voltage Detection:
  2-stage indicators, switchable (on or off)
• Thermal Protection:
  2-stage thermal shutdown
• Profile Selection:
  Sport Mode: (100% Fwd, 100% Brake, 100% Rev)
  Race Mode: (100% Fwd, 100% Brake, No Rev)
  Training Mode: 50% Fwd, 100% Brake, 50% Rev)
• Single-Button Setup:
  Traxxas EZ-Set
• Battery Input Connector:
  Traxxas High-Current Connector
• Motor Types:
  Brushless
• Accessory Port:
  Auxiliary fan

Traxxas BL-2S Brushless Electronic Speed Control Key Features:

• Fully waterproof
• Built-in two-stage low voltage detection for lithium polymer (LiPo) batteries
• NiMH battery packs 6-7 cells (7.2 - 8.4 V) or 2-cell LiPo battery packs (7.4 V)
• Patented Training Mode reduces the power output by 50% for new or younger drivers. When they're ready, simply change profiles to unleash full-throttle action.
• EZ-Set one-button setup operates and programs just like other Traxxas speed controls
• Three programmable drive profiles: Sport Mode Fwd / Brake / Rev - - Race Mode Fwd / Brake - - Training Mode 50% Fwd / Brake / 50% Rev
• Multi-colour status LED
• Two-stage thermal shutdown protection protects the BL-2s from overheating
• Large aluminium heatsink dissipates heat
• Built-in auxiliary fan output
• Keyed motor connector

Traxxas BL-2S Brushless Electronic Speed Control Tech Specs:

• Weight: 263.09g / 9.28oz
• Shipping Weight: 0.17kg / 0.37lbs
• Product Height: 121mm / 4.75in
• Product Width: 51mm / 2in
• Product Length: 216mm / 8.5in

• Connector: Traxxas
• Scale: 01:10
• Age Recommendation: 14+
• Colour: Blue
• Material: Plastic
• Power Source: Electric

• Brand: Traxxas
• Part No: TRX3383
• Barcode: 020334015464
• Motor Type: Brushless
• LiPo Compatible: Yes
