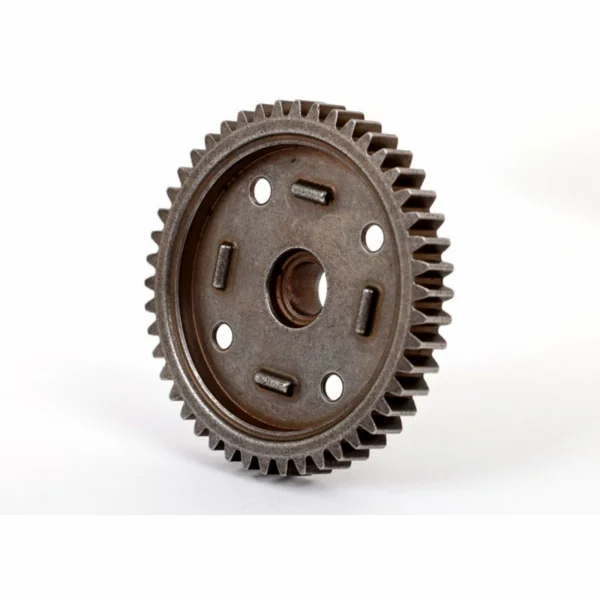

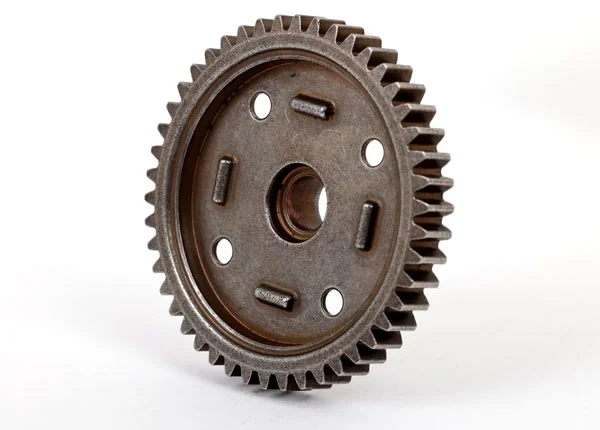

Traxxas Sledge Steel Spur Gear - 46T - 1.0 Mod Metric Pitch

Brand: Traxxas

Part No: TRX9651

£14.01 ~~RRP £14.75~~

In Stock: Usually ships same day

Request Price Match Ask a Question Write a Review

The Traxxas TRX9651 46-tooth steel spur gear uses a 1.0 metric pitch for precise, durable drivetrain performance. It enables fine tuning of gear ratios to balance acceleration and top speed for different running conditions. Consult your owner’s manual for recommended gearing options for your specific model.

Suggested Compatibility

Traxxas Sledge centre differential

Tech Specs

Teeth: 46T
Pitch: 1.0 module (metric)
Material: Steel
Colour: Grey
Weight: 47.63 g (1.68 oz)
Product Length: 77 mm (3.05 in)
Product Height: 66 mm (2.6 in)
Product Width: 19 mm (0.75 in)
Shipping Weight: 0.05 kg (0.11 lb)
Age Recommendation: 14+

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

46-tooth steel spur gear (1.0 metric pitch) fits Sledge centre differential. Traxxas spur gears let you fine-tune the performance of your Traxxas model. Changing gear ratios can help balance acceleration and top speed for different running conditions. Please consult your owner’s manual for more information on recommended gearing options for your specific model.

Traxxas Sledge Steel Spur Gear - 46T - 1.0 Mod Metric Pitch Tech Specs:

Weight: 47.63g / 1.68oz
Shipping Weight: 0.05kg / 0.11lbs
Product Height: 66mm / 2.6in
Product Width: 19mm / 0.75in
Product Length: 77mm / 3.05in

Age Recommendation: 14+
Colour: Grey
Material: Steel

Key Info:

Brand: Traxxas
Part No: TRX9651
Barcode: 020334965103

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Can you let me know what pinion I should be getting with each spur please? Traxxas Sledge

Craig Woolliscroft / 11th July 2022

MOTORS AND GEARING
One of the more significant advantages to your model’s
transmission is the wide range of available gear ratios. Changing
the gearing allows you to fine tune the speed of the model and
control the temperatures of the battery pack and motor. Use a
lower gear ratio (numerically larger) to reduce current draw and
temperatures. Use a higher gear (numerically lower) to increase top
speed. Use the following formula to calculate the overall ratio for
combinations not listed on the gear chart:
When using higher gear ratios, it is important to monitor the
temperatures of the battery, motor, and speed control. If the
battery is extremely hot (150°F) and/or the motor is too hot to
touch (180°F), your model is probably over-geared and drawing
too much current. This temperature test assumes that the model is
close to factory stock weight and operates freely with no excessive
friction, dragging, or binding, and the battery is fully charged and
in good condition.
This model is equipped with a 2000Kv brushless motor. The gear
combination that comes stock on each model provides good overall
acceleration and top speed. If you want more top speed and less
acceleration, install optional high speed gearing (more teeth). If you
want more acceleration and less top speed, use a smaller optional
pinion gear. Optional gearing not included.
Note: High speed gearing is intended for high-speed running on
hard surfaces and is not recommended for off-road or repetitive
starting and stopping. For this type of driving, smaller pinion
gears are recommended to reduce load on the motor.

Steve W @ Wheelspin Models
