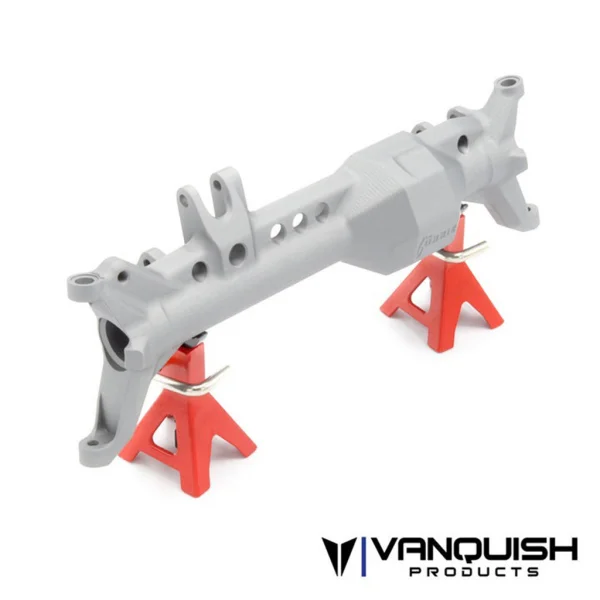

Vanquish Currie F10 Portal Aluminium Front Axle Clr

The Vanquish Products Currie F10 Aluminium Front Axle Housing (SCH‑VPS08616) offers a premium upgrade for F10 portal front axles. Machined in the USA from high‑quality, domestically produced aluminium on Matsuura true 5‑axis CNC machines, it matches the external dimensions of the moulded F10 housing to maximise clearance while enabling reuse of your original F10 axle components.

Engineered with performance in mind, this housing integrates a full‑width axle truss tied into the upper link and panhard mount, a 20 degree caster angle, and built‑in steering bump stops set to 49 degrees. A tucked C‑hub design improves knuckle clearance by moving the lower portion of the C up inside the knuckle.

Features

• Machined in the USA from high‑quality, domestically produced aluminium
• Built to the same outside dimensions as the moulded F10 housing for maximum clearance
• 20 degree caster angle for confident tracking
• Built‑in steering bump stops at 49 degrees
• Full axle truss tied into upper link and panhard mount spanning the full axle width
• Tucked C design for added knuckle clearance

What’s Included

• 1x F10 front axle housing

Suggested Compatibility

• VS4‑10 Phoenix Portal Kit (F10 axles)
• VPS08600 F10 Front Axle Set

Notes

• Replaces the plastic axle housing from VPS09007 and VPS08600; original bearings, hardware, third member, bearing retainers, gears, knuckles and axle shafts are reused.
• Not compatible with brass tubes used in moulded housings.
• Refer to the VPS09007 or VPS08600 instruction manuals for assembly guidance.
