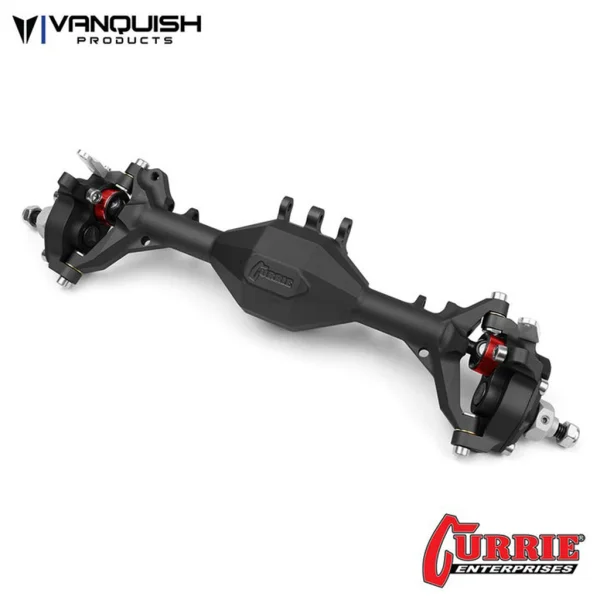

Vanquish Currie Portal F9 SCX10-II Front Axle Black
Brand: Vanquish
Part No: SCH-VPS08350
£313.49
RRP £329.99
Out Of Stock
Request Stock NotificationThe Vanquish Currie Portal F9 Front Axle (Black), part number SCH-VPS08350, brings true portal performance to SCX10-II based builds. The integrated portal boxes deliver a 13mm increase in ground clearance, equivalent to running a tyre over 1 inch taller, while the portal gear reduction of 1.67:1 (18/30) reduces drivetrain load. An optional 1.4:1 overdrive (20/28), recommended for the front axle, is available for tailored handling.
Designed around the Currie F9 housing, this axle package includes precision-machined internals, robust chromoly components, and thoughtful mounting features for strength, durability and steering precision. With a hex-to-hex width of 7.66 inches and an overall axle reduction of 6.26:1 using the stock portal ratio, it offers a planted, tractable feel on technical terrain.
Key Features
- Portal gear reduction of 1.67:1; optional 1.4:1 overdrive for the front axle
- 13mm increase in ground clearance under the axle centre
- Included Vanquish AR44 machined gear set and chromoly spool
- Hex-to-hex width: 7.66 inches (approx. 5mm wider than a stock AR44 with narrow hex)
- Offset C-hubs machined into the housing for strength, clearance and scale appearance
- Replaceable chromoly threaded inserts at knuckle and C-hub
- Brass knuckle bushings (AR60 size) for added durability
- Chromoly AR60-size VVD axle shafts (preassembled) and chromoly stub shafts with 6mm drive pin tapering to 5mm thread
- Aluminium 12mm hex with set screw
- Adjustable steering stop integrated into the knuckle
- Double shear shock mounts and integrated panhard mount
- Upper link mounts built into the third member with increased clearance for more up-travel
- Complete Fast Eddy Bearings kit and One Piece Bearing Retainers (patent pending)
- Licensed by Currie Enterprises
What’s Included
- All parts required to assemble a complete front portal axle
- Vanquish AR44 machined gear set and chromoly spool
- Preassembled chromoly AR60-size VVD axle shafts and chromoly stub shafts
- Complete Fast Eddy Bearings kit
- Aluminium 12mm hex with set screw
- One Piece Bearing Retainers
Suggested Compatibility
- Axial SCX10-II vehicles using AR44 axles and stock SCX10-II linkage
- Stock SCX10-II chassis-mounted servo or Vanquish F9 servo-on-axle mount
Setup Notes
- Requires a 350 SLW hub or greater on Vanquish 1.9 wheels; Incision wheels require a #4 hub or greater. Wheel offsets from other brands may vary.
- Axles must be used in pairs; do not run a front portal axle without a matching rear portal axle.
- Not compatible with the VS4-10 Pro or with the VFD transmission.
Secure Payments
Secured by Stripe
Currie F9 Portal Front Axle for SCX10-II based vehicles. The F9 Portal axles create extreme amounts of ground clearance under the center of your axle, increasing the clearance by 1/2"+ (13mm). This provides the equivalent of a tire over 1 inch taller than what is on your vehicle. The advantage of
Currie F9 Portal Front Axle for SCX10-II based vehicles.
The F9 Portal axles create extreme amounts of ground clearance under the center of your axle, increasing the clearance by 1/2"+ (13mm). This provides the equivalent of a tire over 1 inch taller than what is on your vehicle. The advantage of the Vanquish Currie F9 Portals is the gear reduction inside the portal (1.67:1) which can be adjusted with optional gear sets (1.4:1 Overdrive). By adding reduction at the portal, less torque is transferred through the other upstream components in the drivetrain. These axles are a direct replacement to any Axial AR44 axle, using all stock links.
These axles come with all parts needed to assemble a full front axle.
Features
• Portal box built into the included knuckle with bolt on high steer arm for double shear mounting
• Gear reduction in the portal of 1.67:1 (18/30), Optional Overdrive Ratio of 1.4:1 (20/28) recommended for use in front axle only.
• Included Vanquish AR44 machined gear set
• Overall axle reduction of 6.26:1 with stock portal ratio
• 13mm increase in ground clearance
• Specifically design offset C-hubs is machined into the housing for strength, durability, clearance and scale appearance
• Hex to hex width of 7.66 inches, only roughly 5mm wider than a stock AR44 axle with a narrow hex
• Replaceable Chromoly threaded inserts used at knuckle and C-hub to ensure a stripped thread doesn't ruin your investment
• Brass knuckle bushing from the AR60 axles are used in place of SCX10-II sized for more durability.
• Chromoly AR60 size VVD axle shafts come preassembled
• Chromoly stub shafts with 6mm design at the drive pin which tapers down to a 5mm thread for ultimate strength
• Chromoly spool
• Aluminum 12mm hex with set screw
• Compatible with stock SCX10-II Chassis mounted servo or F9 Servo on axle mount
• Uses all SCX10-II linkage
• Adjustable steering stop integrated into knuckle
• Complete Fast Eddy Bearings kit
• Licensed by Currie Enterprises
• Comes with One Piece Bearing Retainers (Patent Pending)
• Double shear shock mounts
• Integrated Panhard mount
• Upper link mounts built into third member
• Increased upper link clearance for more suspension up travel ability.
Requires the use of a 350 SLW hub or greater on Vanquish 1.9 wheels, Incision wheels will require a #4 or greater. Other wheel manufacturers offsets will vary. Axles must be used in pairs, you cannot run a front portal axle without a rear and vice versa. This product is not compatible with the VS4-10 Pro, or in combination with the VFD transmission.
Key Info:
- Brand: Vanquish
- Part No: SCH-VPS08350
- Barcode: 5051294192518
