Vanquish F10 Straight Rear Axle Set

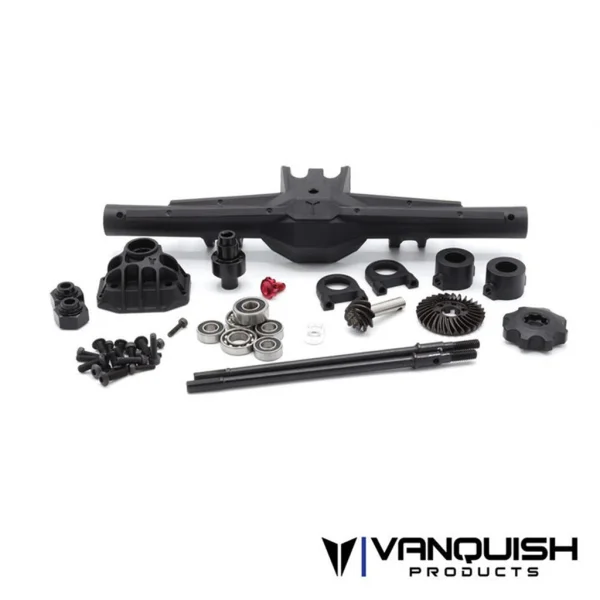

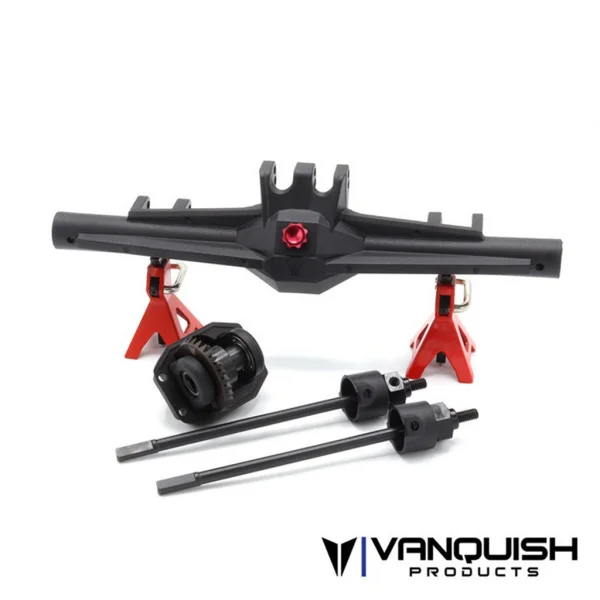

The Vanquish F10 Straight Rear Axle Set draws on years of axle design experience to deliver a rigid, reliable solution for scale trail and crawler builds. Its plastic moulded housing integrates a truss to tie both ends together, while a scale removable third member and a red anodised rear fill cap add functional detail. Part number SCH-VPS08603 (VPS08603) brings proven Vanquish engineering to an ultra‑robust rear axle package.

Key Features

• Moulded plastic axle housing with integrated truss
• Two upper link mount tuning positions built into the housing
• High‑pinion hypoid machined axle gears 30/8 (VPS08330)
• 6‑bolt ring gear and spool
• One‑piece moulded bearing retainers
• Adjustable lower shock mounting position (S8E Offset Pivot Ball IRC00509)
• Chromoly axle shafts
• Scale removable third member
• Machined aluminium red anodised rear fill cap with moulded install tool

Notes and Suggested Compatibility

• Optional lower ratio ring and pinion (8/33) available: VPS08331
• Suggested compatibility includes Vanquish SLW and Incision hubs
• Suggested compatibility with Phoenix, Ultra and Pro platforms, and SCX10 II bent steering tie rod
• Incision 0.280" width pivot ball compatible
• Use IRC00509 S8E lower shock mount offset pivot ball at the shock mount locations
• Does not include link mounting hardware

Suggested Pairings

• VPS10130 VS4‑10 Chassis Kit
• IRC00303 VS4‑10 F10 Link Set
• VPS0152 VFD Transmission Kit
• VPS10200 VFD Twin Transmission Kit

Engineered for durability and precise gear mesh, the F10 Straight Rear Axle Set is a solid foundation for high‑performance RC crawlers seeking improved ground clearance from high‑pinion gears, dependable chromoly shafts and practical mounting options.
