Vanquish F10T Aluminium Front Axle Housing - Black
Brand: Vanquish
Part No: SCH-VPS08630
£142.49
RRP £149.99
Out of stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (2)
Show all 2 models
Customers Also Buy
Popular with customers who buy products like the Vanquish F10T Aluminium Front Axle Housing - Black
Description
The Vanquish F10T Aluminium Front Axle Housing - Black (part SCH-VPS08630) is a precision-machined front axle housing featuring an offset differential, removable third member and one-piece bearing retainers for strength and serviceability. Integrated inner C-hubs and an upper link mount enhance scale realism while providing a robust foundation for your crawler build.
Key Features
- Machined in the USA
- Made from high quality, domestically produced aluminium
- Designed for use with chromoly offset VDI universal axle shafts
- Includes one-piece bearing retainers
- Integrated C-hub design for a more scale appearance

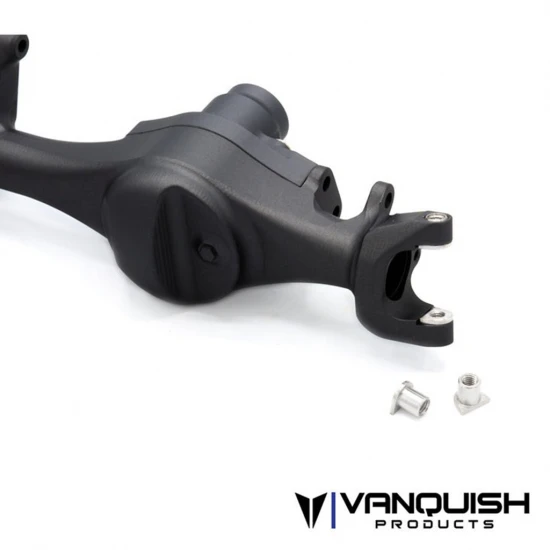

- Replaceable threaded chromoly steel C-hub inserts for kingpin screws
- Double shear shock mounts for S8E offset pivot balls, allowing more shock tuning adjustment
- Integrated panhard mount
- Upper link mount built into the housing for added strength and scale detail
- Offset front differential housing with removable third member
- F10T axles use Vanquish Products AR44 gear sets and spools
What's Included
- 1x F10T Front Offset Housing
- 2x Bearing Retainers
- 1x F10T Third Member
- 4x Threaded Inserts
- Axle housing hardware
- Instructions
Not Included
- Hexes, hex pins, bearings, kingpins, knuckles, ring and pinion, or locker
- VDI universal axle shafts (short and long side) PN: IRC00181
Required Bearings
- 2x 7x14x3.5
- 1x 5x14x5
- 3x 5x11x4
Suggested Compatibility
- Vanquish VS4-10 kits with straight axles (Origin, Pro and Phoenix – Straight Axle version)
- Vanquish VS4-10 Chassis Kit (PN VPS10130)
- VDI universal axle shafts (short and long side) PN IRC00181
- Incision S8E 90mm Shocks (offset pivot ball at shock mounting location) PN IRC00501
- Incision Rod Ends and Pivot Balls at link locations (.280" width pivot balls)
- Vanquish Products 6-hole AR44 Gear Set PN VPS08330 or VPS08331
- Vanquish Products 6-hole AR44 Spool PN VPS08070
Notes
- Designed around the Vanquish VS4-10 chassis; the offset pumpkin requires additional clearance versus centred housings and may not suit many other chassis designs.
- Not for use with Vanquish Products Brass Pivot Balls (.300" width).
- Due to the AR44 gear design, proper shimming of the pinion gear may be required.
Secure Payments
Secured by Stripe
Specifications
Offset F10T Front Axle for VS4-10 based vehicles. The F10T front axle features an offset front differential housing, removable third member, and one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are
Offset F10T Front Axle for VS4-10 based vehicles.
The F10T front axle features an offset front differential housing, removable third member, and one-piece bearing retainers to create an incredibly scale and durable front axle assembly. Integrated inner c-hubs create an unmatched scale look and are strengthened to provide the most durable axle housing possible, with easily replaceable chromoly threaded inserts for the knuckle kingpin screws. F10T axles use Vanquish Products AR44 gear sets and spools.
Recommended use with the following:
• Vanquish VS4-10 Kits equipped with straight axles such as the Origin, Pro and Phoenix (Straight Axle version)
• Vanquish VS4-10 Chassis Kit. PN VPS10130*
• VDI universal axle shafts (short and long side) PN: IRC00181
• Incision S8E 90mm Shocks (Offset pivot ball at shock mounting location) PN IRC00501.
• Incision Rod Ends and Pivot Balls at link locations (.280" width pivot balls)**
• Vanquish Products 6-Hole AR44 Gear set. PN VPS08330 or VPS08331
• Vanquish Products 6-hole AR44 Spool. PN VPS08070.
Features:
• Machined in the USA
• Made from high quality domestic produced aluminum
• Designed for use with Chromoly offset VDI universal axle shafts
• Comes with One Piece Bearing Retainers
• Integrated C-hub design allows for a more scale appearance
• Threaded Chromoly Steel C-hub Insert provides stronger threads that are also replaceable
• Double shear shock mounts for S8E offset pivot balls allowing for more shock tuning adjustment
• Integrated Panhard mount
• Upper link mount built into the housing for added scale appearance and strength.
Includes the following:
• 1pc F10T Front Offset Housing
• 2pcs Bearing Retainers
• 1pc F10T Third Member
• 4pc Threaded Inserts
• Axle Housing hardware
• Instructions.
Does not include the following:
• hexes, hex pins, bearings, kingpin, knuckles, ring and pinion or locker
• VDI universal axle shafts (short and long side) PN: IRC00181.
Required Bearings List:
• 2pc 7x14x3.5
• 1pc 5x14x5
• 3pc 5x11x4
*These axles are for use with a Vanquish Products VS4-10 Chassis. Clearances of the offset pumpkin require additional clearances compared to centered housings and will not function properly under many other chassis designs.
**Not for use with Vanquish Products Brass Pivot Balls (.300" width)
****Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.
Key Info:
- Brand: Vanquish
- Part No: SCH-VPS08630
- Barcode: 5051294192761
