Vanquish Hurtz Dig V2 Red

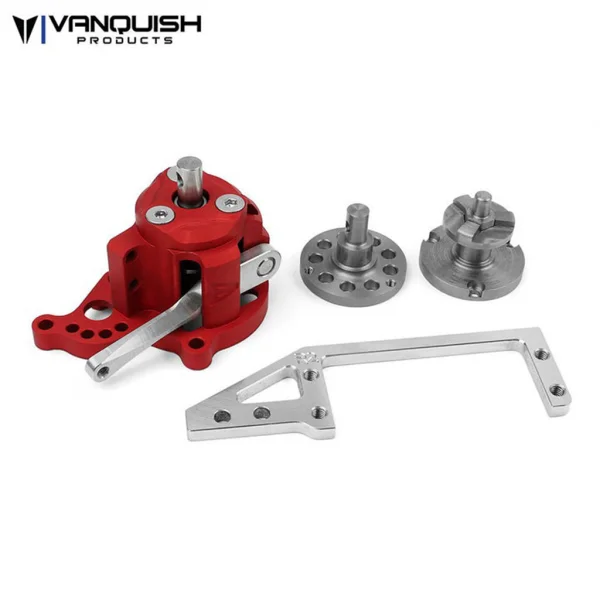

Vanquish Products Aluminum Hurtz Shifter 3 Position Dig for Axial 3-Gear Transmissions.
Vanquish Products Aluminum Hurtz Shifter 3 Position Dig for Axial 3-Gear Transmissions.
Updated dig unit was designed to increase the capability of your vehicle while maintaining maximum strength
Compatible with Axial SCX10, SCX10-II RTR and AX10. May also be used in Wraith by changing the transmission case
Rear output is bearing supported for better driveline efficiency and cross drilled to work with thru pin style driveshafts
Rear output does not slide in and out, so driveshaft length is easier to manage
Servo mount is attached to dig case for simple installation
All drive parts are made from high quality and chromoly steel
Total shifter travel needed to shift to all three positions is 0.73 inches, a 24mm servo horn is recommended
Servo mount can use most standard size servos*
The lever design of the shifter means that you do not need an expensive servo to reliably operate this unit**
V2 design works with stock Axial 3-gear transmission cases as well as any Vanquish Products SCX10 transmission housing***
* Servo case designs and offsets vary by manufacturer, Futaba, Hitec and Tactic servos have been tested to fit but not every model can be verified
** A radio with an open auxiliary channel and programmable end points is needed to ensure that the dig unit works properly and that your servo will not overheat
*** The Hurtz dig will mount onto any Axial 3 gear transmission case that uses a bolt on metal motor plate. Does not work with LCX Grey Axial transmission housing.
