Vanquish Incision Series 2 Light Kit

The Vanquish Incision Series 2 Light Kit (SCH-IRC00451) brings bright, reliable illumination to your scale crawler with dedicated headlights, red tail lights, and white inner fender rock lights, all managed by an included LED controller. Designed with high-powered LEDs and integrated heat sinks for the front light buckets, this kit offers manual on/off control or additional on/off switching via an auxiliary receiver channel. Headlights are powered via a 2–3S LiPo balance plug on the controller, while auxiliary control and red LEDs receive power from the RX plug.

Features

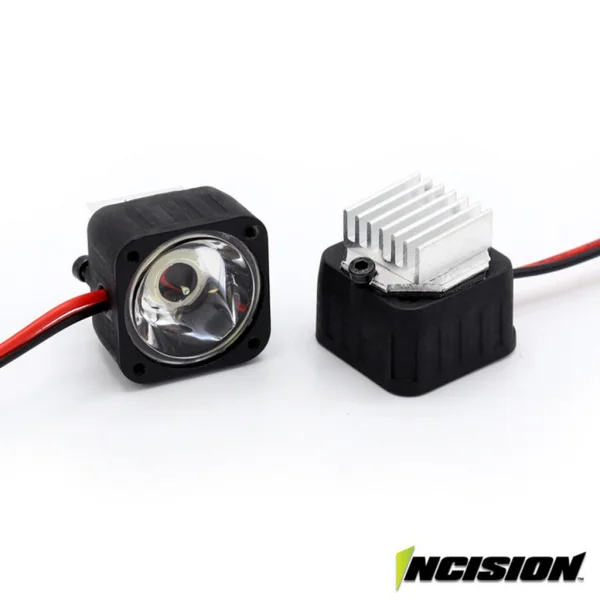

• Moulded front light buckets with high-powered LEDs and heatsinks
• Red LED tail lights
• White LED inner fender rock lights
• LED light controller with manual on/off and auxiliary channel control
• Headlights powered via 2–3S LiPo balance plug; auxiliary and taillights via RX plug

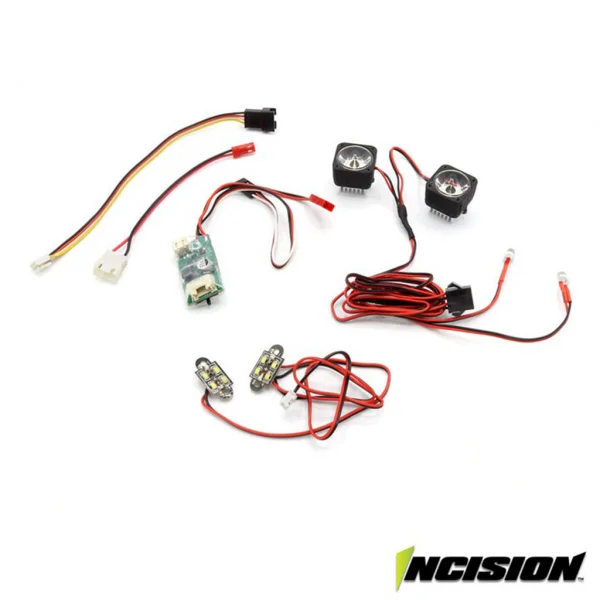

What’s Included

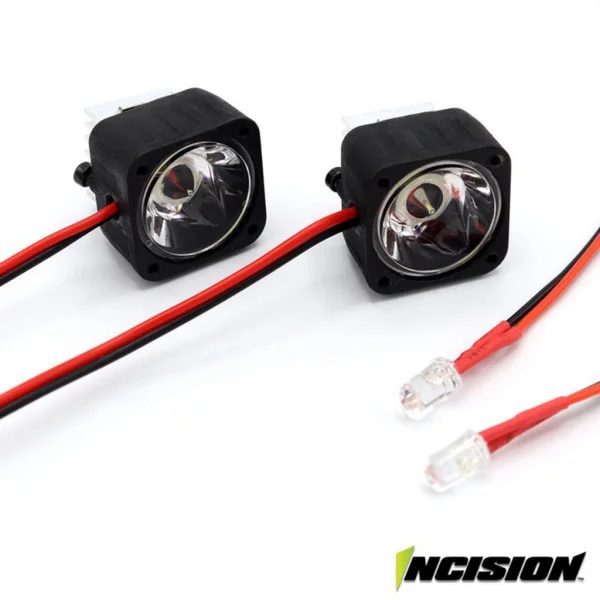

• 2x moulded front LED headlight housings with heat sink
• 2x 5mm red LED tail lights
• 2x PCB LED rock lights for use with VPS10180 Narrow Molded Inner Fenders (VS4-10 Phoenix Chassis)
• 1x LED controller with required power plugs

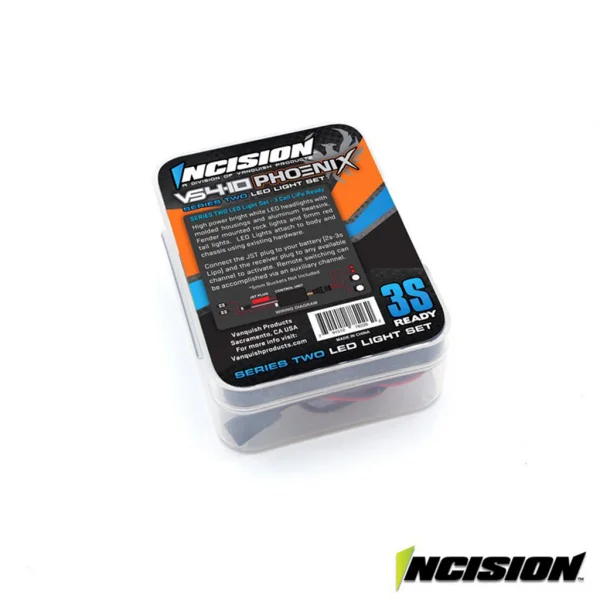

• Nifty parts box

Suggested Compatibility

• Vanquish VS4-10 Phoenix with moulded inner fenders
• VPS10180 Narrow Molded Inner Fenders (VS4-10 Phoenix Chassis)

Installation Overview

• Attach the LED controller and rock lights to the chassis, then route headlight and tail light wiring to the underside of the body.
• Use the black 4‑pin connection plug to allow easy body removal.
• Use the balance plug and JST connections for power, and the RX connection for auxiliary control.
• For full functionality, connect both power sources: the JST/balance plug (headlights and rock lights) and RX Aux (taillights).
• The controller’s three‑position switch selects Off / Aux CH on–off control / On. For transmitter control, place it in the middle position and program a two‑position AUX channel with endpoints at maximum.

Setup Notes For Suggested VS4-10 Phoenix Use

• Remove the stock light buckets from the Phoenix grille and mount the included front light assemblies using the existing 1‑64 hardware.
• Install the red LED tail lights into the stock Phoenix rear LED housings.
• Replace the stock rock light caps in the inner fenders with the supplied PCB LEDs.
• Connect all LED plugs to the light controller, then connect the controller to a 2S or 3S LiPo for headlight power and to the receiver for aux/tail light power.
