Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit
Vanquish VFD Twin Transmission Kit

Vanquish VFD Twin Transmission Kit

Brand: Vanquish

Part No: SCH-VPS10200

£170.99 RRP £179.99
Pre-Order
Request Price Match Ask a Question Write a Review

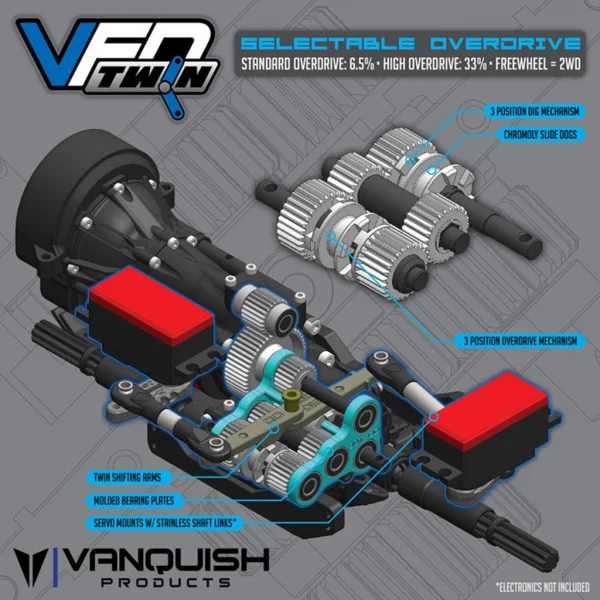

The Vanquish VFD Twin Transmission Kit (VPS10200) evolves the proven VFD platform with patent-pending twin shifting for selectable overdrive and rear dig. Designed to balance performance, scale appearance and durability, the VFD Twin places the motor forward and as low as possible, and is compatible with most 540 brushed and brushless motors. Its twin-shifting transfer case utilises replaceable bearing plates, a brass pivot for the shift arms and chromoly shift slides, delivering smooth, reliable engagement inspired by Vanquish’s Hurtz dig.

Key Features

  • On-the-fly selectable overdrive
  • Standard overdrive: 6.5%
  • Selectable high overdrive: 46%
  • Overdrive neutral position for 2WD (disengages front output)
  • Rear dig with 3 selectable positions
  • Slipper clutch
  • Sintered internal gears
  • Hardened chromoly shafts
  • Moulded VFD Twin extended skid plate for motor protection
  • Full ball bearing transmission
  • Sintered shift arms with brass pivot bushing
  • Chromoly slide dogs for overdrive and dig shifting
  • Scale moulded transmission housing
  • Moulded bearing plates
  • Moulded 6 mm motor plate
  • Moulded spur gear cover
  • 32P 52T spur and 15T steel pinion
  • Silicone dust shields for shift arms

What’s Included

  • Complete transmission
  • Stainless steel shift links and rod ends
  • VFD Twin skid plate (VPS10201)
  • Mounting hardware to skid plate

Suggested Compatibility

  • VPS10130 VS4-10 chassis kit
  • VPS10129 moulded battery and electronics trays
  • Offset front axles such as the F10 Portal or D44

Additional Information

  • Replacement spur gears available: IRC00410, IRC00411
  • Transmission dust shield is not 100% element proof; use the access cover to check for debris and add grease as needed.
  • Overdrive percentages are calculated based on the VS4-10 Phoenix Portal final drive ratios (Percent Difference method).
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

VFD TWIN TRANSMISSION The VFD Twin Transmission (Patent Pending) kit is an evolution of the original VFD. Taking the same balance of performance, scale appearance, strength, and adding industry first features. The VFD Twin comes equipped with selectable overdrive and rear dig. Twin shifting transfer
VFD TWIN TRANSMISSION
The VFD Twin Transmission (Patent Pending) kit is an evolution of the original VFD. Taking the same balance of performance, scale appearance, strength, and adding industry first features. The VFD Twin comes equipped with selectable overdrive and rear dig. Twin shifting transfer case utilizes replaceable bearing plates, a brass pivot for the shift arms, and chromoly shift slides. Borrowing from our proven Hurtz dig, the VFD twin shifting is smooth and reliable. On the fly overdrive shifting from 6.5% to 46% makes an immediate change to the driving characteristics and tuning options. The VFD Twin transmission places the motor forward and as low as possible. Compatible with 540 brushed and brushless motors*
On the fly Selectable Overdrive
Standard Overdrive 6.5%
Selectable High Overdrive 46%
Use Overdrive neutral position for 2WD (disengage front output)
Dig with 3 Positions
Slipper Clutch
Sintered Internal Gears
Hardened Chromoly Shafts
Molded VFD Twin Extended Skid Plate for Motor Protection
Full ball bearing transmission
Sintered Shift arms with Brass pivot shift bushing
Chromoly slide dogs for Overdrive and Dig shifting
Scale Molded Transmission Housing
Molded Bearing Plates
Molded 6mm motor plate
Molded Spur Gear Cover
32P 52T Spur and 15T Steel Pinion
Silicone dust shields for shift arms***

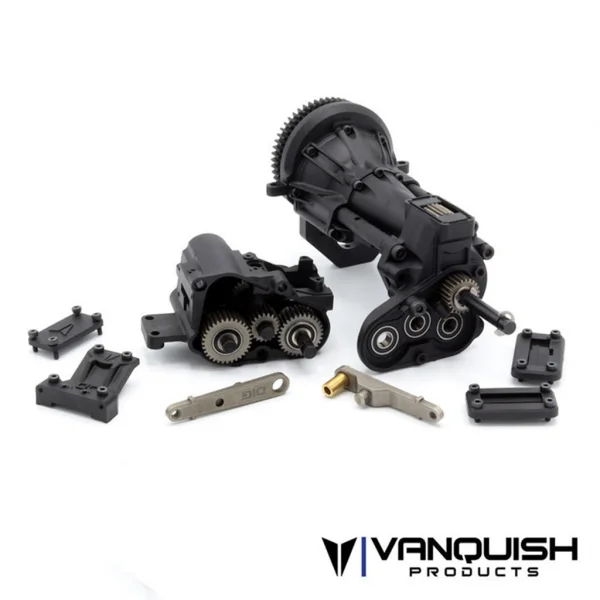

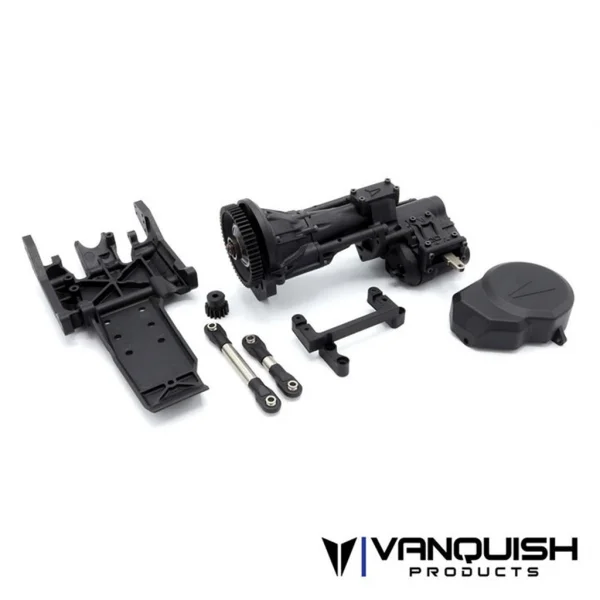

Package Includes:
Complete transmission
Stainless steel shift links and rod ends
VFD Twin Skid plate VPS10201
Mounting hardware to skid plate
Recommended for use with:
VPS10130 VS4-10 Chassis Kit
VPS10129 Molded Battery and Electronic trays
Offset front Axles such as the F10 Portal or D44
Replacement spur gears available: IRC00410, IRC00411
*Fits most 540 brushed and brushless motors
**Patent Pending
*** Transmission dust shield is not 100% element proof. Use access cover to regularly check transmission for debris and add grease as needed.
****Overdrive percentages calculated based on the VS4-10 Phoenix Portal final drive ratios. Overdrive percentages calculated using Percent Difference.

Key Info:
  • Brand: Vanquish
  • Part No: SCH-VPS10200
  • Barcode: 5051294193140
