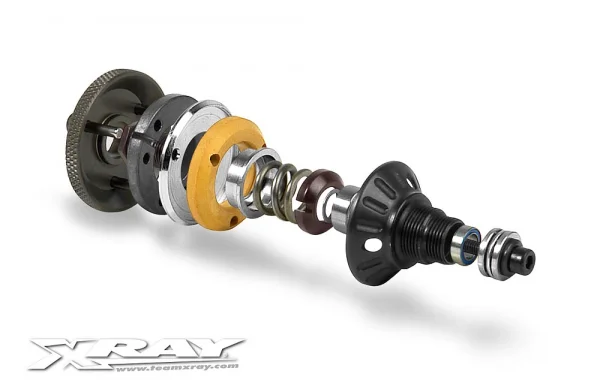

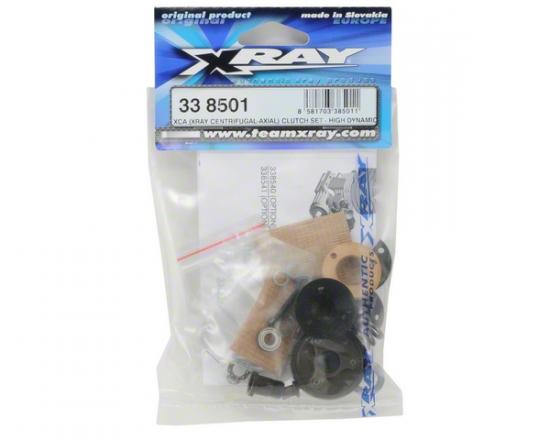

Xca (XRay Centrifugal-Axial) Clutch Set - High Dynamic

The XRAY XCA (Centrifugal‑Axial) High Dynamic Clutch Set (XR338501) is an optional upgrade for the XRAY NT1 platform, including the NT1 and NT1 2009 Spec. Engineered for more dynamic clutch engagement across common racing conditions, it combines lightweight rotating parts with reinforced components for consistent, responsive performance.

Developed and long‑term tested by the XRAY factory team, this set features a hard‑coated 7075‑T6 aluminium flywheel and clutch disc, new black reinforced flyweights, a smaller and super‑lightweight clutchbell, a smaller‑diameter yellow clutch shoe, and a medium‑rate spring to achieve optimum high‑dynamic characteristics. A comprehensive shim and bearing pack is included for precise setup.

Features

• High‑dynamic clutch engagement suited to most racing conditions
• Super‑lightweight, hard‑coated 7075‑T6 aluminium flywheel
• Black reinforced clutch flyweights (3)
• Smaller, super‑lightweight Hudy Steel clutchbell
• Smaller‑diameter yellow clutch shoe
• Medium‑hardness clutch spring
• Aluminium clutch disc (Swiss 7075 T6)
• Hudy Spring Steel components where specified
• Includes axial, high‑speed and clutch bell bearings
• Designed and long‑term tested by the XRAY factory team
• Note: Pinion gears are not included

What’s Included

• 338513 Clutch Bell - Hudy Steel - High Dynamic
• 338532 Flywheel - Alu 7075 T6 - Hardcoated - High Dynamic
• 338550 Flywheel Nut - Hudy Spring Steel™
• 338556 Clutch Bell Bushing - Hudy Spring Steel™
• 338561 Clutch Flyweight - High Dynamic - Black (3)
• 338571 Alu Clutch Disc - High Dynamic - Swiss 7075 T6
• 338577 Clutch Shoe - High Dynamic - Yellow
• 338581 Clutch Spring - Medium
• 338584 Shim 5x7x0.2 (10)
• 338585 Shim 5x7x0.3 (10)
• 338586 Shim 5x7x0.5 (10)
• 338590 Clutch Spring Cup - Alu 7075 T6
• 338594 Clutch Preload Adj. Nut - Hudy Spring Steel™
• 359050 Clutch Bell Ball-Bearing MR105ZZ 5x10x4 (2)
• 908316 Hex Screw Socket Head Cap M3x16 (10)
• 930150 Carbide Ball-Bearing Axial F5-10 5x10x4 with Groove
• 940508 High-Speed Ball-Bearing 5x8x2.5 Rubber Sealed (2)
• 964073 Washer S 7x10x0.2 (10)
• 964074 Washer S 7x10x0.3 (10)
• 964075 Washer S 7x10x0.5 (10)

Suggested Compatibility

• XRAY NT1 2013
• XRAY NT1
