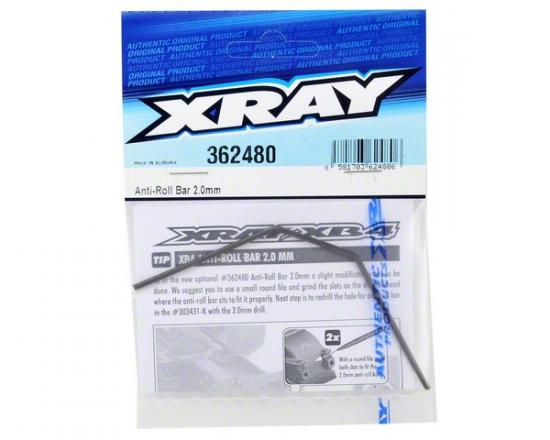

XRay Anti-Roll Bar 2.0 mm

The XRAY Anti-Roll Bar 2.0mm (XR362480) is an optional, thicker/harder bar than the standard 1.2mm item supplied with the XB4. It can be installed on the front or rear to stabilise chassis roll and refine steering response and traction balance.

Features

• Manufactured from special spring steel for consistent rate and durability
• Laser-engraved for easy size identification
• Fits front or rear; mounts to the differential cases
• Quick adjustment via linkages for trackside tuning
• Size range available for fine setup changes: 1.0–2.0mm (1.0, 1.1, 1.2 standard, 1.3, 1.4, 1.6, 1.8, 2.0)

Tuning Effects – Front Bar

• Softer: more front chassis roll, more front traction, less rear traction, increased off-power steering (may cause oversteer)
• Stiffer: less front roll, reduced front traction, decreased off-power steering at corner entry (more understeer), quicker response

Tuning Effects – Rear Bar

• Softer: more rear chassis roll, increased rear traction, reduced front traction, decreases on-power steering (may cause understeer)
• Stiffer: less rear roll, reduced rear traction, increases on-power steering (may cause oversteer), quicker response in fast direction changes

Suggested Compatibility

• XRAY XB4
• XRAY XB4 2WD
