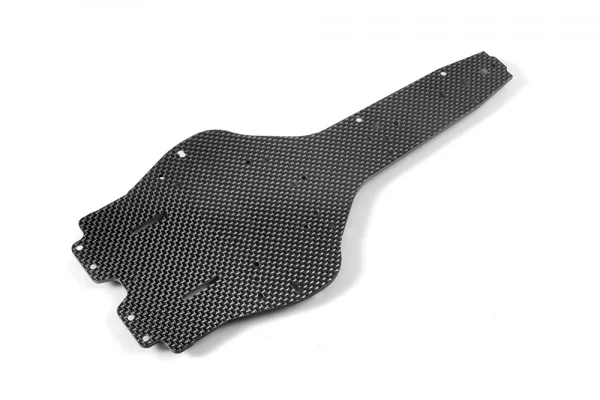

XRay X1 17 2.5mm Graphite Chassis

The XRay X1 17 Chassis (XR371009) is a custom-manufactured backbone for the X1 platform, CNC-machined from 2.5mm high-grade graphite with a specially formulated compound. Engineered for indoor and outdoor carpet or asphalt racing, it balances precision stiffness with controlled flex to deliver excellent handling and maximum traction.

Key Features

• CNC-machined from 2.5mm high-grade graphite with a specially designed compound for racing on carpet and asphalt.
• New 2-position pod link mounting: outer position as standard; inner position enables angled pod links to enhance in-corner steering.
• Revised, more forward location for the central mounting plate to suit the new short shock.
• Optimised stiffness for confident, predictable handling while maintaining the flex needed for traction.
• Super-narrow front profile provides maximum forward bite with strong steering and cornering speed.
• Superior torsional stability while eliminating scrub effect in high-speed corners.
• Chassis acts as the central backbone, with all main components attaching directly.
• Rear pod suspension connects via chassis links for a direct, responsive feel.

Designed to help you extract pace and consistency, the XRay X1 17 2.5mm Graphite Chassis offers a refined balance of rigidity and flex, sharpening steering response and corner speed without sacrificing grip.
