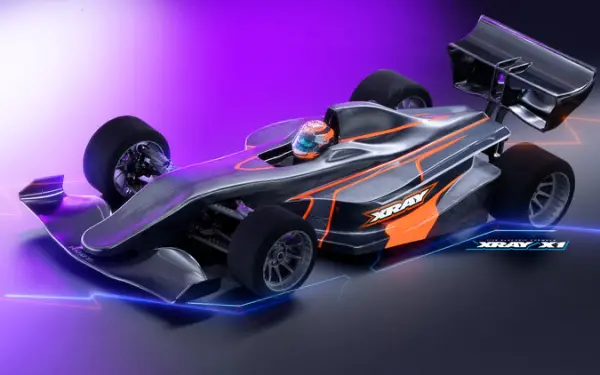

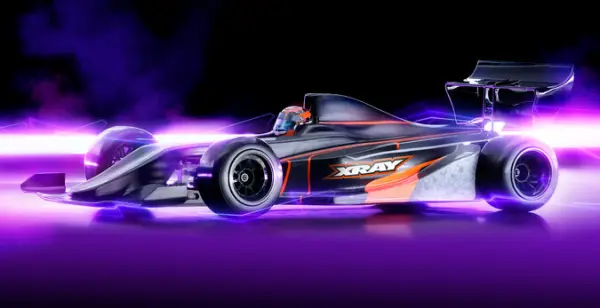

XRay X1 27 Aluminium Edition Formula Car Kit XR370710

Brand: XRay

Part No: XR370710

£452.00 RRP £548.35

Usually ships next day

UK Delivery
Get it by Wednesday 18th Nov (Order within 3h 13m)
Store Collection (Cannock)
Tomorrow, once stock arrives

Finance options available at checkout.

Add-ons and accessories that go with the XRay X1 27 - Aluminium Edition

Description

The XRay X1 27 - Aluminium Edition (XR370710) is a 2027 formula racing car kit in the carpet-specific version, built around a 2.0 mm aluminium chassis and a solid axle. XRay offers the X1 in aluminium and carbon versions so that each suits a different track surface without optional parts, and this one is aimed at carpet.

At the front, the car has a redesigned one-piece chassis that works with a new front suspension layout and adds rear stiffness for stability and traction. The suspension has been reworked so that ride height, camber gain and droop are easier to adjust. Ride height is set with shims between the lower carbon arm and the bulkheads, and camber gain is changed by adding or removing shims above the kingpin. The larger-diameter kingpin has integrated oil refill holes, and downstop screws replace the old clips. A new HUDY composite front wing, developed with Ehrbar Engineering, is fitted for use on both asphalt and carpet.

The rear end has also been redesigned. The motor sits 1.5 mm further to the right to improve weight balance, and an aluminium holder lets the battery plate mount independently, which lowers the centre of gravity and makes the battery easier to remove. A three-position battery backstop moves the battery forwards or backwards, and set screws in the raised carbon rear brace adjust the rear POD upstop. The kit uses C1.2 side springs and a fixed-mount aluminium rear wing holder, and the rear wing is approved for ETS events.

Tuning Options

The carbon top deck offers soft, medium and stiff In-Line Flex settings, and the adjustable front bulkheads and carbon side braces provide further flex adjustment. The car is adjustable for caster, track width, ride heights, shock settings, battery position, Ackermann and bump steer. The chassis and rear POD have pre-drilled centreline holes for weight balancing with the HUDY Chassis Balancing Tool #107880. A gear differential or ball differential can be swapped in for the solid axle if track conditions call for it.

Key Specifications

  • Chassis: 2.0 mm aluminium, one-piece design
  • Axle: solid axle
  • Motor position: shifted 1.5 mm to the right
  • Battery backstop: three positions in 2 mm steps, 4 mm total range
  • Rear ride height bushings: 0.25 mm adjustment steps
  • Springs: silver C0.6 front, C1.2 side
  • Ball-bearings: full set of 8

Specifications

All New Features 2027 - PART 1

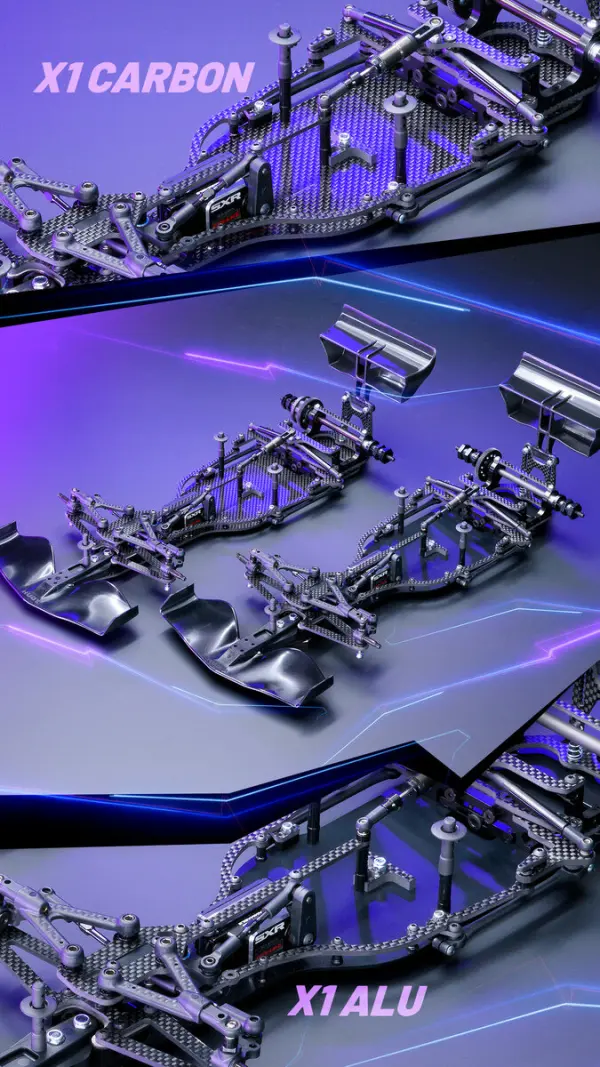

  • Available in Alu & Carbon versions for optimized performance on different track surfaces without optional parts
  • Carpet-specific Aluminum Version features a 2.0mm aluminum chassis and solid axle
  • Asphalt-specific Carbon Version features a 2.2mm carbon chassis and gear differential
  • New HUDY composite front wing developed with Ehrbar Engineering delivers outstanding steering response and excellent stability
  • Redesigned one-piece chassis works with the new front suspension and features increased rear stiffness for improved stability and traction
  • Adjustable front bulkheads offer multiple flex tuning options
  • Shorter one-piece front lower arm creates a cleaner and more attractive front suspension design
  • Redesigned front aluminum top deck mount matches the new front suspension layout
  • Narrower carbon arm mount plate improves cornering speed and connects directly to the carbon top deck
  • Reengineered front suspension design enables easier ride height, camber gain, and droop adjustments, smoother damping, and more convenient oil refilling
  • Larger-diameter kingpin with integrated oil refill holes improves damping smoothness
  • Larger and longer front spring improves damping precision and performance
  • New camber gain adjustment system allows easy tuning by adding or removing shims above the kingpin
  • Updated downstop screw system replaces clips for easier and more precise droop adjustment
  • Revised lower pivot ball improves damping performance by retaining oil on the kingpin longer
  • Redesigned front wheel axle matches the new kingpin system
  • Redesigned composite steering block matches the new kingpin system

All New Features 2027 - PART 2

  • New ride height shim system allows easier ride height adjustment using shims between the lower carbon arm and bulkheads
  • Relocated carbon POD lower plates move the motor 1.5mm to the right for improved weight balance
  • Redesigned bulkheads work with the new POD assembly and rear aluminum holder
  • Revised carbon rear POD upper plate matches the 1.5mm-shifted POD position
  • Innovative rear aluminum holder enables independent battery plate mounting for a lower center of gravity, cleaner design, and easier battery removal
  • Rear aluminum holder includes battery stopper mounting holes for easier battery position adjustment
  • Raised carbon rear brace sits 1mm higher for a wider side spring preload adjustment range
  • Integrated upstop set screw system in the carbon rear brace allows POD upstop adjustment
  • Adjustable upstop system controls rear POD travel limit for improved stability and cornering speed in high-traction conditions
  • Upgraded C1.2 side springs improve performance straight out of the box without optional parts
  • Lower-mounted carbon battery holders lowers center of gravity and simplifies battery mounting
  • Lowered side link holders by 2mm allow lower side brace mounting for a lower center of gravity
  • New servo posts enable top deck mounting for additional flex adjustment options
  • Fixed-mount rear aluminum wing holder improves wing durability while reducing weight and lowers center of gravity
  • Lightweight carbon wing mount redesigned for the fixed mounting system with lower weight and lowered center of gravity
  • Lowered aluminum side brace mounts by 2mm lowers center of gravity and simplfies battery access
  • Redesigned carbon side braces integrate with the new front bulkheads

Chassis

Redesigned one-piece chassis works with the new front suspension and features increased rear stiffness for improved stability and traction.

The super-narrow chassis creates maximum traction while still having excellent steering and cornering speed. The chassis’ torsional stability also helps eliminate the “scrub effect” in high-speed corners. The chassis is machined from a premium high-grade carbon fiber material.

Front Suspension

Reengineered front suspension design enables easier ride height, camber gain, and droop adjustments, smoother damping, and more convenient oil refilling.

Updated downstop screw system replaces clips for easier and more precise droop adjustment.

The front end features a smoother damping, with a more convenient kingpin oil refilling, which simplifies maintenance, and improves handling.

Read more >

Front Wing

New HUDY Front Wing developed with Ehrbar Engineering delivers outstanding steering response and excellent stability across a wide range of track conditions.

Designed for both asphalt and carpet tracks, the wing provides consistent and predictable handling from very low to very high traction conditions, making it an excellent all-round choice for Formula racing.

The lightweight design is manufactured from high-grade composite material, combining low weight with excellent strength and durability.

Front Bulkhead

Adjustable front bulkheads offer multiple flex tuning options.

Redesigned front aluminum top deck mount matches the new front suspension layout.

Narrower carbon arm mount plate improves cornering speed and connects directly to the carbon top deck.

Front Lower Arm

Shorter one-piece front lower arm creates a cleaner and more attractive front suspension design.
The one-piece design has minimal flex, high durability, and a low center of gravity.

The arm’s special carbon material minimizes flex, increases stability and improves drivability in high traction conditions.

Front Ride Height

New ride height shim system allows easier ride height adjustment using shims between the lower carbon arm and bulkheads.

Ride height changes can be made with minimal effort & maximum comfort.

Read more >

Kingpin

Larger-diameter kingpin with integrated oil refill holes improves damping smoothness.

New camber gain adjustment system allows easy tuning by adding or removing shims above the kingpin.
The super-smooth, hardened steel kingpins are extra-long, which allows for maximum front droop adjustment range to allow for maximum adjustability for various traction conditions and track layouts.

Front Coil Springs

Larger and longer front spring improves damping precision and performance.

To better support the weight of the car, and to improve the car’s consistency, the car now features larger inside diameter and longer front springs. The springs improve the car’s handling in all conditions, and are also less likely to collapse after use, which prolongs the life of the spring, and reduced the need for frequent maintenance of the front suspension.

The soft, most used front coil springs are included in the kit to make the X1 as versatile as possible out of the box. The silver C0.6 springs are the most used springs for both carpet and asphalt tracks and improve front-end grip.

Front Droop Adjustment

Front droop is adjusted by the preload of the front spring. Adding more shims between the kingpin axle and the spring retaining screw will increase front droop. Removing shims will have the opposite effect.

Wheel Axles & Steering Blocks

Redesigned front wheel axle matches the new kingpin system & steering block.

Ultra-precise wheel axles are CNC-machined from premium HUDY Spring Steel™ and are additionally hardened and hand-ground for precision fitment.

Redesigned composite front steering block matches the new kingpin system.

Steering blocks are made from a special graphite-composite mixture for high durability and maximum suspension smoothness, with minimal binding under load.

The super-precise inner hole for the kingpin steel pin ensures a wobble-free assembly.

Rear Suspension

The completely redesigned rear suspension features a new POD assembly, rear bulkheads, rear aluminum holder, rear brace, upstop system, side springs, battery backstop, side link holders, side braces, rear wing mounting, and rear wing.

The new rear suspension design moves the motor 1.5 mm to the right for improved weight balance, lowers multiple components to reduce CG, and introduces an adjustable POD upstop system for additional tuning in high-traction conditions. The revised layout improves stability, traction, cornering performance, and overall adjustability while simplifying battery handling and maintenance.

Rear POD

Relocated carbon POD lower plates move the motor 1.5mm to the right for improved weight balance.

Redesigned bulkheads work with the new POD assembly and rear aluminum holder.

Revised carbon rear POD upper plate matches the 1.5mm-shifted POD position.
The 2-piece rear POD concept is positioned above the one-piece chassis plate. As part of the pod assembly, the POD plate controls the droop setting along with a POD angle adjustment and supports the side springs. The rear spring location maximizes forward traction and lowers CG, while offering maximum adjustability.

The suspension configuration controls the POD droop adjustment using the rear bump spring. The composite spring adjustment nut is compatible with both linear and conical springs for maximum versatility and adjustment choices.

The POD angle adjustment is an integrated setting for fine tuning of the handling; controlled by a set screw at the rear of chassis.

The POD assembly includes aluminum bulkheads and carbon fiber upper and lower POD plates. The pod mounting system maximizes traction and stability, while minimizing tweak issues following crashes.

The rear carbon fiber upper POD plate uses super lightweight composite bushings to save weight, lower CG and to improve the aesthetics of the car. The upper plate mounts to the bulkheads with 4 centering pins as well as 2 screws to maintain proper alignment and to minimize the chances of tweak following an impact on the track.

Rear Brace

The raised carbon rear brace sits 1 mm higher to provide an increased side spring preload adjustment range for greater set-up versatility.

The new integrated upstop system allows precise adjustment of the rear POD travel limit, providing an additional tuning option for high-traction conditions.

Lowered split carbon plates reduce the center of gravity and provide easier battery access. The innovative rear aluminum holder enables independent battery plate mounting and features centering pins for improved tweak resistance.

A 3-position battery backstop allows easy front-to-rear battery position adjustment to fine-tune the car’s balance and handling characteristics.

Upstop System

The new integrated upstop system provides precise control of rear POD travel for improved stability and cornering speed in high-traction conditions.

The adjustable upstop system controls the maximum rear POD travel using integrated set screws in the carbon rear brace.

More upstop reduces POD travel, increasing initial response and cornering speed while helping to reduce traction rolling and oversteer in high-traction conditions.

Less upstop allows more POD travel. Without upstops, the car provides more off-power steering and rotation, making this setting particularly suitable for tight and technical tracks.

Battery Mount System

The innovative rear aluminum holder enables independent mounting of the battery plate, creating a cleaner and lower-profile design while making battery installation and removal easier. The floating, tweak-free mounting system secures the battery without O-rings or tape and helps maximize traction and handling consistency.

The battery backstop offers 3 positions in 2 mm steps, providing a total 4 mm front-to-rear adjustment range. Moving the battery forward makes the car easier to drive and more predictable over bumps while reducing wheel lift in corners. Moving the battery rearward makes the car more aggressive and increases cornering speed, but also makes it more demanding to drive.

Side Spring Retainers

The new C1.2 side springs provide an excellent starting point for most tracks and conditions, reducing the need for optional springs and delivering more versatile handling straight out of the box.

The increased side spring preload range provides greater adjustment flexibility for different track conditions and spring settings. Proven steel side spring retainers ensure precise and consistent damping action for predictable handling.

Side Link Mounting System

The new side link holders sit 2 mm lower, allowing the side braces to be mounted closer to the chassis for a lower center of gravity and more consistent, predictable handling.

Shorter carbon side link plates increase in-corner steering for improved rotation. The lightweight side link mounting system maintains high rigidity and tweak resistance, with locating pins ensuring precise and reliable alignment.

Rear Wing & Mount

The new high-downforce rear wing is designed for maximum aerodynamic performance, improving stability, traction, and rear grip. The wing is approved for use at ETS events.

The new fixed-mount rear aluminum wing holder provides a more durable mounting solution while reducing weight and lowering the center of gravity. The carbon wing mount retains wing height adjustment for additional aerodynamic tuning.

Top Deck

The carbon top deck provides additional adjustment of the car’s In-Line Flex™ to suit different traction conditions and tires.

Three In-Line Flex™ options are available — Soft, Medium, and Stiff — providing a wider tuning range to optimize the chassis flex and handling characteristics for different track conditions.

New servo posts provide the additional mounting points required for the top deck and expand the available flex adjustment options.

Side Braces

The aluminum side brace mounts are positioned 3 mm lower, allowing the carbon side braces to sit closer to the chassis. This lowers the center of gravity and provides easier battery access.

The redesigned carbon side braces connect directly to the new front bulkheads, creating an integrated system for precise Multi-Flex adjustment. This allows chassis flex characteristics to be fine-tuned for different track conditions.

The side braces also increase overall traction and make the car more forgiving, resulting in more predictable and consistent handling.

Differentials

Three drivetrain options provide precise control over power delivery and traction to suit different track conditions and driving styles.

Standard Features

Some information shown below may include details from previous kits, and it may vary slightly from current kit specifications.

POD Mounting System

Low center pivot holder controls POD movement and roll center adjustment. A smaller diameter pivot ball allows for a lower roll center location if desired providing maximum adjustability.

The aluminum Tweak-Free Pod Mounting System improves traction and stability and reduces tweak issues after crashes. The system allows for a significantly lowered roll center, lowered center of gravity, and pivot height adjustment using various shims.
Forward – The most forgiving handling; car can be driven more aggressively without fear of losing rear traction.
Rearward – Improved rotation from the shorter rear pod geometry. Provides more initial steering as well as rotation which is best suited for high traction carpet.

Snap Lock™ Bushings

Super smart XRAY Snap Lock™ Bushings replace locknuts and aluminum bushings. The 13 super small bushings reduce weight and stay securely held in place after installation for easy chassis assembly and maintenance.

Center Shock

The center shock provides exceptional bump handling, low maintenance, and helps lower CG. The spring-free design significantly reduces weight, and the 1-hole piston configuration ensures consistent handling over bumps.
The center shock features a hard anodized aluminum shock body for great durability.
A silicone shock O-ring seals the dampener for super smooth operation while preventing oil leakage.
The ultra-finely finished shock shaft with the precision-molded composite shock piston creates optimum oil flow and smooth shock absorber action.

Dampening

Rear POD spring replaces the center shock spring. The POD spring improves forward traction, expands adjustment possibilities, and lowers CG.
The spring holder accommodates both conical/progressive and straight/linear springs.
To ensure best handling for most conditions, the included soft rear conical/progressive spring provides a balanced starting set-up out of the box.

Steering System

The aluminum bearing shim eliminates radial play of the steering arm for more precise car control.

Rear Ride Height

Small and light eccentric ride height bushings provide fine adjustment steps in 0.25mm increments.

Side Braces Chassis Flex Settings

Graphite braces connect the front lower arms with the chassis side braces, increasing chassis stiffness for high traction conditions, especially with foam tires. There are 4 Chassis Flex Settings:

Gear Differential

The included gear diff became the most popular axle configuration for most track conditions and tire types, improving car handling out of the box.

The revolutionary, XRAY- designed, super-smooth gear diff is a direct replacement for the ball-differential or solid axle, allowing easy changes between all three axle types.

Using the gear differential makes the car more stable and easier to drive, especially in high-traction conditions. The gear diff increases on-power steering, which is needed on almost all types of tracks, making it a “must have” for every racer and is now included in the kit.

The complete gear differential set includes a composite case, cover and precision-molded internal satellite gears made from special XRAY-developed composite material; all ensuring long lifespan and super-smooth efficient operation. A super-strong hollow steel shaft ensures maximum reliability and strength.

The advantage of the gear diff is that it is maintenance-free. For a very long period of time, when the diff is correctly built, there is no need for maintenance or frequent oil changes plus no leakage due to the superior sealing system.

Ball Diff

Optional part.
Optional ball differential generates more traction and as such it is suggested for super low traction conditions. The ball differential features high-grade precision carbide balls for spur gear, hardened & precision-ground D-shaped steel shims, and premium carbide axial thrust-bearing.

CFF™ Arms

Innovative CFF™ front upper arms make the X1 extremely responsive & sharp, generate fantastic cornering speed & traction, and simplify the camber adjustment process for easy setup changes.

The unique CFF™ suspension arms are an elegant engineering achievement first used on our X4 platform that look great and perform even better on the track. Using XRAY’s own newly developed manufacturing process, a carbon fiber arm and composite arm are molded together using a fusion process to produce a single CFF™ suspension arm.

The benefits of the CFF™ arms are tremendous. The thickness of the inner carbon fiber plate determines the hardness and flex of the arm. The composite around the carbon helps control its flex and rebound, resulting in a very consistent feel from corner to corner.

CFF™ Arms Mounting

Thanks to the unique design of the CFF™ arms, all the suspension components are mounted directly on the arm without additional brackets, bushings or extensions. This direct mounting eliminates unwanted play between these extra components. Most importantly, the reliability and accuracy of the direct mounting ensure that settings remain consistent during a run even after a crash.

Camber

Front camber is easily adjusted via adjustable front upper. No longer requiring multiple camber bushings to make changes, the entire camber range is easily adjusted directly on the suspension.

Caster

Caster is easily adjusted via front upper plate eccentric alu bushings.

The kit includes a set of 2 dots eccentric bushings with 4.5°/9° caster setting. Using optional bushings and changing the orientation of the bushings, additional caster settings of 3°, 6°, 7.5° and 10.5° can be achieved.

Side Damper Tubes

Lateral-damping side tubes provide ultra-smooth side damping, making the car easier to drive and work on. The outer aluminum tube and inner Delrin® tube operate ultra-smoothly.

Rear Wheel Hubs

Aluminum rear hubs are machined from lightweight aircraft aluminum, specially lightened and black-coated for stylish looks. The rear left aluminum wheel hub features a center-balanced clamping mounting system, ensuring secure mounting while eliminating vibration and run-out.

Turnbuckles

Steering linkages consist from adjustable 3mm turnbuckles manufactured from lightweight Swiss 7075 T6 aluminum which are used to adjust front toe.

Ball-bearings

A full set 8 high-speed, blue-sealed, steel ball-bearings are used throughout the drivetrain and steering to ensure maximum efficiency. All bearings are degreased and oiled with AeroShell® Fluid 12 for maximum smoothness and long life.

Silicone Oils

HUDY Exclusive Silicone Oils are manufactured in Europe and each batch is laboratory tested and calibrated to ensure the highest possible consistency and quality from batch to batch. Based on the industry-standard cSt rating, the new line of oils will be easy to identify, adjust, and feel.

When following any set-up sheets by XRAY or XRAY team drivers, you can be sure that the oils you will get for your car are exactly same as those used by the factory racing team, thus ensuring very exacting set-ups and handling.

HUDY Chem Series.

Fully Adjustable

The X1 is fully adjustable for: front camber, caster, track-width, front & rear ride height, central & side shock absorbers, central shock spring, pod damping, downstop, battery position, weight balance, differential, Ackermann, bump steer, front downforce spoiler, and rear wing.

Chassis Weight Balance

Chassis and rear pod features pre-drilled centerline holes for optimum weight balance adjustment using HUDY Chassis Balancing Tool #107880.



Key Info:
  • Brand: XRay
  • Part No: XR370710
  • Barcode: 8581703707103
  • Scale: 1:10
  • Power Source: Electric - No Motor
  • Vehicle Type: Formula 1
  • Surface Type: On Road
  • Build Level: Unassembled (Kit)

Delivery & Returns

Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

No questions yet, why not ask one?
Ask a Question
Get early access to deals and new arrivals.
Use this form to ask us a quick one sentence question about this specific product. Do not enter anything you would not like displayed on our site.

For more in depth queries, please contact us.
