XRay X4 Graphite Upper Deck 2.0mm
Brand: XRay
Part No: XR301070
£52.24
RRP £54.99
Shadow Stock: Usually ships next day
The XRay X4 Graphite Upper Deck 2.0mm (XR301070) is a precision-machined top deck featuring milled holes for special tweak-free top deck screws and a layout that works with the centre layshaft positioned in the middle of the chassis. Its 2.0mm graphite construction and refined profile are developed to deliver maximum traction with confident, responsive steering.
Key Features
- 2.0mm graphite construction for a balanced blend of flex, response and durability.
- Milled holes for special tweak-free top deck screws to help maintain chassis symmetry.
- Compatible layout with centre layshaft positioned in the middle of the chassis.
- Profile optimised to achieve strong forward traction and precise steering.
- Four easy flex settings via motor-mount connection alternatives.
Adjustable Flex Settings
- Soft: No bushing or bearing used between the top deck and motor mount for maximum flex and maximum steering; on‑power stability is reduced.
- Soft‑Medium: Top deck connected to the motor mount via a ball bearing; slightly less steering with improved stability.
- Medium: Top deck connected via a special M3x5.5mm screw behind the layshaft; reduces steering a touch and increases stability.
- Stiff: Top deck connected via special M3x5.5mm screws behind and in front of the layshaft; provides maximum stability and sharper steering response.
Suggested compatibility: XRay X4 platform using a centre layshaft configuration.
Secure Payments
Secured by Stripe

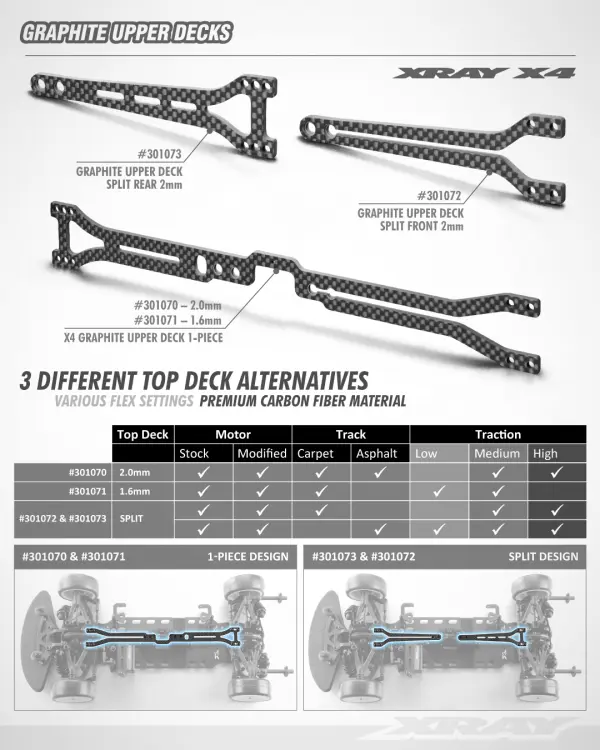

The X4 top deck features milled holes for special tweak-free top deck screws and works with the center layshaft location in the middle of the chassis.
Machined from 2.0mm graphite material, the shape of the top deck has been specifically designed to achieve maximum traction and great steering characteristics at the same time.
The unique top deck flex settings allows easy adjustment of the flex between 4 different characteristics.
The top deck can be connected to the motor mount using these alternatives:
1.) Soft setting - No bushing or bearing is used. This allows maximum flex and provides maximum steering. However, the car is less stable on-power.
2.) Soft-medium setting - The top deck is connected to the motor mount via ball bearing. This setting eliminates a bit of steering but improves stability.
3.) Medium setting - The top deck is connected to the motor mount via special screw M3x5.5mm behind layshaft. This setting eliminates a bit of steering but improves stability.
4.) Stiff setting - The top deck is connected to the motor mount via special screws M3x5.5mm behind and in front of layshaft. This setting provides maximum stability And also improves steering response.
Key Info:
Machined from 2.0mm graphite material, the shape of the top deck has been specifically designed to achieve maximum traction and great steering characteristics at the same time.
The unique top deck flex settings allows easy adjustment of the flex between 4 different characteristics.
The top deck can be connected to the motor mount using these alternatives:
1.) Soft setting - No bushing or bearing is used. This allows maximum flex and provides maximum steering. However, the car is less stable on-power.
2.) Soft-medium setting - The top deck is connected to the motor mount via ball bearing. This setting eliminates a bit of steering but improves stability.
3.) Medium setting - The top deck is connected to the motor mount via special screw M3x5.5mm behind layshaft. This setting eliminates a bit of steering but improves stability.
4.) Stiff setting - The top deck is connected to the motor mount via special screws M3x5.5mm behind and in front of layshaft. This setting provides maximum stability And also improves steering response.
Key Info:
- Brand: XRay
- Part No: XR301070
- Barcode: 8581703010708
