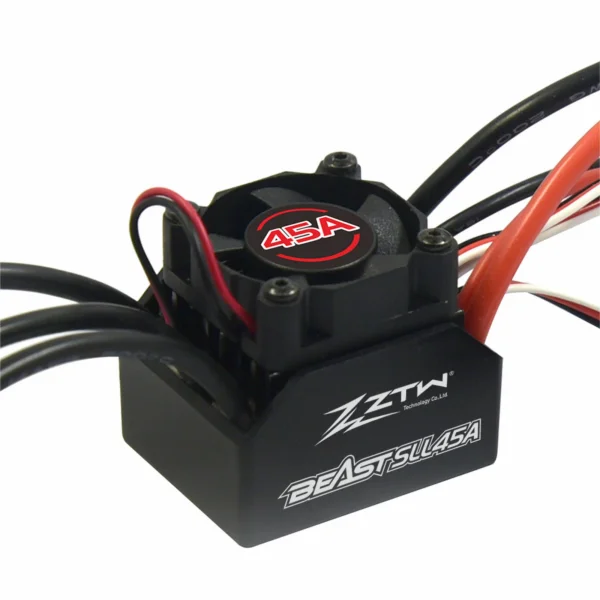

ZTW Beast Sll 45A ESC ZTW4104521 for 1:10 Scale Models

The ZTW Beast Sll 45A ESC, part number ZTW4104521, is a 1:10 scale electronic speed controller from ZTW, supplied in black with a plastic casing.

It is rated for 45A of continuous current, with a burst rating of 260A over 10 seconds. The built-in BEC provides 6.0V at 2A, and the controller is listed for use with 5-10 cell NiMH or 2-3 cell LiPo batteries. Power and motor connections use 14 AWG wire with 160 mm leads, and the connector type is bullet. The signal lead is 300 mm long and ends in a standard JR male plug, while the switch wire is 90 mm.

One ESC is supplied in the box. The manufacturer gives an age recommendation of 14 and over.

Specifications

• Continuous current: 45A
• Burst current (10 seconds): 260A
• BEC output: 6.0V/2A
• Battery: 5-10 NiMH / 2-3 LiPo
• Connector: Bullet
• Weight: 250 g
