Description

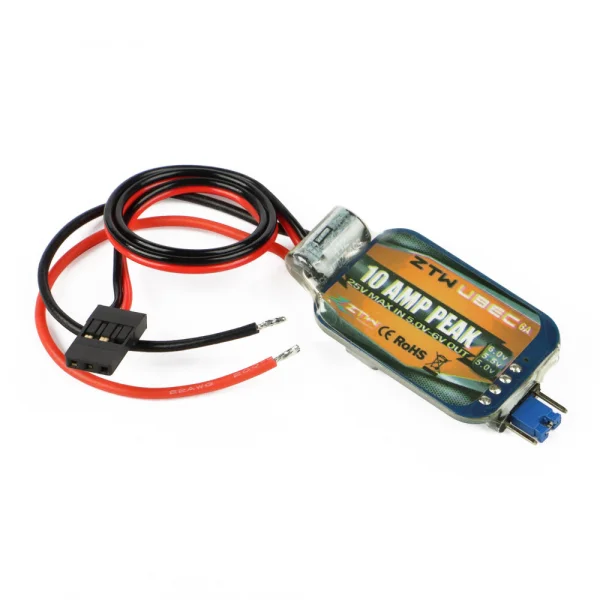

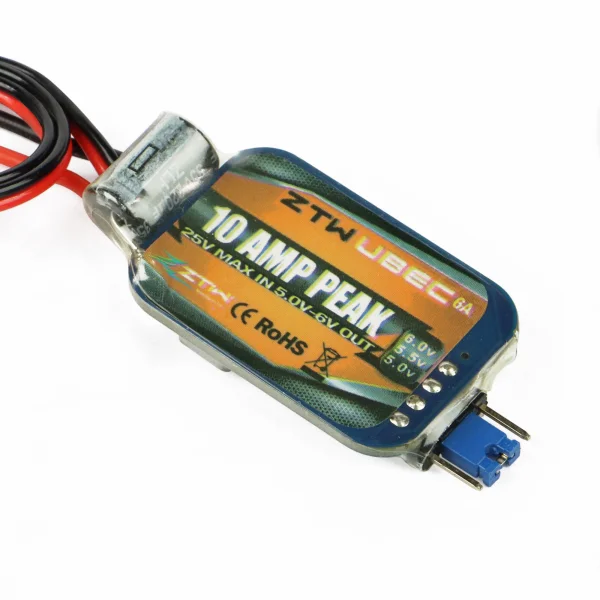

The ZTW Ubec 6A (part number ZTW300200010) is a switch mode UBEC, a battery elimination circuit that supplies power to your servos separately from the speed controller.
A UBEC is needed if your electronic speed controller (ESC) has no built-in BEC, or if the ESC's BEC cannot power the number or size of servos in use. The ZTW UBEC range supports continuous, simultaneous servo operation, which avoids overloading the speed controller's BEC during periods of high peak demand, such as extreme aerobatics.
This unit is easy to set up and install. It includes battery polarity reversal protection, reduces electromagnetic interference to help receiver performance, and has an LED status indicator so you can see its state at a glance.
Specifications
- Output: adjustable 5V / 5.5V / 6V
- Input voltage: 6 - 25V
- Output current: 6A continuous / 12A burst
- Size: 45 x 23 x 10 mm
- Weight: 18 g
Secured by Stripe
ZTW Ubec 6A Manuals & Guides
Manuals & Guides
Specifications
A UBEC is needed if your Electronic Speed Controller (ESC) does not have a built in Battery Elimination Circuit (BEC). Theres also a requirement to fit a UBEC where the ESCs BEC is inadequate to power the number and / or size of servos being used. The ZTW UBEC range satisfies this requirement by supporting continuous simultaneous servo operations, thus eliminating the possibility of overloading your speed controllers BEC during periods of high peak demand (as might be experienced during extreme aerobatics). Specification:
| Output: | Adjustable 5V / 5.5V / 6V at 12A |
| Input voltage: | 6 - 25V |
| Output current: | 6A continuous / 12A burst |
| Size (mm): | 45 x 23 x 10 |
| Weight (g): | 18 |
ZTW Ubec 6A Tech Specs:
ZTW Ubec 6A Key Features:
- A UBEC is needed if your Electronic Speed Controller (ESC) does not have a built in Battery Elimination Circuit (BEC). There's also a requirement to fit a UBEC where the ESC's BEC is inadequate to power the number and / or size of servos being used. The ZTW UBEC range satisfies this requirement by supporting continuous simultaneous servo operations, thus eliminating the possibility of overloading your speed controller's BEC during periods of high peak demand (as might be experienced during extreme aerobatics).
Specification:
Output: Adjustable 5V / 5.5V / 6V at 12A Input voltage: 6 - 25V Output current: 6A continuous / 12A burst Size (mm): 45 x 23 x 10 Weight (g): 18 - Switch mode
- Easy to set up and install.
- Battery polarity reversal protection.
- Electromagnetic interference reduction ensures optimum receiver performance.
- LED status indicator.
ZTW Ubec 6A Tech Specs:
- Shipping Weight: 0.03kg / 0.07lbs
Key Info:
- Brand: ZTW
- Part No: ZTW300200010
- Barcode: 5051121222630
