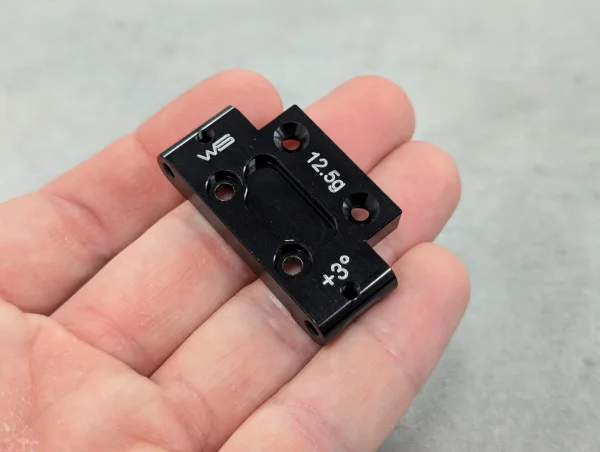

Willspeed XRay XB2 Aluminium 3° Front Bulkhead - ARC
Brand: Willspeed
Part No: W3117
In Stock: Usually ships same day
The Willspeed W3117 Aluminium +3° Front Bulkhead with Adjustable Roll Centre (ARC) provides a robust, tuneable front end for the XB2 platform. Machined from 7075 aluminium, it offers increased strength over the standard plastic item while remaining significantly lighter than stainless steel alternatives. Finished in black anodising with WS logo, angle and weight markers. Component weight: 12.5g.
Key Features
- 7075 aluminium +3° front bulkhead
- Adjustable Roll Centre (ARC) via supplied carbon fibre shims
- 1mm shim replicates standard geometry
- Remove 1mm shim to fully raise roll centre; 0.5mm shim for intermediate adjustment
- Black anodised finish with WS logo, angle and weight markers
- Component weight 12.5g
What’s Included

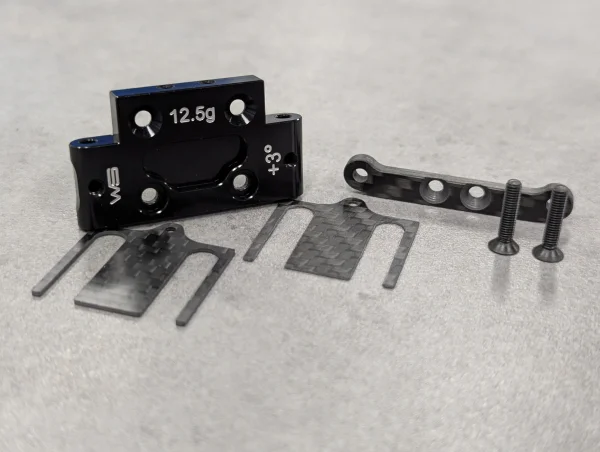

- 1x 7075 aluminium +3° front bulkhead
- 1x 1mm carbon fibre shim
- 1x 0.5mm carbon fibre shim
Suggested Compatibility
- Xray XB2 (replaces Xray 322315)
Secured by Stripe
7075 Aluminium +3° Front Bulkhead with Adjustable Roll Centre (ARC) for the Xray XB2
Manufactured in 7075 Aluminium for increased strength over standard plastic item yet significantly lighter than our stainless steel offerings.

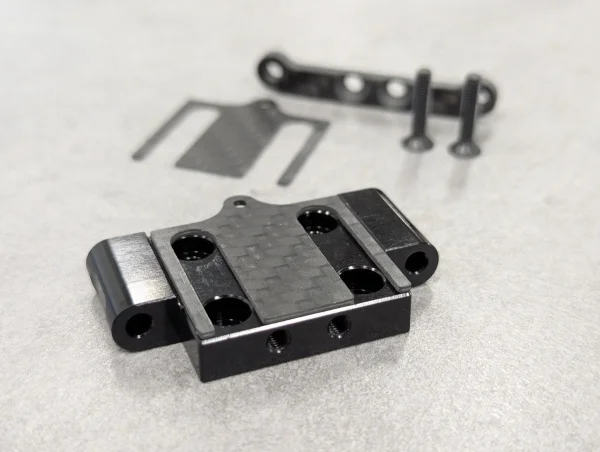

Features Adjustable Roll Centre (ARC) design utilising supplied carbon fibre shims (1x 1mm 1x 0.5mm)
Using 1mm shim replicates standard geometry.
1mm shim can be removed to fully raise roll centre or use 0.5mm shim for intermediate adjustment.
Replaces Xray 322315.
Completed in a black anodised finish with 2nd operation WS logo, weight and angle marker.
Component Weight - 12.5g
Key Info:
- Brand: Willspeed
- Part No: W3117
- Fitment: Option Part
