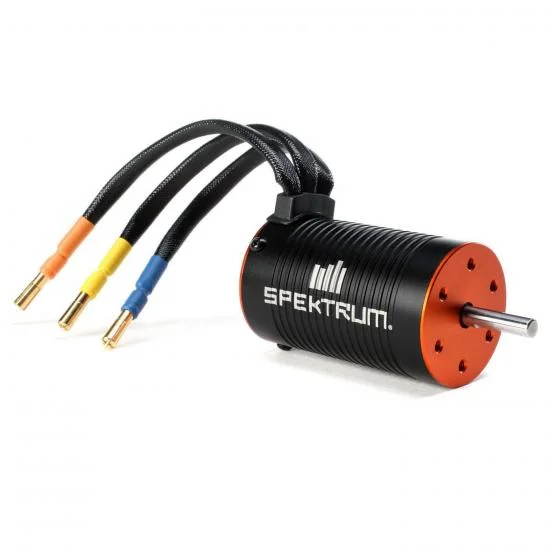

Spektrum Firma 3300Kv Brushless Motor (SPMXSM1300)
Brand: Spektrum
Part No: SPMXSM1300
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (9)
Description
The Spektrum Firma 3300Kv Brushless Motor (SPMXSM1300) is a 3652-size inrunner for 1/10 scale builds on 2S–3S LiPo, delivering smooth, efficient power. Its low-cog 4‑pole rotor, CNC‑machined aluminium housing, insulated high‑purity copper windings and precision bearings provide durability and refined throttle feel. Preinstalled 4 mm gold‑plated bullet connectors make installation straightforward, and it pairs ideally with the Spektrum Firma 85A Smart ESC.
Features
- Low-cog 4‑pole, 8‑magnet rotor design
- CNC‑machined aluminium housing
- Insulated high‑purity copper windings
- Precision bearings for smooth rotation and longevity
- High‑quality alloy steel output shaft
- Preinstalled 4 mm gold‑plated bullet connectors
- Optimised pairing with Spektrum Firma 85A Smart ESC
Specifications
- Motor Type: Brushless
- Motor Design: Inrunner
- Motor Class: 1/10 scale
- Motor Size: 3652-3300Kv
- RPM/Volt (Kv): 3300Kv
- Number of Poles: 4
- Input Voltage: 6–12.6V (2–3S LiPo, 4–9 NiMH)
- Efficiency: 82%
- Maximum Continuous Current: 33A
- Output: 430W (2S)
- Connector Type: 4 mm bullet
- Shaft Diameter: 0.125 in (3 mm)
- Outer Diameter: 1.47 in (37 mm)
- Product Length: 2.04 in (52 mm)
- Product Weight: 7.05 oz (200 g)
- Mounting Dimensions: Same as 540 and 550 size brushed motors
- Sensored: No
- Recommended Speed Control: Spektrum Firma 85A Smart ESC
- Suggested compatibility: 1/10 scale 4WD, 2WD and on-road models running 2S–3S LiPo
- Part Number: SPMXSM1300
What's Included
- Firma 3300Kv Brushless Motor
Required to Complete
- 85A ESC
Secured by Stripe
Spektrum Firma 3300Kv Brushless Motor Manuals & Guides
Manuals & Guides
Specifications
The Firma 3300Kv brushless motor is a great choice for 1/10 scale 4WD, 2WD and on-road models running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 85A Smart ESC.
- Excellent upgrade for 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- High-quality 4-pole sintered rotor
- 4mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Spektrum Firma 3300Kv Brushless Motor Specifications:
- Application: 1/10 scale 4WD, 2WD, and on-road models running 2S – 3S LiPo
- Bushing Or Bearing: Bearing
- Connector Type: 4mm Bullet
- Efficiency: 82%
- Input Voltage: 6 – 12.6V (2-3S LiPo, 4-9 NiMH)
- Maximum Continuous Current: 33A
- Motor Class: 1/10 Scale
- Motor Design: Inrunner
- Motor Size: 3652-3300Kv
- Motor Type: Brushless
- Mounting Dimensions: Same as 540 and 550 size brushed motors
- Number of Poles: 4
- Outer Diameter: 1.47" (37 mm)
- Output: 430W (2S)
- Product Length: 2.04" (52 mm)
- Product Weight: 7.05oz (200g)
- Recommended Speed Control: Spektrum Firma 85A Smart ESC
- RPM/Volt (Kv): 3300Kv
- Sensored: No
- Shaft Diameter: 0.125" (3 mm)
What's in the Box:
- Firma 3300Kv Brushless Motor
Spektrum Firma 3300Kv Brushless Motor Requires to Complete:
- 85A ESC
Key Info:
- Brand: Spektrum
- Part No: SPMXSM1300
- Barcode: 605482715680
- Fitment: Option Part
- Fitment: Standard Part
