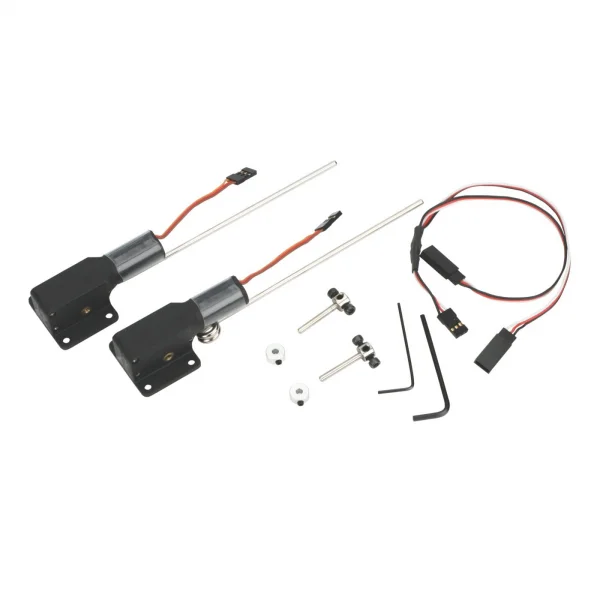

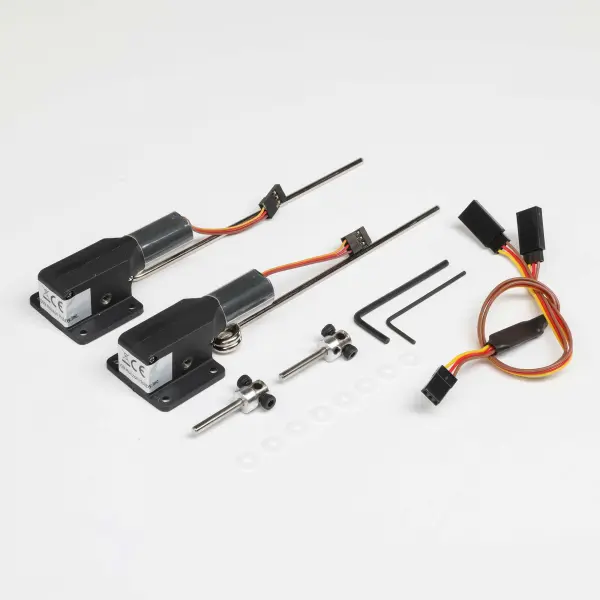

10 - 15 Size Main Electric Retracts

Add scale realism to your model without the complexity. The E-flite EFLG100 10–15 Size Main Electric Retracts are a completely self-contained system that bolts into your airframe and plugs directly into the receiver—no air tank, complex linkages or extra servo required. A specially designed Y-harness is included, allowing a single receiver channel to control all retract units.

Engineered for reliability, these retracts feature robust landing gear struts and mounting brackets, an integrated electric motor with a micro PCB, and built-in over-current protection. They are designed for aircraft in the 2.00–4.50 lb (0.90–2.00 kg) range, with compact 3 mm struts sized for 10–15 class models.

Features

• Robust landing gear strut and mounting bracket
• Integrated electric motor with a micro PCB
• Built-in over-current protection
• Aircraft weight: 2.00–4.50 lb (0.90–2.00 kg)
• Strut diameter 0.118 in (3mm)
• Strut length 0.866 in (22mm)

Key Specifications

• Part type: Retract Parts
• Current draw (stall): 200 mA
• Motor type: Brushed
• Connector type: Universal
• Voltage: 4.8–7.4 V
• Current draw (idle): 5 mA

What’s Included

• Specially designed Y-harness
