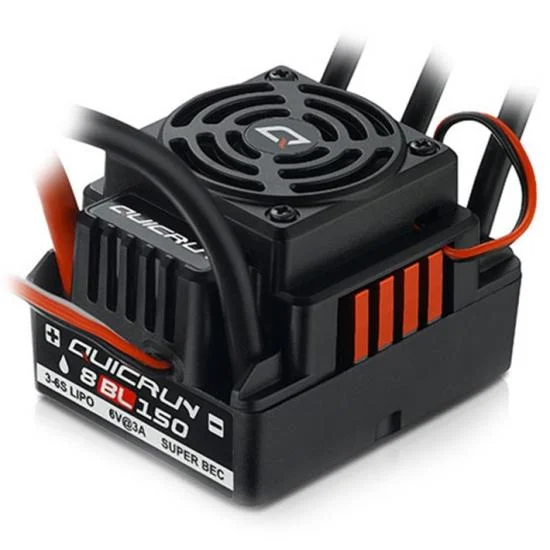

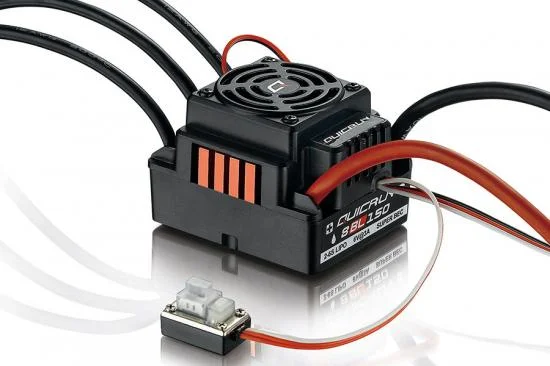

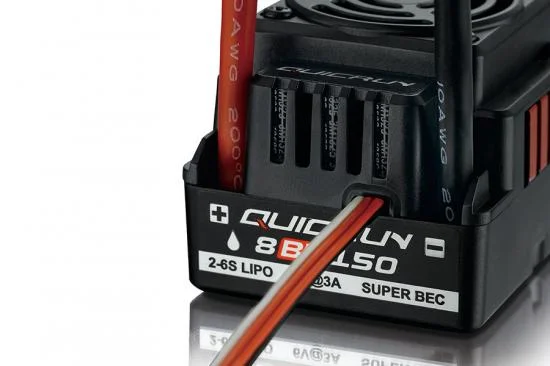

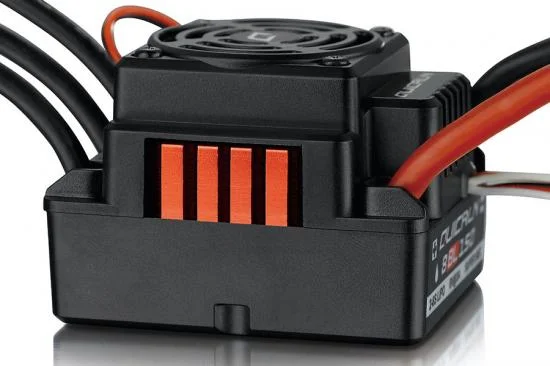

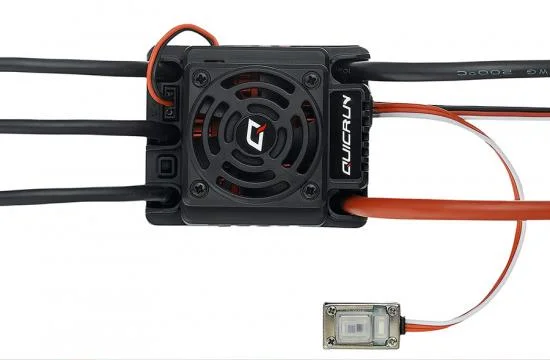

HOBBYWING QUICRUN WP 8BL150 V2 BRUSHLESS SENSORLESS ESC 150AThis ESC is specially designed for new beginners and intermediate modelers; it not only carries forward the outstanding quality of HOBBYWING products but simplifies the operation. This ESC is applicable to all-weather sport of 1/8th short course trucks, buggies, trucks, and monster trucks.
The waterproof and dust-proof design allows the QUICRUN WP-8BL50 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
Hobbywing patented heat-conductive copper bar cover on the power board of the QUICRN WP-8BL50,which can efficiently and effectively transfer heat to the integrated CNC machined billet aluminum heat sink housing, combined with reticulate heatsink and high-performance cooling fan can keep your ESC as cool as possible.
Hobbywing QuicRun WP 8BL150 ESC Features:
- Easy Operation
- High Reliability & Durability
- Applicable to All Weather Conditions
- Efficient Cooling System
- Single-button Programming & Factory Reset
- Built-in BEC
- Wide Applicability
Spec Check:
- Scale: 1/8th
- Brushed/Brushless: Brushless
- Sensored/Sensorless: Sensorless
- Waterproof: WP
- Cont./Peak Current: 150A/950A
- Input: 3-6S LiPo/9-18 Cells NiMH
- BEC Output: Switch Mode:6V/3A
- Input Wires: Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires: Black-12AWG-150mm*3
- Input Connectors: No
- Output Connecotors: No
- Fan Size: 35.0x35.0x10.0mm
- Voltage Range: 5-7.4V
- Powered by: BEC
- SET Button on ESC: Supported
- LED Program Box: Supported
- LCD Program Box: Not Supported
- WiFi Module: Not Supported
- Program Port: FAN/Program Port
- Firmware Upgrade: Not Supported
- Size: 59.5x48.0x42.0mm
- Weight: 178g
- Motors: SL BL Motors/SD BL Motors(only in SL mode)
- Vehicles: 1/8th Touring Cars/Buggies/Trucks/Monster Trucks
- KV Rating/T Count: 4S LiPo:KV≤3000; 6S LiPo:KV≤2400 (40XX Series of Motors)
- Brand: Hobbywing
- Part No: HW30109002
- Barcode: 6938994413114
- Motor Type: Brushless
- LiPo Compatible: Yes
Free UK Delivery!
This item is over £100, so qualifies for free standard UK shipping!
We Ship Worldwide!
To see shipping costs simply add the item to your basket and choose your country from the drop down list on the view cart page.
No product reviews yet!
Hello will this work in the Arrma kraton v5 with the stock spectrum motor an if so will I need any connectors? Thanks
Asked by Daniel Sellers on 18th March 2023
This should work yes, but we would normally recommend the Hobbywing max8 ESC HW30103203
Answered by: Si @ Wheelspin Models
He’ll will this fit in a Arrma kraton 6s
Asked by Daniel on 21st March 2023
This should work yes but we would recommend the Hobbywing Max8 ESC for that car HW30103203
Answered by: Si @ Wheelspin Models
