Spektrum A5070 Mini HV Servo (SPMSA5070) – High Torque
Brand: Spektrum
Part No: SPMSA5070
Expected Fri 30 Oct
Request Stock NotificationFinance options available at checkout.
Fits These Models (5)
![Hangar 9 Aermacchi MB-339 60-86N Scale Military Turbine Jet ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN3390B-75bb.webp){kind=small}
![Viper 100N Turbine Jet ARF with Retract Set [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN-3625CR-accc.webp){kind=small}
![Viper 100N Turbine Jet ARF [COLLECTION SG14 1QN ONLY]](https://imgr2.wheelspinmodels.co.uk/140/HAN-3625ARF-7bae.webp){kind=small}
Customers Also Buy
Popular with customers who buy products like the A5070 High Torque High Speed Mini MG HV Servo
Description

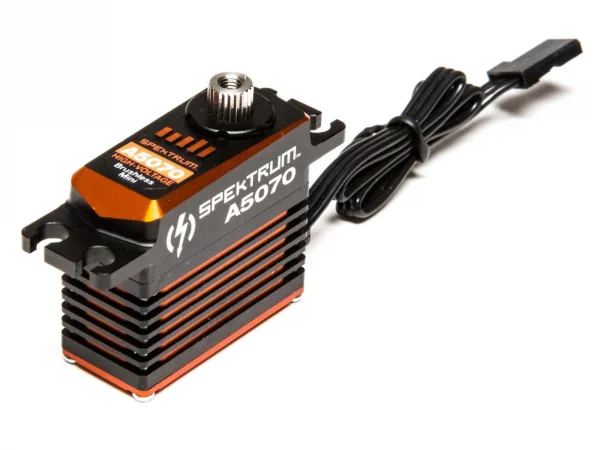

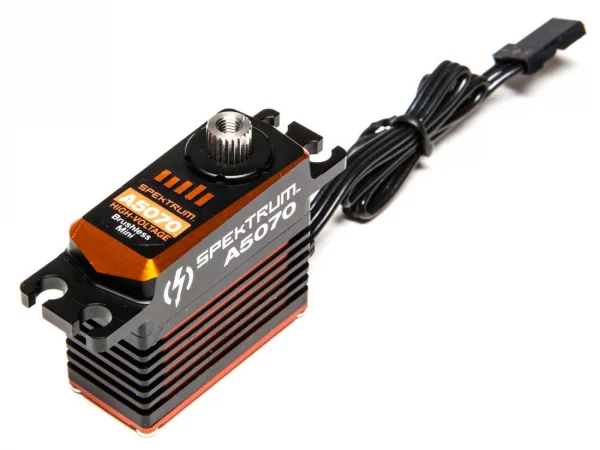

The Spektrum A5070 High Torque High Speed Mini MG HV Servo (SPMSA5070) is a compact, brushless, high-voltage digital servo engineered for precise, high-speed control in performance RC aircraft. With metal gears, dual bearings and an all‑aluminium case for durability and heat dissipation, it delivers dependable power and resolution in a mini footprint.
Key Features
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set higher to increase performance
- Acts as a heat sink for the motor and ESC
- Low deadband, high resolution, with impressive holding torque for unmatched performance
- Durable high performance finish
Overview
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with impressive efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance. The all‑aluminium case maximises durability and heat dissipation, while precision metal gears and advanced error correction with over‑current/temperature protection provide confidence for demanding pilots.
Building on this foundation, the A5070 mini servo achieves up to 190 oz‑in of torque and transit speeds down to 0.078 sec/60°, offering a strong balance of speed, holding power and longevity for performance applications.
Specifications
- Application: Airplane or Heli
- Bearing: Dual
- Bushing or Bearing: Bearing
- Connector Type: Z-Connector
- Connector Wire Gauge: 22 AWG
- Connector Wire Length: 11.8 in (300mm)
- Control System: PWM
- Deadband: 2 µs
- Gear Material: Metal
- Gear Type: Metal

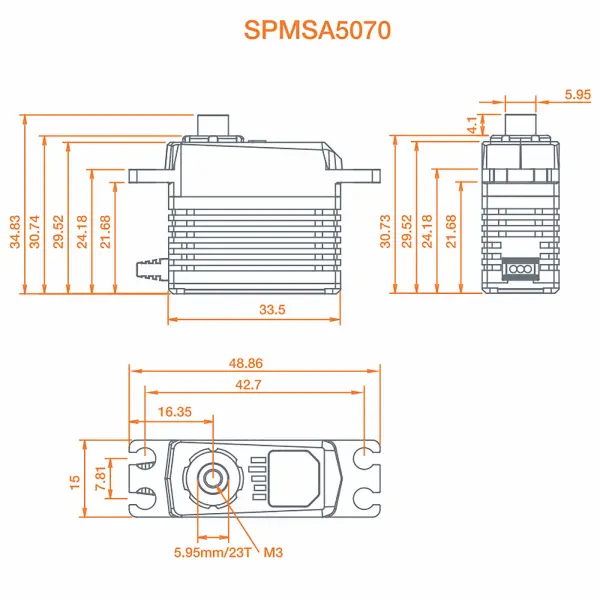

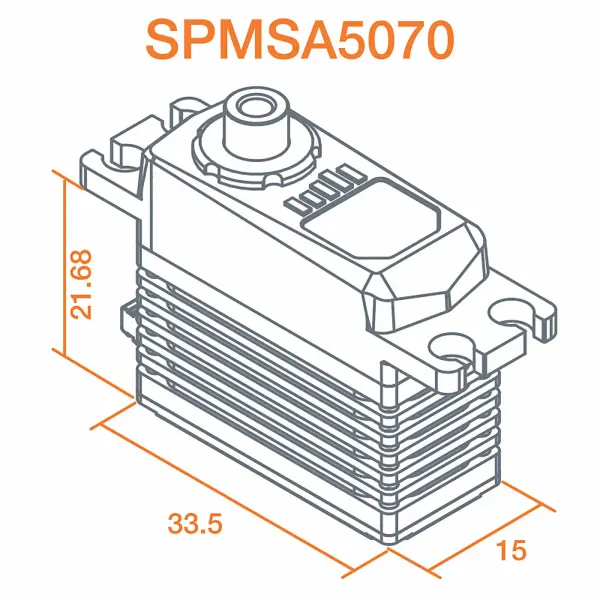

- Height: 1.16 in (29.4mm)
- Input Voltage: 6.0V to 8.4V
- Length: 1.32 in (33.5mm)
- Motor Type: Brushless
- Overload Protection: Yes
- Programmable: No
- Rotation Range: 120°
- Servo Type: Digital
- Speed: 0.094 sec/60° @ 6.0V; 0.078 sec/60° @ 8.4V
- Spline Count: 23 Teeth
- Torque: 146.43 oz‑in @ 6.0V; 190.58 oz‑in @ 8.4V
- Type: High-Torque High-Speed Metal Gear HV Digital Servo
- Weight: 1.4 oz (40g)
- Width: 0.59 in (14.9mm)
Suggested Compatibility
- RC airplanes
- RC helicopters
Secured by Stripe
A5070 High Torque High Speed Mini MG HV Servo Manuals & Guides
Manuals & Guides
Specifications
Key Features
- High torque both on HV and non-HV applications
- Allows BECs of adjustable BEC ESCs to be set higher to increase performance
- Acts as a heat sink for the motor and ESC
- Low deadband, high resolution, with impressive holding torque for unmatched performance
- Durable high performance finish
Overview
Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.
The Spektrum A5070 mini servo uses this solid foundation to achieve a whopping 190 oz/in of torque* and high transit speeds of .07 sec* in addition to its outstanding balance of durability, value, plus the peace-of-mind that sophisticated error correction and over-current/temperature protection offers. It’s an impressive feature combination that makes this mighty servo an outstanding airplane or heli servo choice.
A5070 High Torque High Speed Mini MG HV Servo Specfications:
- Application: : Airplane or Heli
- Bearing: : Dual
- Bushing Or Bearing: : Bearing
- Connector Type: : Z-Connector
- Connector Wire Gauge: : 22 AWG
- Connector Wire Length: : 11.8 in (300mm)
- Control System: : PWM
- Deadband: : 2µs
- Gear Material: : Metal
- Gear Type: : Metal
- Height: : 1.16 in (29.4mm)
- Input Voltage: : 6.0V to 8.4V
- Length: : 1.32 in (33.5mm)
- Motor Type: : Brushless
- Overload Protection: : Yes
- Programmable: : No
- Rotation Range: : 120º
- Servo Type: : Digital
- Speed: : 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V
- Spline Count: : 23 Teeth
- Torque: : 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V
- Type: : High-Torque High-Speed Metal Gear HV Digital Servo
- Weight: : 1.4 oz (40g)
- Width: : 0.59 in (14.9mm)
Key Info:
- Brand: Spektrum
- Part No: SPMSA5070
- Barcode: 0605482279281
- Fitment: Option Part
