XRay Adjustable Multi-Flex Steering Brace XR362560

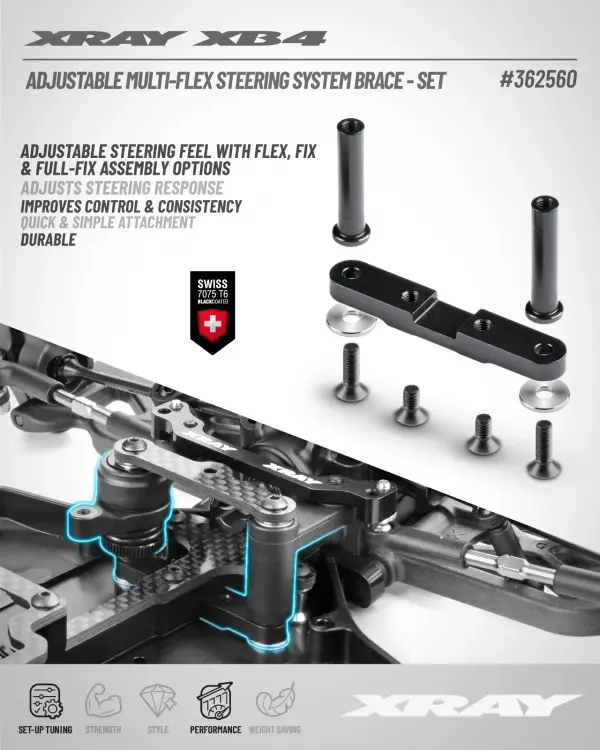

The XRay Adjustable Multi-Flex Steering System Brace - Set, part number XR362560, is an adjustable chassis brace for tuning steering characteristics. It changes the mounting position of the servo saver pivot shafts in relation to the chassis, allowing the steering response to be adjusted for different track requirements.

The brace provides three assembly options. The Flex arrangement uses the centre mounting holes only, attaching the pivot shafts exclusively to the aluminium brace for a more aggressive steering response. This configuration is intended for tracks where increased steering is needed. The Fix arrangement uses the outside mounting holes with shims between the brace and chassis, giving steering characteristics between the Flex and Full Fix settings.

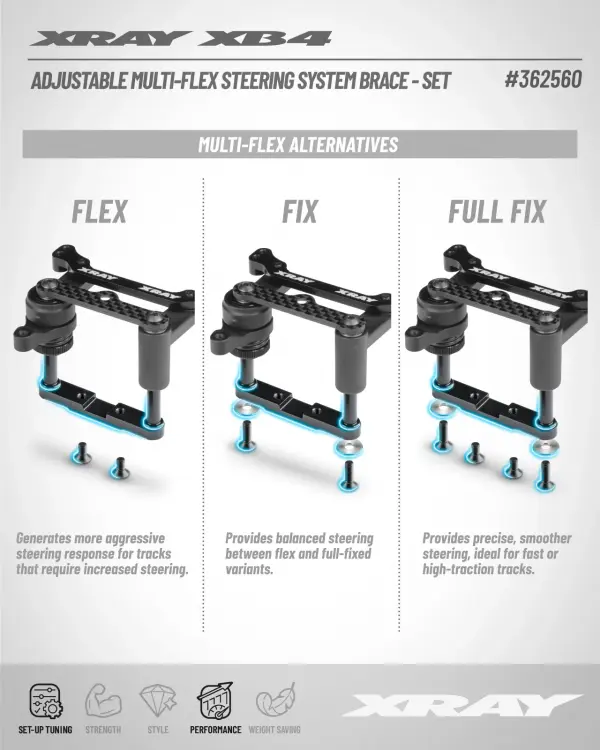

Adjustment Options

• Flex: centre mounting holes only
• Fix: outside mounting holes with shims between the brace and chassis
• Full Fix: outside mounting holes with shims and centre mounting holes together

Using the Full Fix arrangement creates the stiffest configuration, delivering precise, smoother steering for fast or high-traction tracks. The system is designed for quick, simple attachment while providing a way to adjust steering response, control and consistency through the brace mounting position.
