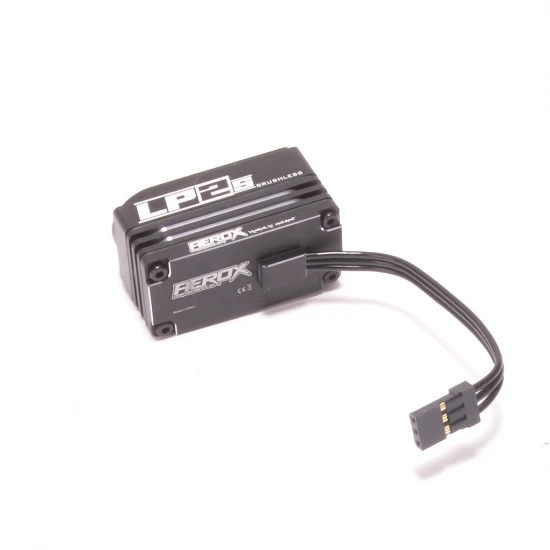

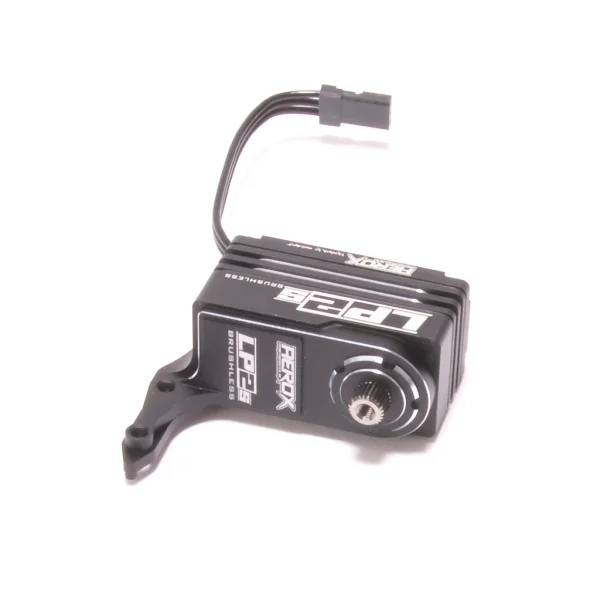

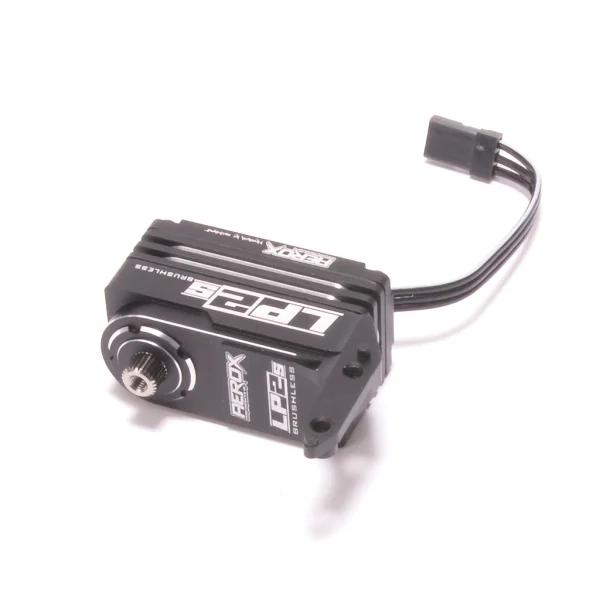

Aerox LP2S Brushless Servo – Mi9 80mm (SCH-AX104)

The Aerox LP2S Brushless Servo (SCH-AX104) brings competition-ready performance to 1/10 touring cars in a super low-profile, lightweight package. Built around a 4‑pole brushless motor and a robust full metal case, it combines precision, speed and durability with a titanium output shaft and titanium/7075 geartrain. A bottom-exit cable simplifies receiver placement, while advanced radio support enables fast setup for serious racers.

Key Features

• 4‑pole brushless motor for strong holding power and precise control
• Super low-profile case and just 47.0 g for optimised chassis balance
• Titanium output shaft with a stated 50% increase in hardness and toughness
• Titanium & 7075 gears and dual ball bearings for durability and smooth operation
• Bottom-exit output wire for tidy installs; 80mm lead length
• High-speed mode support with major radios
• FlySky i‑BUS2 support for remote parameter setup and temperature sensing on the NB4+ Pro
• Full metal case construction

Performance Specifications

• Torque: 15.0 kg‑cm (6.0V) / 18.0 kg‑cm (7.4V) / 23.0 kg‑cm (8.4V)
• Speed: 0.080 s (6.0V) / 0.073 s (7.4V) / 0.065 s (8.4V)
• Operating voltage: 6.0–8.4V DC
• Working frequency: 1520µ / 50–1666 Hz
• Operating temperature: −10°C to 60°C
• Bearing type: Ball bearing ×2
• Motor type: 4‑pole brushless
• Gear type: Titanium & 7075
• Size: 41.0 × 20.0 × 23.6 mm
• Weight: 47.0 g
• Lead length: 80mm (FT9 version with 180mm lead also available: AX105)

Suggested Compatibility

• Direct-mount layout for the Schumacher Mi9 touring car

Engineered for high-level competition, the Aerox LP2S delivers the speed and torque modern touring cars demand, in a compact footprint that helps keep your build clean and responsive.
