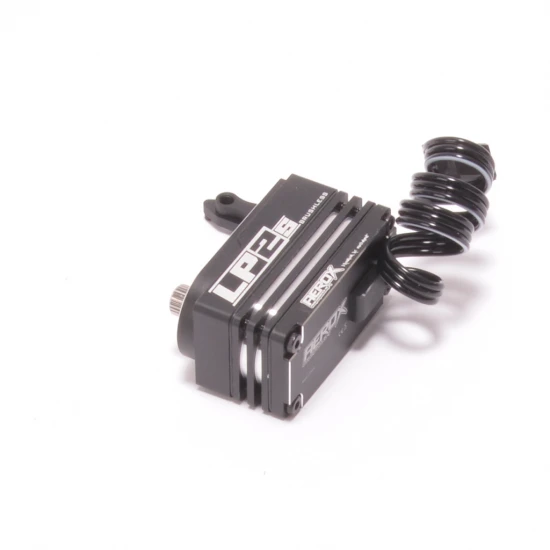

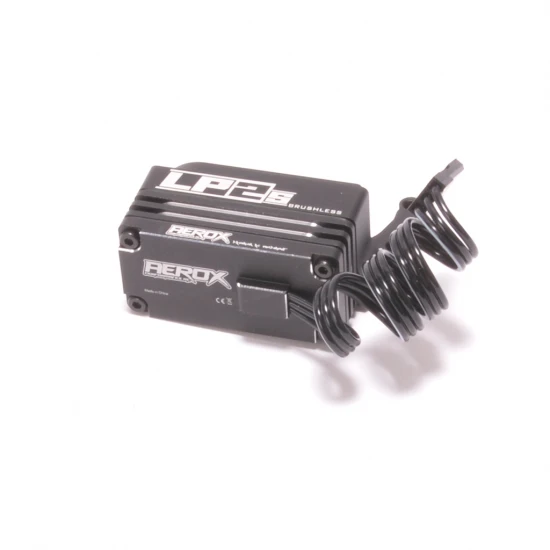

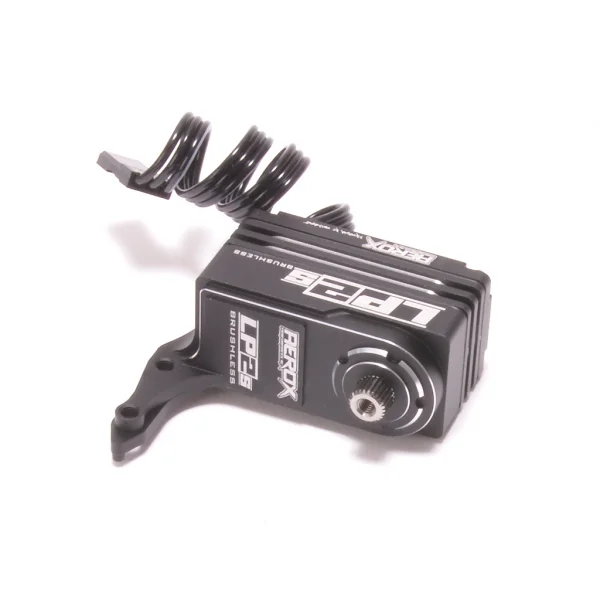

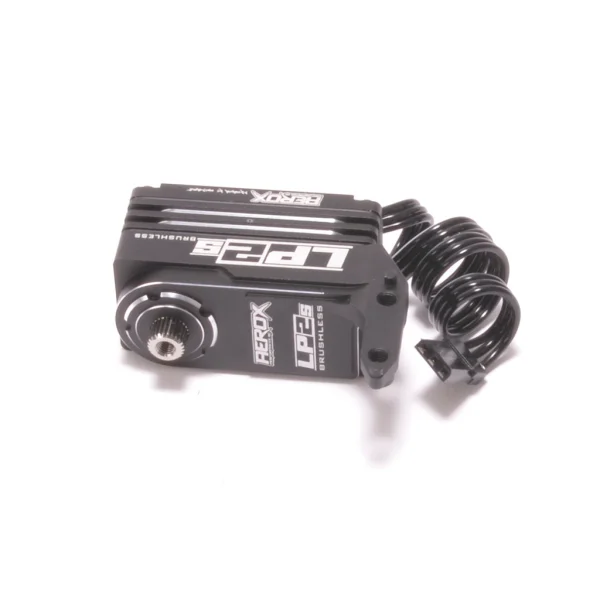

Aerox LP2s Brushless Servo FT9 180mm
Brand: Aerox
Part No: SCH-AX105
Shadow Stock: Usually ships within 2 days
Finance options available at checkout.
Fits These Models (2)
Show all 2 models
Description
The Aerox LP2s Brushless Servo brings competition-grade performance to 1/10 on-road builds in a super low-profile 23mm case and just 47g. Built around a 4‑pole brushless motor with a full metal case, titanium output shaft and titanium/steel gear train, it delivers rapid response and strong holding power with modern radio compatibility. Designed with a bottom-exit lead for tidy routing, it offers a clean, weight-conscious installation. Suggested compatibility: Schumacher FT9 (direct-mount style).
Overview
Optimised for high-level racing, the LP2s refines speed, torque and durability while keeping a compact footprint. The titanium output shaft increases hardness and toughness, and support for high-speed radio modes plus FlySky i‑BUS2 enables remote parameter setup and temperature sensing on the FlySky NB4+ Pro.
Performance Specifications
- Motor: 4‑pole brushless
- Profile/Height: 23mm low profile
- Weight: 47.0g
- Operating voltage: 6.0–8.4V DC
- Torque (6.0V): 15.0 kg‑cm (208.3 oz‑in)
- Torque (7.4V): 18.0 kg‑cm (250.0 oz‑in)
- Torque (8.4V): 23.0 kg‑cm (319.4 oz‑in)
- Speed (6.0V): 0.080s
- Speed (7.4V): 0.073s
- Speed (8.4V): 0.065s
Build And Connectivity
- Case: Full metal for rigidity and heat dissipation
- Gears: Titanium and steel for strength and longevity
- Output shaft: Titanium, enhanced hardness and toughness
- Lead exit: Bottom of case for easier receiver placement
- Radio support: High-speed modes of major radios; FlySky i‑BUS2 with remote parameter setup and temperature sensing on NB4+ Pro
Ideal Use
Suited to modern 1/10 touring cars where fast transit times and precise centring are critical. The direct-mount style can offer a cleaner, lighter installation in relevant chassis. Suggested compatibility: Schumacher FT9.
Part number: SCH‑AX105 – Aerox LP2s Brushless Servo – FT9 180mm.
Secured by Stripe
Aerox LP2S Brushless Servo - FT9 180mm Manuals & Guides
How-To Guides & Articles
Specifications
Aerox LP2s is a 1/10th Brushless servo which is direct mount for the Schumacher FT9.
The LP2s version see's improvement in having a 4 pole Brushless Motor, only 47g and super low profile at 23mm, 3mm shorter than the LP1s. Also includes a Titanium output shaft with 50% hardness and toughness increase. The output wire is now from the bottom of the case, making the receiver placement easier. Now compatible with the high-speed mode of major radios and the i-BUS2 protocol of FlySky Radio, it can remotely setup parameters and sense the temperature data on the FlySky NB4+ Pro Radio.
Direct mounting servo's can give a cleaner look and reduce weight.
This servo is for high level competition, boasing a full metal case, brushless motor, titanium and steel gears and is perfectly specified for speed and torqe requirements of modern touring cars.
Torque(6.0V): 15.0 kg-cm (208.3 oz/in)
Torque(7.4V): 18.0 kg-cm (250.0 oz/in)
Torque(8.4V): 23.0 kg-cm (319.4 oz/in)
Speed: 0.080 sec (6.0V)
Speed: 0.073 sec (7.4V)
Speed: 0.065 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 47.0 g (1.66 oz)
Key Info:
- Brand: Aerox
- Part No: SCH-AX105
- Barcode: 5051294201678
- Fitment: Option Part
