Arrma BLX100 3S Brushless 100A Waterproof ESC (AR390069)
Brand: Arrma
Part No: AR390069
Supplier Stock: Expected August 1st
Request Stock NotificationFinance options available at checkout.
Description

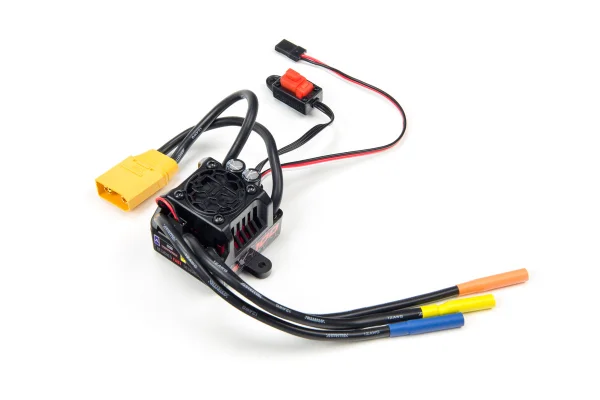

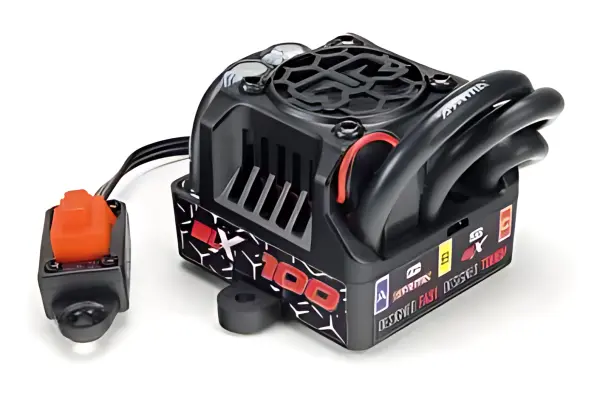

The Arrma BLX100 100A waterproof brushless ESC (part number AR390069) delivers consistent power control for 2S–3S LiPo and 4–9 cell NiMH setups. It comes pre-fitted with an EC5 battery connector, 12AWG wiring and a built-in cooling fan to manage heat during demanding runs. Safety and reliability are enhanced with over-voltage protection and a two-stage LiPo cut-off, while the 6V/4A BEC and three-mode throttle profile (FWD/Reverse/Brake) provide confident control.
Key Features
- Waterproof 100A brushless ESC for 2S–3S LiPo or 4–9 cell NiMH
- Factory-fitted EC5 battery connector and 12AWG high-quality wires
- Built-in cooling fan for reduced heat during intense driving
- Over-voltage protection and two-stage LiPo cut-off
- 6V/4A BEC for reliable receiver and servo power
- Three-mode throttle profile: Forward, Reverse and Brake
Specifications
- Battery usage: 2S LiPo (7.4V) or 3S LiPo (11.1V) / 4–9 cell NiMH
- Low Voltage Cut-Off: 3.4V per cell
- Thermal protection: 125°C (257°F)
- Over-voltage protection: over 12.6V
- BEC: 6V output, 4A current
- Dimensions (L x W x H): 43 x 54.5 x 34 mm (width incl. hold-down tabs)
- Weight: 120 g
- Motor bullet connector size: 4 mm
- Receiver wire length: 170 mm; Battery wire length: 125 mm; Motor wire length (incl. connector): 200 mm
- Switch size: 18 x 12.8 mm; Switch lead length: 110 mm
What’s Included
- 1 x BLX100 Brushless 3S ESC
Secured by Stripe
ARAM0160 Arrma Blx100 Brushless 3S ESC Manuals & Guides
Specifications
The BLX100 100A waterproof ESC provides consistent power control and is 3S LiPo ready.
ARAM0160 Arrma Blx100 Brushless 3S Esc Features:
Fitted with a super-reliable EC5 connector and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX100 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage | 2S LiPo (7.4V) or 3S LiPo (11.1) / 4-9 Cell NiMH |
| Low Voltage Cut-Off (LVC) | 3.4V per cell |
| Thermal Protection Temperature | 125°C / 257°F |
| Over-Voltage Protection | Over 12.6V |
| BEC Voltage | 6V |
| BEC Current | 4A |
| ESC Length | 43mm / 1.69" |
| ESC Height | 34mm / 1.34" |
| ESC Width | 54.5mm / 2.15" (Including hold-down tabs) |
| ESC Weight | 120g / 4.2oz |
| Receiver Wire Length | 170mm / 6.70" |
| Battery Wire Length | 125mm / 4.92" |
| Motor Wire Length (Including Connector) | 200mm / 7.87" |
| Switch Length | 110mm / 4.33" |
| Switch Width | 12.8mm / 0.5" |
| Switch Height | 18mm / 0.71" |
| Motor Bullet Connector Size | 4mm / 0.16" |
| Wire Specifications | 12AWG |
| ESC Battery Connector Type | EC5 |
ARAM0160 Arrma Blx100 Brushless 3S Esc Includes:
1 x BLX100 Brushless 3S ESC
Key Info:
- Brand: Arrma
- Part No: AR390069
- Barcode: 5052127030151
- Fitment: Option Part
- Fitment: Standard Part
Additional Categories:
