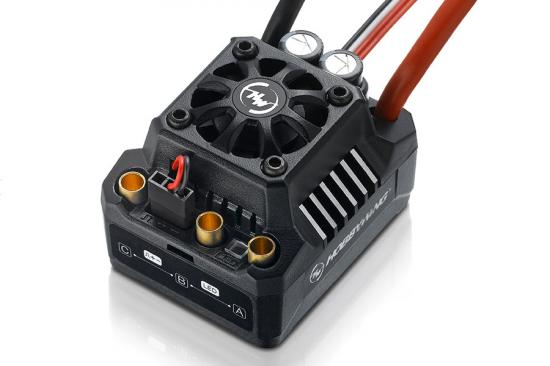

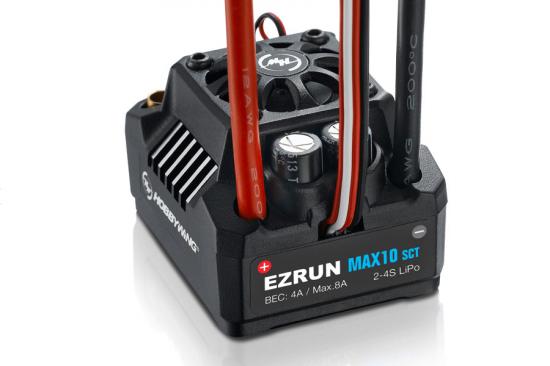

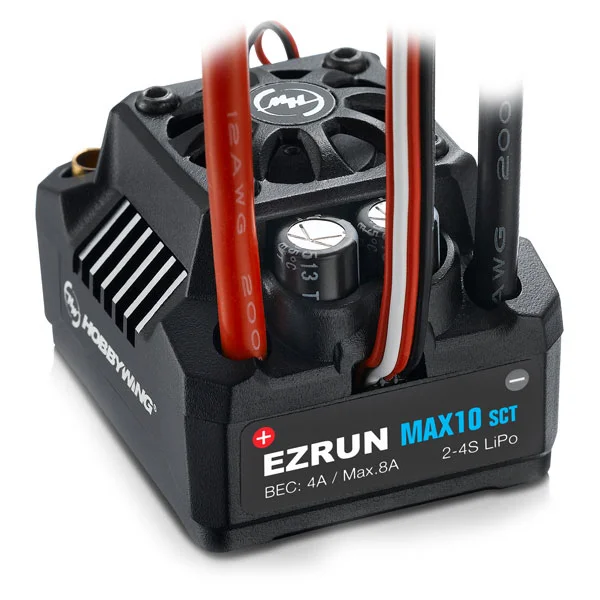

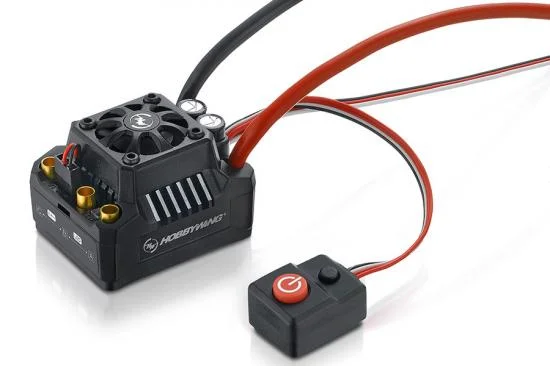

Hobbywing EZRun MAX10-SCT 120A ESC - XT90
Brand: Hobbywing
Part No: HW30102601
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #HW30102603 AS A REPLACEMENT
The Hobbywing EZRun MAX10-SCT 120A ESC with XT90 connector (part number HW30102601) is a rugged, high-performance brushless speed controller for demanding 1/10 applications. It delivers strong acceleration for instant launches, stable power for high-speed runs and the resilience to keep going over rough terrain. With a waterproof and dust-proof design, it’s ready for all-weather running. Suggested compatibility includes 1/10 trucks, short-course trucks and monster trucks.
Tune key parameters to suit your driving style using Hobbywing USB LINK software and a multifunction LCD program box with a laptop, and benefit from regular, free firmware updates. An advanced and secure electronic switch enhances reliability, while innovative filter capacitor thermal protection helps safeguard the ESC under heavy loads. A robust switch-mode BEC provides 6V/7.4V at up to 3A for reliable onboard power.
Features
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- Innovative Filter Capacitor Thermal Protection
- Regular Firmware Updates Free of Charge
Specifications
- Scale: 1/10th
- Brushed/Brushless: BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Continuous/Peak Current: 120A / 760A
- Input: 2–4S LiPo / 6–12 cells NiMH
- BEC Output: Switch-mode, 6V/7.4V, 3A
- Input Wires: Red 12AWG 200mm ×1 / Black 12AWG 200mm ×1
- Output Wires: Black 12AWG 200mm ×3
- Input Connectors: XT90
- Output Connectors: 4.0mm bullet connectors (female)
- Fan Size: 25.0 × 25.0 × 10.0mm
- Fan Voltage Range: 5–7.4V
- WiFi Module: Supported
- Program Port: FAN/Program port
- Size: 49.0 × 39.5 × 34.7mm
- Weight: 105g
Secured by Stripe
HOBBYWING EZRUN MAX10-SCT ESC SPEED CONTROLLER
The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.
With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.

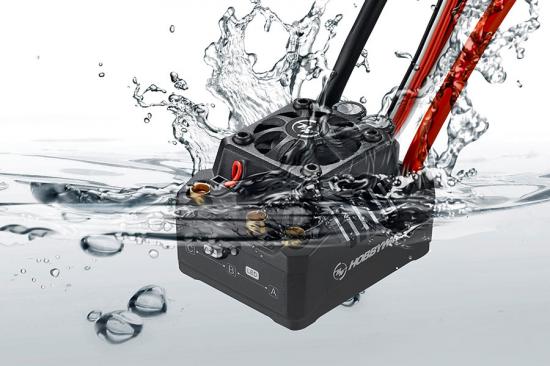

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.
You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.
EzRun MAX10 SCT Features:
- High Reliability & Durability
- Great Flexibility & Versatility
- Advanced and Secure Electronic Switch
- Applicable to All Weather Conditions
- Innovative Filter Capacitor Thermal Protection
- Regular Firmware Updates Free of Charge
Spec Check:
- Scale: 1/10th
- Brushed/Brushless:BL
- Sensored/Sensorless: SL
- Waterproof: Yes
- Cont./Peak Current: 120A/760A
- Input: 2-4S LiPo/6-12 Cells NiMH
- BEC Output: Switch Mode:6V/7.4V,3A
- Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
- Output Wires: Black-12AWG-200mm*3
- Input Connectors: XT90
- Output Connecotors: 4.0 Bullet Connectors (Female)
- Fan Size: 25.0x25.0x10.0mm
- Fan Voltage Range: 5-7.4V
- WiFi Module: Supported
- Program Port: FAN/Program Port
- Size: 49.0x39.5x34.7mm
- Weight: 105g
Key Info:
- Brand: Hobbywing
- Part No: HW30102601
- Barcode: 6938994405409
- Motor Type: Brushless
- LiPo Compatible: Yes
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
Well made and perfect for the job (replacement for a Rustler VXL-3s that turned out to be slightly less waterproof than I hoped). One thing to point out - the Max10-SCT that I received was fitted with an XT90 battery connector, despite the spec showing that none was fitted. I assume removing this will invalidate a warranty, so a converter will be required if you have non XT90 batteries.
WRITE A REVIEW
Questions & Answers
This will run the motor but you would need to change the bullets to 3.5mm
The standard Max10 would be the system to look at for that chassis :)
I think you'd be better looking at a MAX8 to be on the safe side HW30103200
Input is 2S - 4S Lipo, so 7.4 - 14.4V
Yes, that should be fine
Not something we can advise on just from that sorry - it would depend on your chassis weight and driving style.
My advice would be give it a shot and monitor temperature etc to see how you get on and gear accordingly
In theory, yes - with a suitable low KV motor and a light weight car.
In most setups 3S would be your go-to on this
Yes, that would make a nice upgrade
Yes, but submerging is not recommended
Yes so long as current is below 120A
No, these are sensorless
Yes, that should work well
This can deliver 120A, so should be OK for a 6T motor in most setups. As always - keep an eye on temperatures and gear accordingly.
This comes with 4mm bullets, your Velineon motor likely has 3.5mm bullets so you would need to chop those off and solder on something like RDNA0272
No battery connector is fitted to these, so you would simply solder on your choice. We can do this for you (at a small extra charge) if required.
That depends on the current draw of your 3.5T motor - this ESC has a max limit of 120A, so I would imagine it should be fine with most 3.5T motors.
