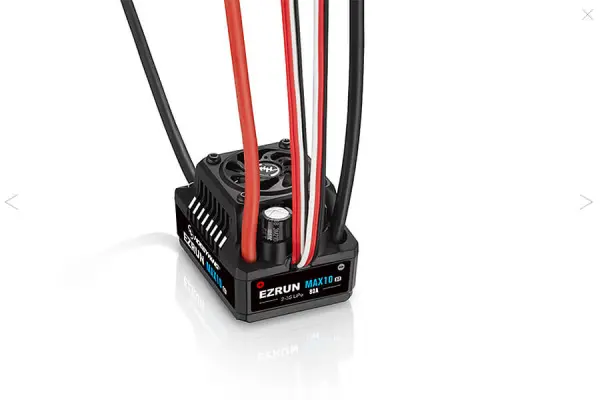

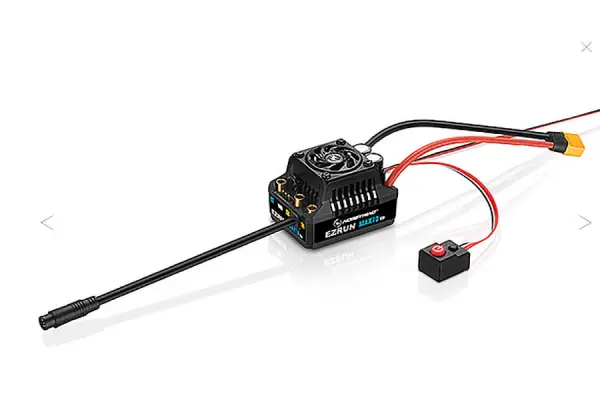

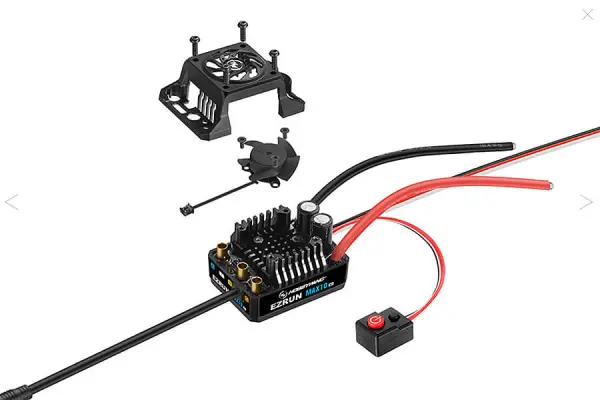

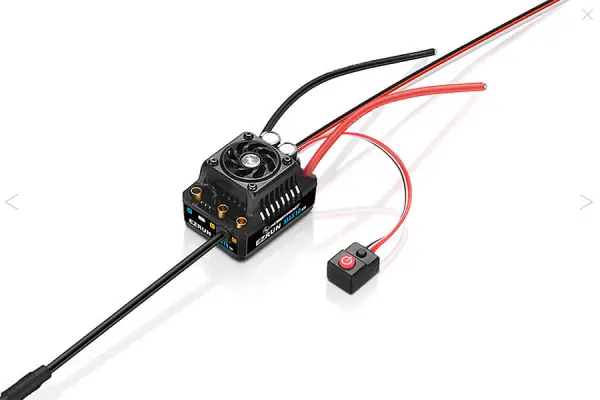

Hobbywing EZRun MAX10 G2 140A Speed Control
Brand: Hobbywing
Part No: HW30102603
In Stock: Usually ships same day
The Hobbywing EZRun MAX10 G2 140A Speed Control (HW30102603) is a waterproof 1/10-scale brushless ESC designed for robust performance in RC short course trucks, trucks and monster trucks. It supports 2–4S LiPo power, delivers a 140A continuous/880A peak current rating, and includes a strong 6/7.4V, 5A BEC to reliably power high-torque servos and onboard electronics.
Key Specifications
- Scale: 1/10
- Brushed/Brushless: BL
- Sensored/Sensorless: SD
- Waterproof: Yes
- Continuous/Peak Current: 140A / 880A
- Input Voltage: 2–4S LiPo
- BEC Output: 6/7.4V, 5A
- Input Wires: Red 12AWG x1, Black 12AWG 150mm x1
- Input Connector: XT60
- Motor Output Connectors: 4.0mm gold (female)
Cooling Fan
- Size: 30 x 30 x 10 mm
- Voltage: 5–7.4V
- Power Source: Powered by BEC
Programming & Firmware
- Set Button on ESC: No
- LED Program Box: Supported
- LCD Program Box: Supported (G2)
- OTA Programmer: Supported
- Programming Port: Separate
- Firmware Upgrade: Supported
Size & Weight
- Dimensions: 53 x 39.5 x 37.2 mm
- Weight: 120 g (with wires)
Suggested Compatibility & Applications
- Motor Types: SL BL motors / SD BL motors (as specified)
- Vehicles: 1/10 short course truck, truck, monster truck
- With 3S LiPo: KV < 4000, 3665 size motor
- With 4S LiPo: KV < 2600, 4268 size motor
Combining waterproof construction with high current handling and versatile programming options, the Hobbywing EZRun MAX10 G2 140A ESC offers dependable control for demanding 1/10 RC applications. The separate programming port and support for LED/LCD (G2) program boxes and the OTA Programmer make setup and tuning straightforward. XT60 input, 4.0mm motor connectors, and an efficient 30mm fan complete a practical, performance-driven speed controller for brushless 1/10 platforms.
Secured by Stripe
Hobbywing EZRun MAX10 G2 140A Speed Control Specifications
Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof
Specifications
Cont./Peak Current: 140A/880A
Input Voltage: 2-4S LiPo
BEC Output: 6/7.4V, 5A
Wires & Connectors
Input Wires: Red-12AWG*1 Black-12AWG-150mm*1
Output Wires:
Input Connectors: XT60
Output Connectors: 4.0mm Gold (Female)
Fan
Size: 30x30x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC
Esc Programming Via
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported (G2)
OTA Programmer: Supported
Programming Port: Separate
Firmware
Firmware Upgrade: Supported
Size & Weight
Size: 53mm*39.5mm*37.2mm
Weight: 120g(w/Wires)
Applications
Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th Short Course Truck, Truck and Monster Truck
KV Rating / T Count: With 3S LiPo: KV<4000 3665 Size Motor, With 4S LiPo: KV<2600 4268 Size Motor
Key Info:
- Brand: Hobbywing
- Part No: HW30102603
- Barcode: 6938994405546
- Motor Type: Brushless
- LiPo Compatible: Yes
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
Very good esc other than the time it takes the build-in ubec to power on the receiver, it takes too long and you will miss the time to be able to calibrate the throttle end points. I have found on the 2 of these I now have, I had to remove the red+ wire from plug going to receiver and plug an external ubec into the receivers bind/batt port to get the receiver powered up before trying the calibration steps so that I have full forward/brake/reverse otherwise getting the cars to reverse was very hit and miss. Just make sure to remove the red+ wire otherwise you will kill your receiver with to higher voltage and then put it back once done and running of just the esc for power.
WRITE A REVIEW
Questions & Answers
Yes it will work but the connectors may be different sizes.
This is the only one we know of that will cope with 3.5t SCH-SK-300064-01 and that is for on road only , a 3.5t is much too hot for buggies and will pop.
It will work but will require an adapter of some kind as the bullet leads on the MT10 motor are a bit to small.
Yes it would but there will be no benefit its just overkill as the motor can still only run 3s lipo maximum.
Yes, this would work on that motor
