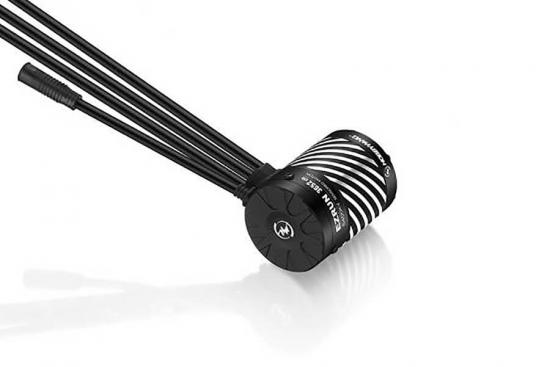

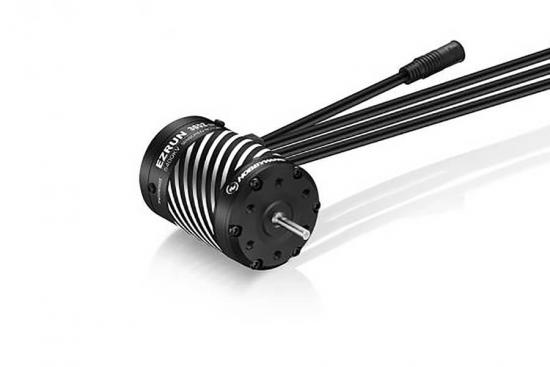

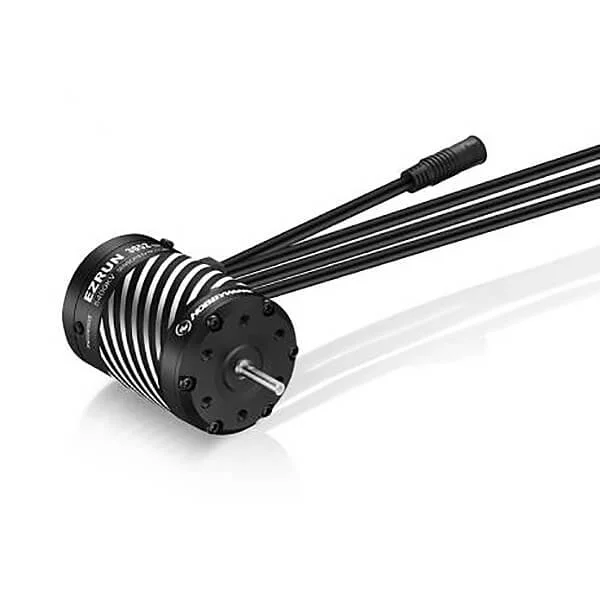

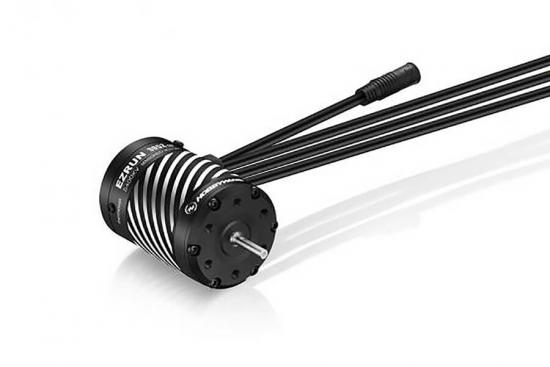

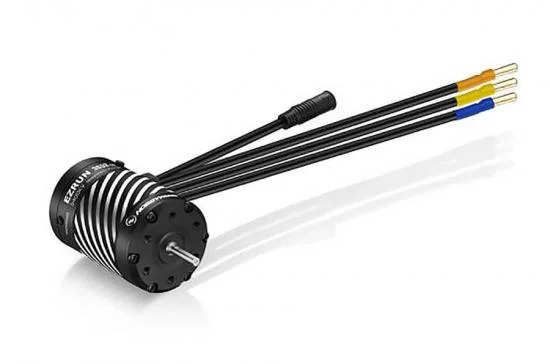

Hobbywing Ezrun 3652Sd 3300Kv Black G3 Sensorless Motor

Hobbywing Ezrun 3652Sd 3300Kv Black G3 Sensorless Motor

Brand: Hobbywing

Part No: HW30402603

$65.60 ~~RRP $72.89~~

In Stock: Usually ships same day

Collect Instore

Request Price Match Ask a Question Write a Review

The Hobbywing EzRun 3652SD 3300KV Black G3 motor (HW30402603) is a 1/10 scale BL brushless unit featuring an SD sensored setup and a 4‑pole design. It delivers smooth, consistent power on 2–3S LiPo and is well suited to a wide range of RC car applications where dependable, efficient performance is required.

Key Specifications

Type: 1/10 scale BL (brushless)
Sensored / Sensorless: SD
Pole Count: 4
KV Rating: 3300KV
LiPo Cells: 2–3S
No‑Load Current: <3.9A

Size & Weight

Outer Diameter: 37mm
Length: 53mm
Shaft Diameter: 3.175mm (0.125 in)
Weight: 228g
Front Bearing: D13 × D5 × T4
Rear Bearing: D11 × D5 × T5

Suggested Compatibility & Use

1/10th on‑road
1/10th off‑road
Short course truck (light‑duty)

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

HOBBYWING EZRUN 3652SD 3300KV BLACK G3 SENSORED MOTOR

Specifications

Type
Scale: 1/10th
Brushed / Brushless: BL
Sensored / Sensorless: SD
Pole Count: 4

Relevant Parameters
KV Rating: 3300KV
LiPo Cells: 2-3S
No-Load Current(A): <3.9A

Size & Weight
O.D.(mm): 37
Length (mm): 53
Shaft Diameter (mm): 3.175(0.125in)
Weight (g): 228g
Front Bearing: D13*D5*T4
Rear Bearing: D11*D5*T5

Other Parameters
Application: 1/10th On-Road / Off-Road Short Course Truck (light-Duty)

Key Info:

Brand: Hobbywing
Part No: HW30402603
Barcode: 6938994405560

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Reviews

No specific product reviews yet, why not write one?

WRITE A REVIEW

Name

Rating

Your Review

All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?

Would this be able to handle a Hobbywing EZRun MAX10 G2 140A Speed Control on a 4s Lipo?

Micah Patten / 31st December 2024

That ESC has a limit of 2400kv on 4s so would more than likely damage it.

Rich @ Wheelspin Models

Would this work with a 1060 hobbywing quick run esc?

Ethan Brown / 1st September 2024

Unfortunately not - the 1060 is for brushed motors only. That brushless motor requires a G2 Hobbywing MAX10 sensored ESC to run it.

Rich @ Wheelspin Models

What battery’s can I use with this motor please 3652 sl G2 3300kv

Darren / 20th August 2024

This will run on 2s or 3s lipo with the correct ESC

Si @ Wheelspin Models
