Arrma BLX3660 3200kV Brushless Motor 4-Pole (AR390214)
Brand: Arrma
Part No: AR390214
Supplier Stock: Expected August 1st
Request Stock NotificationFinance options available at checkout.
Fits These Models (3)
Show all 3 models
Description

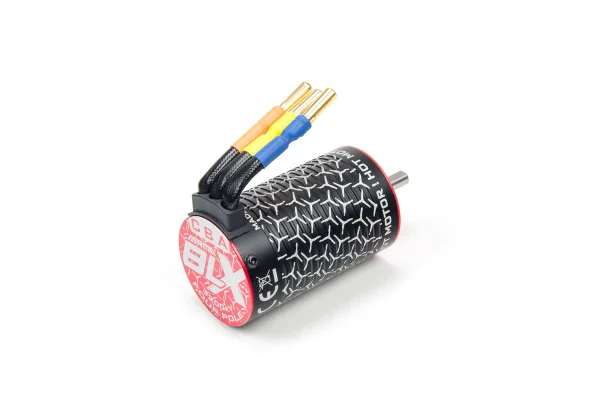

The Arrma ARAG1023 BLX3660 3200kV Brushless Motor, part number AR390214, delivers strong speed and torque for 1/10-scale applications. Its 4-pole design provides smooth, consistent power, while the etched black aluminium can with finned sections helps shed heat. Gold 4mm bullet connectors make installation and maintenance straightforward.
Features
- 4-pole internal configuration for smooth, consistent power delivery
- Black etched aluminium can for a premium look
- Finned can design aids heat dissipation
- Gold 4mm bullet connectors for quick, secure connections
Key Specifications
- Motor type: Brushless
- kV rating: 3200kV
- Poles: 4
- Length: 60mm (2.36")
- Diameter: 30mm (1.18")
- Shaft length: 18.5mm (0.73")
- Shaft diameter: 5mm (0.2")
- Mounting hole diameter: M3
- Cable length (including connector): 45mm (1.77")
- Connector diameter: 4mm (0.16")
- Weight: 289g (9.18oz)
What’s Included
- 1 x BLX 3660 3200kV brushless motor
Required to Complete
- Suggested compatibility: ARRMA BLX100 ESC (#AR390069)
Secured by Stripe
Arrma ARAG1023 BLX3660 3200Kv Brushless Motor Manuals & Guides
Specifications
The BLX 3660kV brushless motor provides lots of speed and torque, and is perfectly balanced for use with the ARRMA BLX100 ESC unit.
Arrma Arag1023 Blx3660 3200Kv Brshls 10Th 4-Pole Mtr 4X4 Features:
A beautifully etched black aluminum motor can provides a premium look, while a 4 pole internal configuration keeps the power supply smooth and consistent - Gold bullet connectors ensure fast and easy wire removal when you need to clean your vehicle - The aluminum motor can provides increased heat dissipation via the finned body section
SPECIFICATION
| Motor Type | Brushless |
| Motor kV (# of Turns for brushed) | 3200V |
| Poles | 4 Pole |
| Motor Length | 60mm / 2.36" |
| Diameter | 30mm / 1.18" |
| Shaft Length | 18.5mm / 0.73" |
| Shaft Diameter | 5mm / 0.2" |
| Motor Mounting Hole Diameter | M3 |
| Motor Cable Length (Including Connector) | 45mm / 1.77" |
| Motor Connector Diameter | 4mm / 0.16" |
| Motor Weight | 289g / 9.18 oz |
Arrma Arag1023 Blx3660 3200Kv Brshls 10Th 4-Pole Mtr 4X4 Includes:
1 x BLX 3660kV Brushless Motor
Arrma Arag1023 Blx3660 3200Kv Brshls 10Th 4-Pole Mtr 4X4 Requires:
Recommended for use with #AR390069
Key Info:
- Brand: Arrma
- Part No: AR390214
- Barcode: 5052127030144
- Fitment: Standard Part
