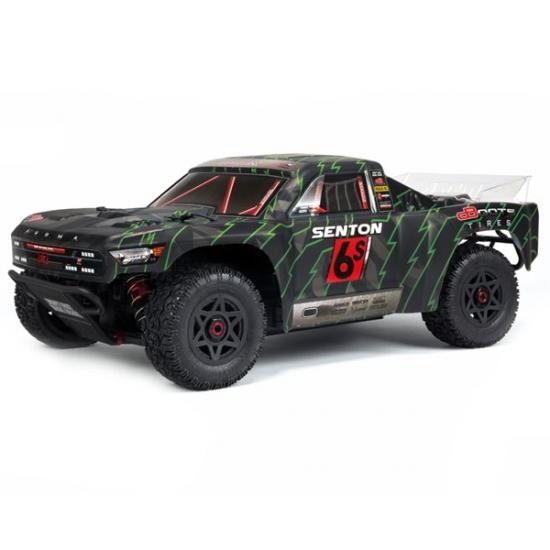

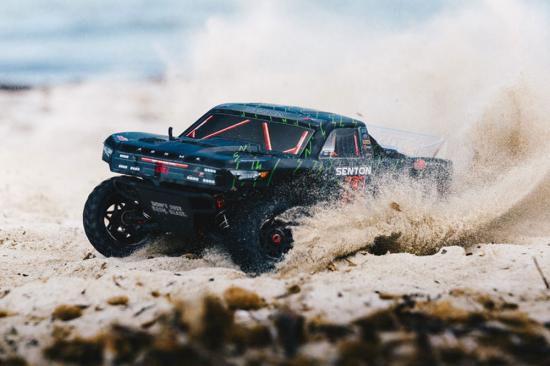

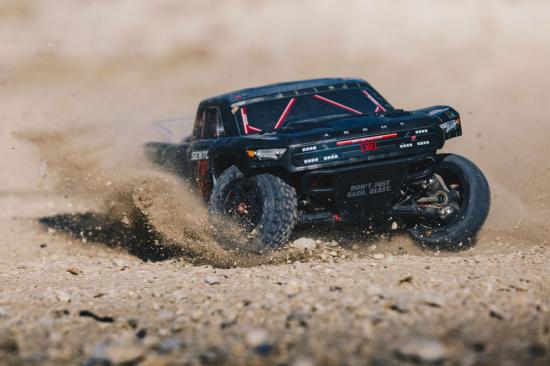

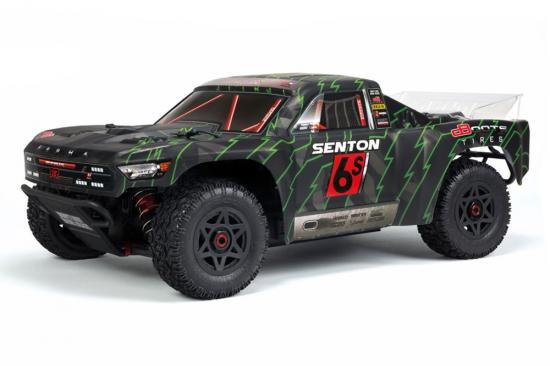

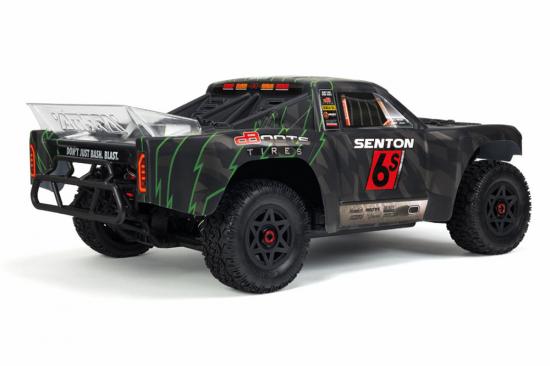

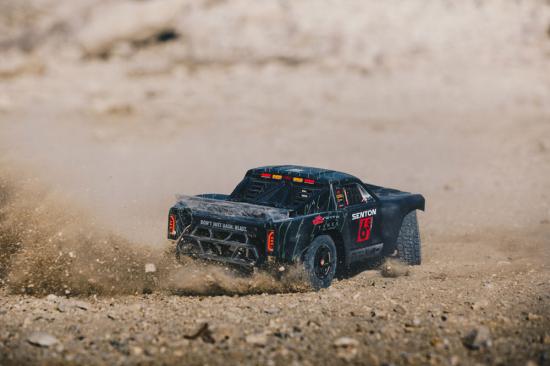

Arrma Senton 6S

Key Features

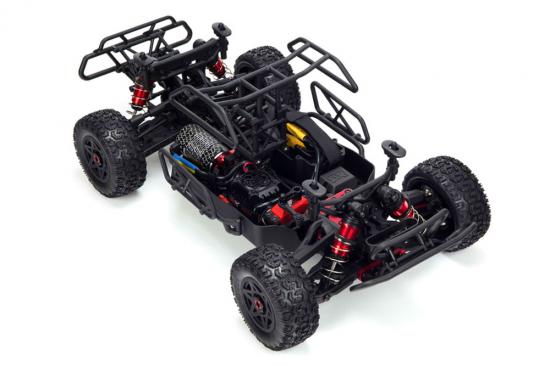

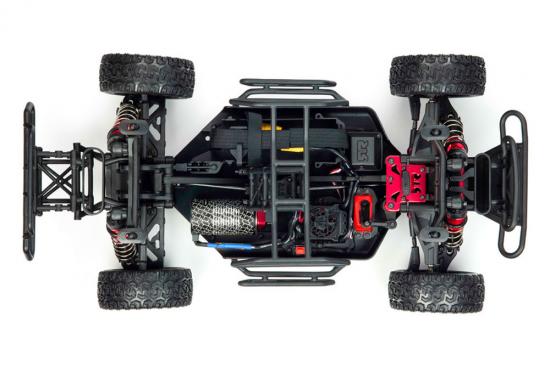

• Chassis: 0.12" (3mm) thick aluminum, with side impact bumpers
• Drive: Four wheel with CVD driveshafts
• Radio: Tactic TTX300 3-channel with user programmable 3rd channel, steering rate adjustment, steering and throttle trim & end point adjustments, 3-channel TR326 high voltage (7.4V) micro receiver with failsafe, 70/30 throttle setting
• Steering Servo: ADS-15M metal geared with 208 oz/in torque, .12 sec @ 60° transit speed
• Motor: 2050kV brushless with 12T pinion gear
• ESC: Arrma BLX185 150A

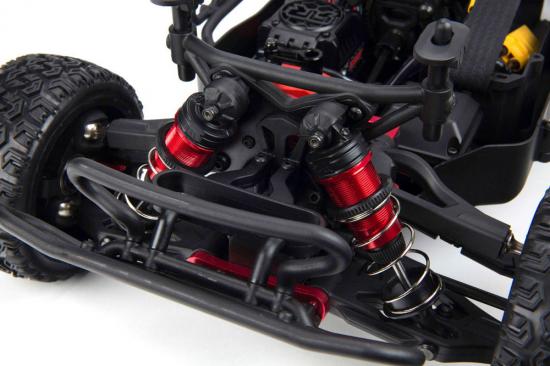

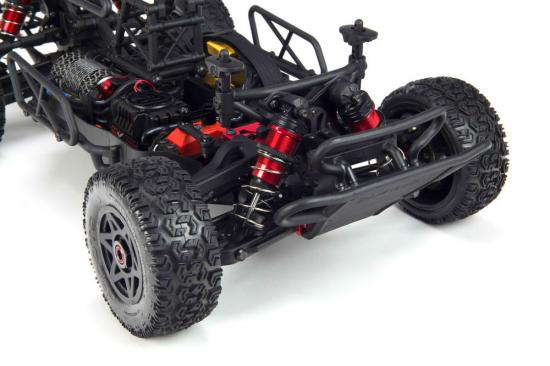

• Shocks: Aluminum body, oil filled, big bore, plastic top and bottom caps and preload adjusters
• Shock Towers: 0.20" (5mm) thick aluminum
• Suspension: Reinforced hangers with inboard hinge pins that are less likely to pop out

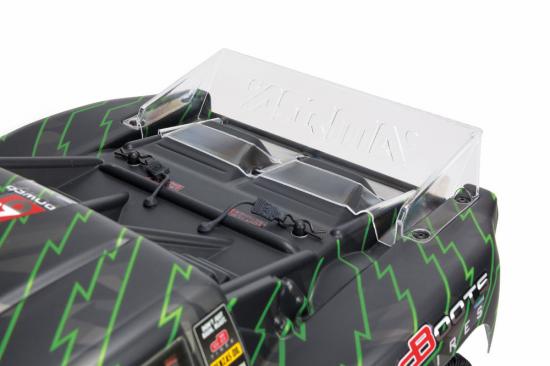

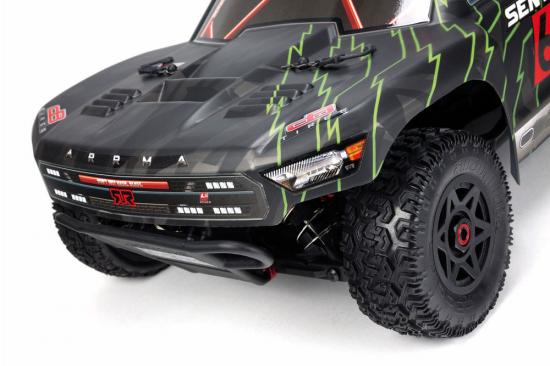

• Body: Trimmed and painted
• Motor Mount: Aluminum
• Gearboxes: Fully sealed
• Tires: dboots Sidewinder 2, 1.7" (44mm) wide, 4.2" (108mm) diameter 2.2"/3" mounting bead
• Wheels: Plastic construction, black in color, 2.2" (56mm) outer diameter, 1.6" (41.5mm) wide, 17mm hex
• Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
• Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis

Needed to Complete

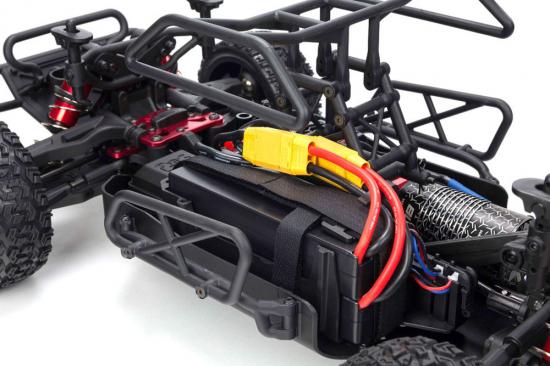

• Two 2-3S 5000mAh 35C minimum LiPo with XT90 connector, Onyx 11.1V 5000mAh 35C batteries recommended, or one or one 4-6S LiPo battery
• Suitable Charger
• LiPo charge bag, maintenance and trail equipment

What's in the box?

• (1) RTR Senton 6S BLX Short Course Truck with 2.4GHz Radio, Brushless Motor, ESC, and Painted Body
• (1) User Manual

Specifications

Vehicle
• Length: 22" (560mm)
• Width: 11.6" (295mm)
• Height: 7.67" (195mm)
• Wheelbase: 12.5-12.67" (318-322mm)
• Weight: 127oz (3.6kg)
• Final Gear Ratio: 11.79
• Pinion and Spur Gear Pitch: 1M
• Maximum Battery Dimensions: 6.22 x 2.76 x 1.89" (158 x 70 x 48mm)

Body
• Length: 21.7" (552mm)
• Width: 9.5" (242mm) behind front wheels, narrowest point 12.4" (315mm) at rear wheels, widest point
• Height: 5.5" (140mm)

Arrma Senton 2018 V3 ** CLEARANCE ** Specfications:

• Batteries: 4S or 6S 35C 5000mAh LiPo
• Chassis: Aluminum
• Completion Level: Ready-To-Run
• Drivetrain: 4WD
• Height: 7.68 in (195mm)
• Length: 21.65 in (550mm)
• Max Battery Dimensions: 6.22x1.89x2.76 in (158x48x70mm)
• Motor Size: 2050Kv
• Motor Type: Brushless
• Size/Scale: 1/10
• Speed Control: BLX185 Waterproof
• Vehicle Type: Short Course
• Weight: 3.8kg
• Wheelbase: 12.91 in (328mm)
• Width: 11.61 in (295mm)
