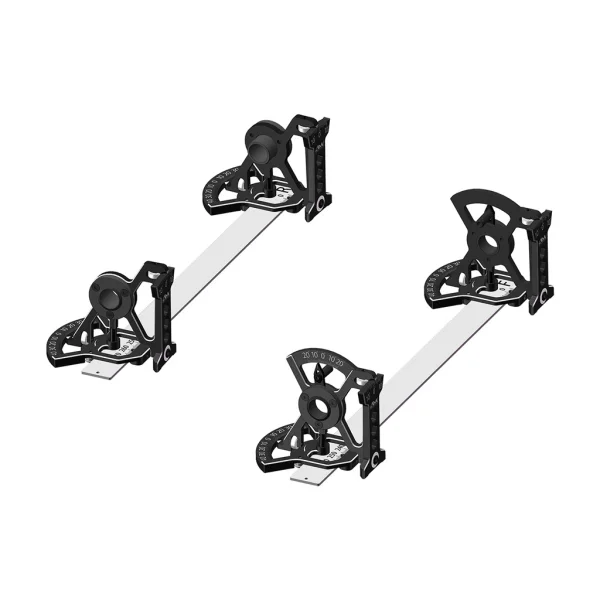

Arrowmax 4D Set Up System - 1:8 On Road Cars With Bag

The Arrowmax 4D Set Up System for 1:8 on-road cars streamlines chassis geometry checks with exceptional precision. Engineered for the eighth-scale on-road classes, it enables accurate measurement and adjustment of camber, caster, toe-in/toe-out, track width and steering angle symmetry. Compact and lightweight, this refined setup station is designed to make your pit-time faster, easier and more consistent. Supplied as the Arrowmax 4D Set Up System – 1:8 On Road Cars With Bag (part number SCH-AM174044).

A key benefit of the 4D concept is the way toe readings are taken directly from the laser-engraved 7075 CNC main body, removing the need for long, bulky acrylic plates. The result is a cleaner, more stable read-out and a smaller footprint on the bench. Arrowmax has also considered a common 1:8 on-road pain point: checking rear toe without having to remove rear body posts. This system is designed to make that process significantly smoother.

Another standout addition is the built-in ruler that lets you measure track width by checking the distance between the wheel hexes. This gives a clearer picture of how setup changes affect your car’s stance and responsiveness. With its compact, travel-friendly form and included carry bag, storage and transportation are hassle-free.

Key Features

• Measures camber, caster, toe-in/toe-out, track width and steering angle symmetry
• Laser-engraved scales on a rigid 7075 CNC body for precise, repeatable readings
• 4D design removes the need for bulky acrylic plates for toe measurement
• Built-in ruler to check track width via the distance between hexes
• Compact and lightweight to simplify storage and transport; supplied with carry bag

Suggested Compatibility

• 1:8 on-road RC cars

If you’re serious about consistent, data-driven setup work, the Arrowmax 4D Set Up System (SCH-AM174044) brings pro-level accuracy and convenience to your race programme.
