Arrows Hobby Viper 50mm EDF PNP RC Aircraft ARR012P
Brand: Arrows Hobby
Part No: ARR012P
No longer available
This item has been discontinued and replaced by:
ReplacementArrows Hobby Viper PNP with Vector Gyro (773mm)Part No: ARR012PV
View item
Customers Also Buy
Popular with customers who buy products like the Arrows Hobby Viper 50mm EDF PNP
Description

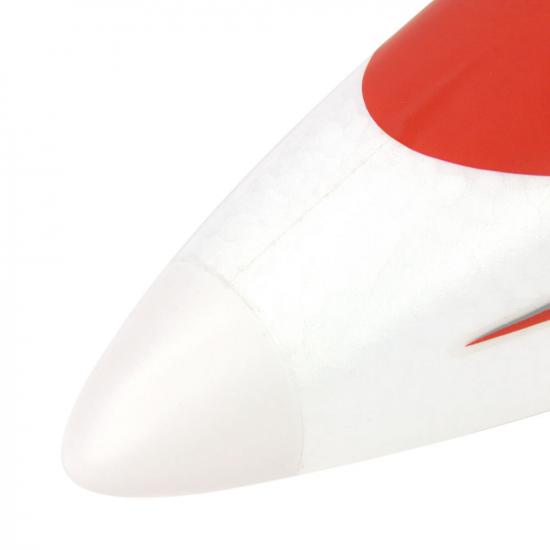

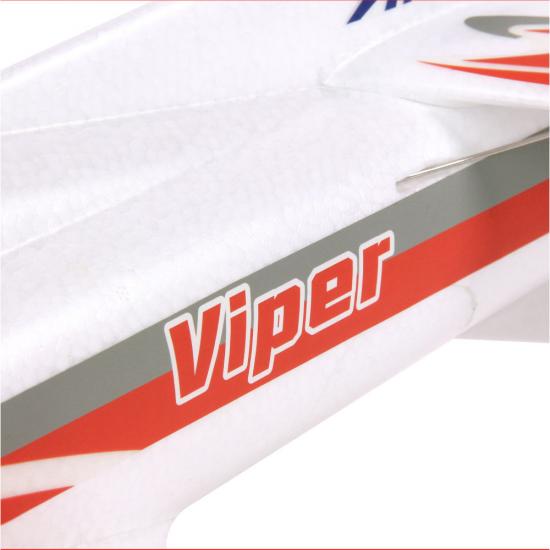

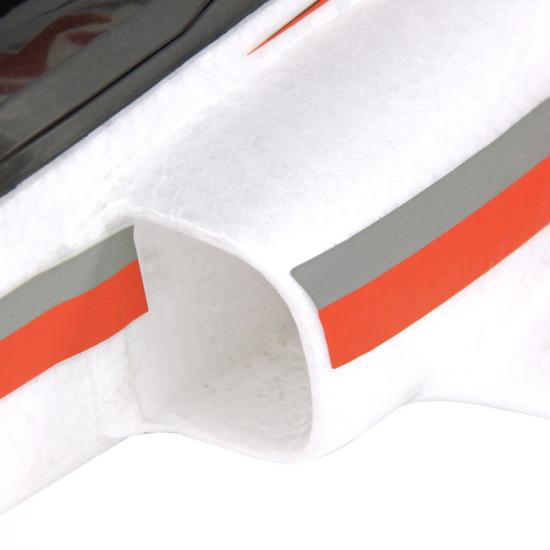

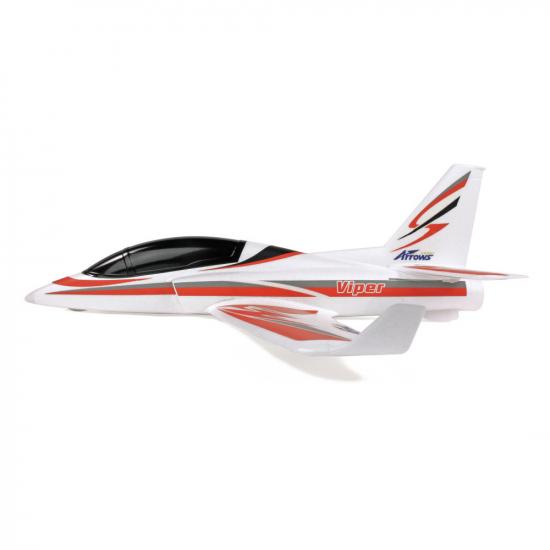

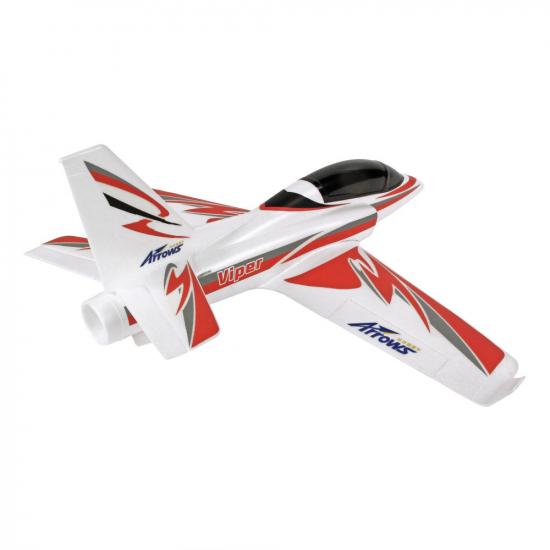

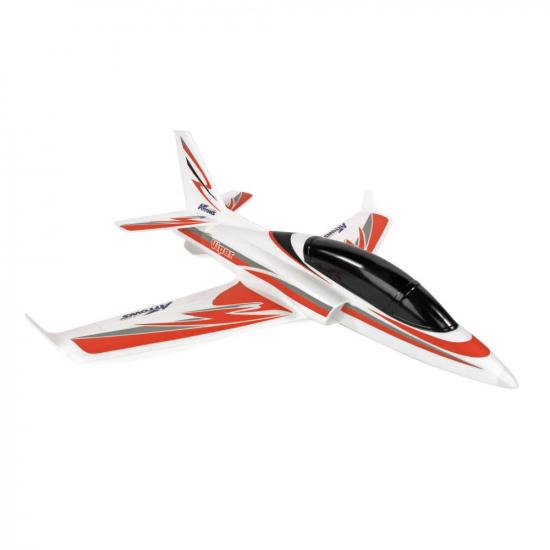

The Arrows Hobby Viper 50mm EDF PNP (ARR012P) is a plug-in-and-play electric RC ducted-fan jet aircraft for outdoor flying. Its EPO foam airframe is supplied pre-decorated, with the fuselage, wing and tailplane factory assembled to reduce the work required before flight. Assembly uses screws and takes approximately 30 minutes.
Power comes from a pre-installed 2627 4500KV brushless motor driving a 50mm 11-blade fan through a 30A ESC with an XT60 connector. Three pre-installed 9g digital servos operate the control surfaces, while the retract-free design keeps the model straightforward to set up and transport. The Viper is designed for smooth aerobatics and low-speed handling, with a recommended 3S LiPo battery providing the stated power system.
Features
The suggested battery choice is a 3S 1300–2200mAh 30C LiPo with an XT60 connector; the manufacturer states that a 2200mAh battery can provide more than eight minutes of flight time. A standard four-channel transmitter and receiver combination is suggested for the aileron, elevator and throttle controls. The model has a 774mm wingspan, a 696mm length and an all-up weight of 470g.
The magnetic canopy retainer, pre-installed control linkages and supplied screw set support the assembly process. This PNP aircraft is listed for intermediate to expert pilots and is supplied without the radio system, flight battery or charger.
What's Included
- Factory-assembled, pre-decorated fuselage, one-piece wing and one-piece tailplane
- Two winglet mouldings
- 2627 4500KV brushless motor and 50mm 11-blade fan
- 30A ESC with XT60 connector
- Three 9g digital servos
- Screw set and instruction manual
Required to Complete
- Four-channel transmitter and receiver combination
- 3S 1300–2200mAh 30C LiPo battery with XT60 connector
- 3S-compatible LiPo balance charger
Secured by Stripe
Arrows Hobby Viper 50mm EDF PNP Manuals & Guides
Specifications
Sleek, powerful and perfectly formed the Arrows Hobby Viper will be something of an eye-opener to anyone who still thinks EDF jets have some catching up to do. Experience the Viper in action and you’ll quickly realise that nothing could be further from the truth. Packing a jet-like 50mm 11-blade fan that’s spun up by a precision 2627 4500KV brushless motor, this 3S-fuelled pocket rocket will find favour in the hands of all who seek smooth, flowing aerobatics, a cloud punching performance and exceptional speed. But that’s not the half of it, the Viper is also a beautifully practical jet that exhibits exceptional low speed handling, is small enough to transport in one piece, retract free (hassle free) and enticingly budget-friendly. All this grace and performance from a 3S LiPo will almost certainly have you reassessing your EDF spend. So good is the Arrows Viper we’re convinced it’ll become a frequent flyer in your air fleet and, as we all know, that equates to superb value for money. As Arrows Hobby so rightly says in its promotional blurb, “Small [and simple] is beautiful.”
Specification:
| Wingspan (mm): | 774 |
| Length (mm): | 696 |
| Motor (KV): | 4500 |
| Rec'd battery: | 3S 2200mAh |
| ESC (A): | 30 |
| All-up weight (g): | 470 |
Arrows Hobby Viper 50mm EDF PNP Key Features:
- High quality pre-decorated EPO foam airframe.
- Glue- and screw-together assembly.
- High-quality pre-installed hardware.
- Superior ball joint control linkages.
- Outstanding power-to-weight ratio.

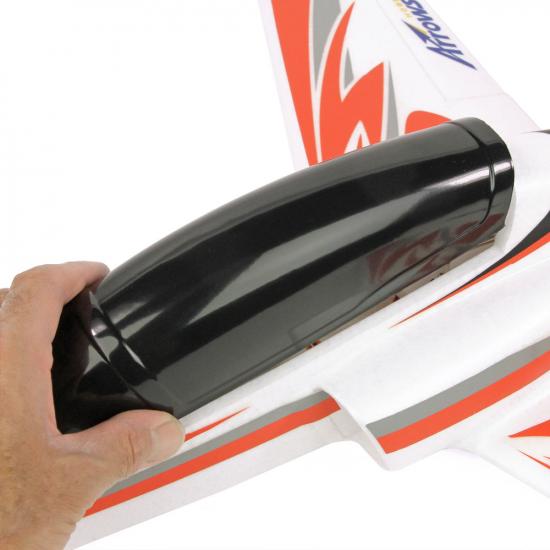

- Secure magnet-retained canopy.
- Retract-free, fly anywhere simplicity.
- Suits 3S 11.1V 1300 – 2200mAh 30C LiPo.

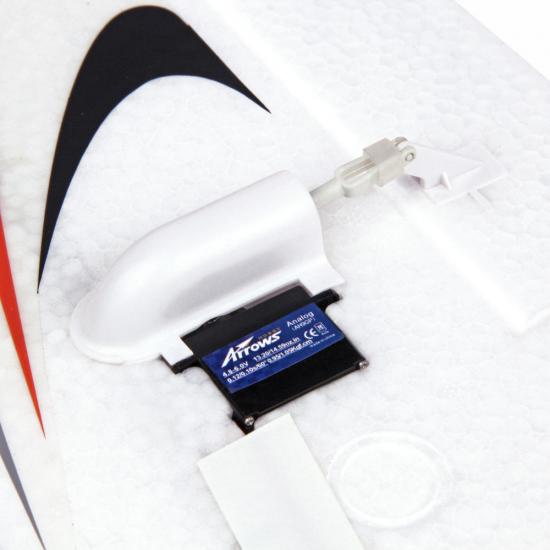

- Three pre-installed high-quality digital servos.
- Takes standard 4-channel radio (aileron, elevator, throttle).
- 11-blade fan.
- 30-minute assembly time.
- 8+ minutes on 2200mAh LiPo.
What's in the Box:
- 1x Factory assembled fuselage with decals applied.
- 1x Factory assembled 1-piece wing with decals applied.
- 2x Winglet mouldings.
- 1x Factory assembled 1-piece tailplane with decals applied.
- 1x Pre-installed 2627 4500KV brushless motor.
- 1x Pre-installed 50mm 11-blade fan.
- 1x Pre-installed 30A ESC with XT60 connector.
- 3x Pre-installed high quality 9g digital servos.
- 1x Screw set.
- 1x Comprehensive instruction manual.
Needed to Complete:
- 1x 4-channel transmitter and receiver combo.
- 1x 3S 1300 – 2200mAh 30C LiPo with XT60 connector.
- 1x 3S compatible LiPo balance charger.

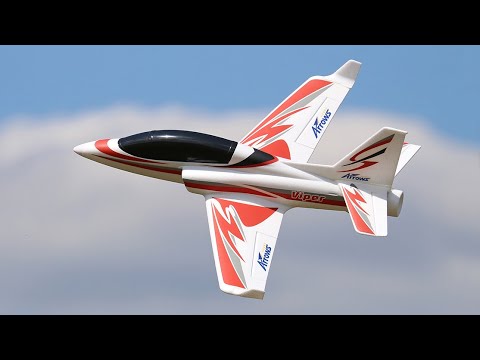

Videos:
Arrows Hobby Viper 50mm EDF PNP Tech Specs:
- Shipping Weight: 1.60kg / 3.53lbs
- Product Length: 696mm / 27.4in
- Product Wingspan: 774mm / 30.5in
- Product Wing Area: 10dm2 / 160in2
- Completion Level: PNP
- Experience Level: Intermediate / expert
- Assembly Time: 30min
- Recommended Usage Environment: Outdoors
- Material: EPO
- Motor/Engine: 1x Brushless 2627 4500KV
- Servos: 3x Digital 9g
- ESC: 1x 30A ESC with XT60 connector
Key Info:
- Brand: Arrows Hobby
- Part No: ARR012P
- Barcode: 5051121246742
- Flying Style: EDF Jets
- Power: Electric
- Assembly Level: PNP (Plug n Play) / RR
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
Great little jet, easy to fly. Only negative is I found the COG to be difficult to get right without cutting into the foam to get the battery back far enough.
Questions & Answers
This is a PNP plane so would requirder other items, We would also not advise learning to fly with an EDF plane. we would say something like this would be better to learn with # HBZ32000
Not really - it's a bit fast for a trainer and requires radio gear, battery, etc to complete.
For a good trainer, look at say HBZ32000
