Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades
Blade Fusion 550 Quick Build Kit with Motor and Blades

Blade Fusion 550 Quick Build Kit with Motor and Blades

Brand: Blade

Part No: BLH4975

£656.99 RRP £729.99

Shadow Stock: Usually ships next day

Collect Instore
Introduction

The Blade® Fusion™ 550 blurs the lines between convenience and capabilities, plus quality and value. The strong and lightweight carbon fiber and aluminum airframe is ready to pair with the included carbon fiber 550mm main and 95mm tail rotor blades, plus a more powerful motor and common 6S 4000–5000mAh batteries, to deliver exhilarating performance with power to spare. Now you can make the dream of owning a larger-sized helicopter with cutting-edge capabilities, along with incredible durability and reliability, a reality!

Features
  • Also available in a money-saving "Super Combo" including top-of-the-line Spektrum servos, a flight controller, receiver, plus a Smart ESC
  • Based on the extremely popular Fusion 480 and stretch kit for a perfect fusion of convenience and performance
  • Quick Build Kit with factory-finished assemblies so it can be ready to fly in less than half the time of typical kits
  • Includes the longer boom, belt, plus carbon fiber 550mm main rotor and 95mm tail rotor blades
  • Lightweight yet extremely stiff and durable carbon fiber and aluminum airframe design
  • High-strength steel 10mm main shaft and 8mm spindle with metal head components

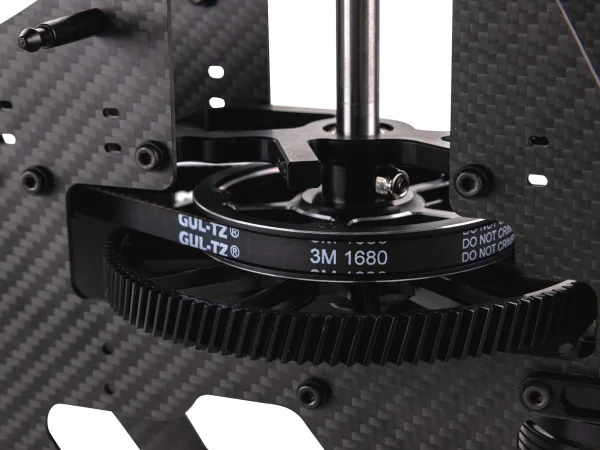

  • Efficient helical main gear paired with a steel pinion for quiet and reliable performance

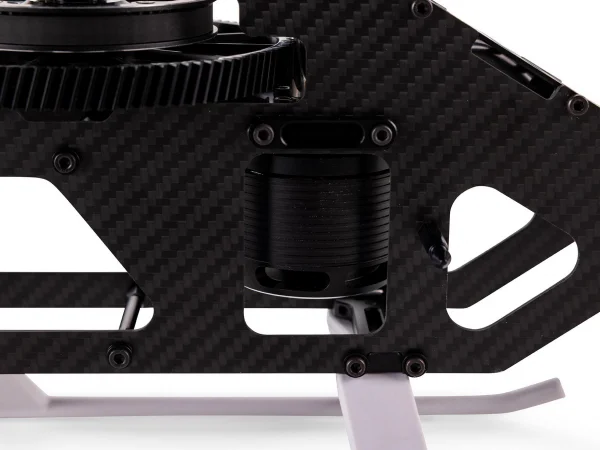

  • Includes a 4320-1180Kv brushless outrunner motor that delivers incredible torque and power
  • Compatible with popular and common 6S 4000–5000mAh 30+C LiPo batteries
  • Oversized 25mm diameter tail boom eliminates the need for boom supports
  • 6mm wide belt for the driven tail featuring adjustable tension
  • High-strength steel 5mm tail shaft paired with a metal bell crank and grips
  • Carbon fiber and aluminum tail case with a metal tail drive pulley
  • 5mm diameter carbon fiber tail pushrod for precise tail control
  • Fits standard-sized servos for cyclic and tail control
  • Exclusive Optimized Servo Geometry for precise and responsive control
UNMATCHED FOR UNLIMITED PERFORMANCE

Built on nearly two decades of Blade helicopter engineering and development experience, and based on the extremely popular Fusion 480 and stretch kit, the Blade Fusion 550 packs a variety of high-quality and high-performance features into a rugged and reliable helicopter that's ready to rip up the skies. The lightweight yet extremely durable carbon fiber and aluminum airframe design features many factory-finished assemblies so it assembles quickly – in less than half the time of typical kits – plus it's easy to maintain and repair. The Optimized Servo Geometry provides precise and responsive control from hovering to sport flying, and from basic to all-out 3D aerobatics. The quiet helical main gear is driven by the included 4320-1180Kv brushless outrunner motor that delivers incredible torque and performance with popular 6S 4000–5000mAh LiPo batteries. A belt-driven tail assembly featuring carbon fiber and aluminum construction ensures locked-in tail performance on every flight. So whether you're an intermediate pilot and this is your first-ever kit-built model, or you're a world-class 3D pilot, the Fusion 550 delivers an unmatched combination of convenience, capabilities, quality, and value!

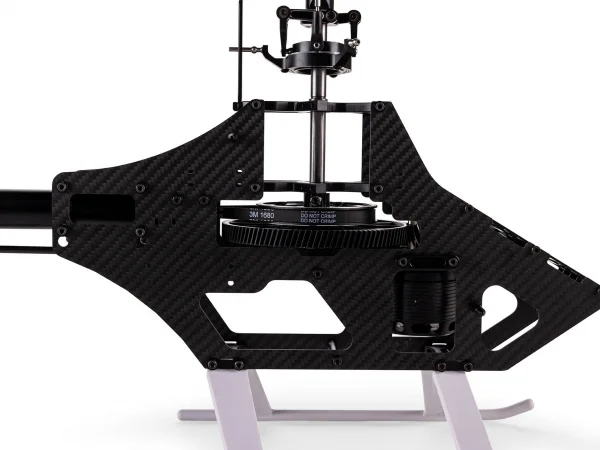

Frame Features

  • All-metal and 2mm thick carbon fiber construction

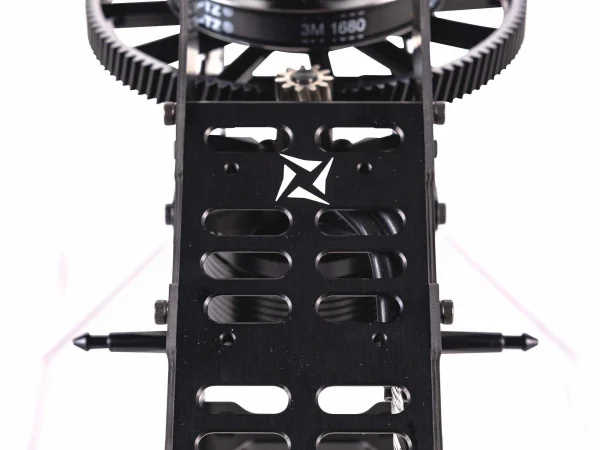

  • Aluminum battery tray with two oversized battery straps
  • Aluminum bearing and servo mounting blocks with Optimized Servo Geometry

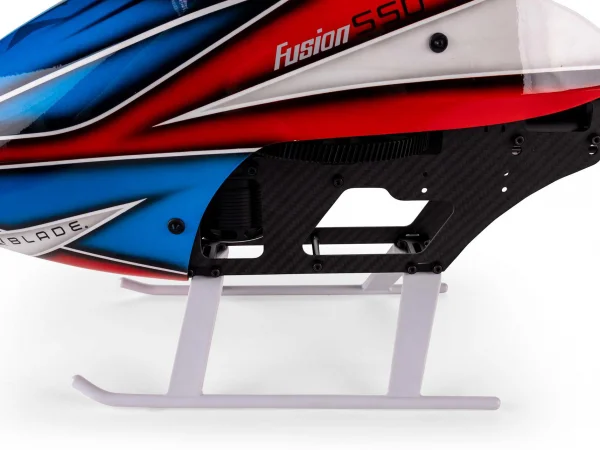

  • White molded landing gear plus a painted fiberglass canopy for excellent visibility

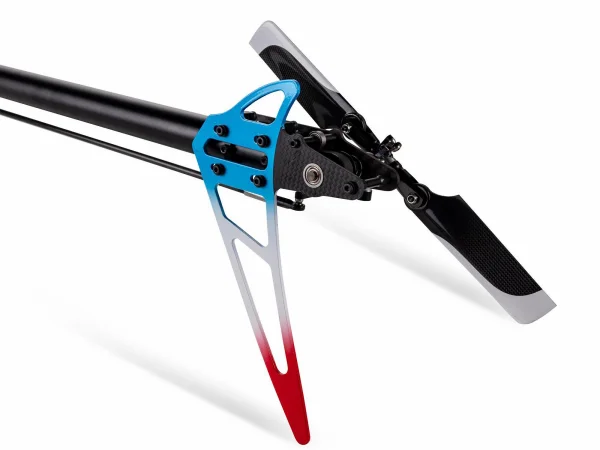

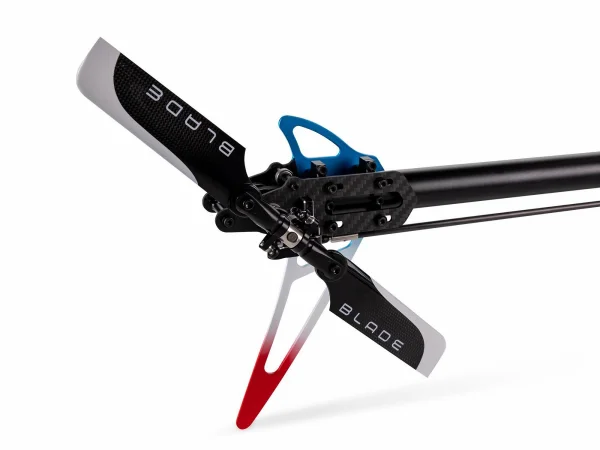

Tail Features

  • Oversized 25mm diameter tail boom eliminates the need for boom supports
  • 2.5mm thick carbon fiber tail box and painted vertical fin for improved visibility
  • 6mm wide drive belt with adjustable tension drives a large aluminum pulley
  • 5mm high-strength steel tail shaft with metal bell crank, hub, and grips
  • 5mm carbon fiber tail pushrod with ball links for precise control
  • Hidden tail servo for added protection and a sleek look
  • Includes 95mm carbon fiber tail rotor blades



Mechanics Features

  • Includes a 4320-1180Kv outrunner motor compatible with 6S batteries
  • Efficient helical main gear paired with a steel pinion to reduce noise

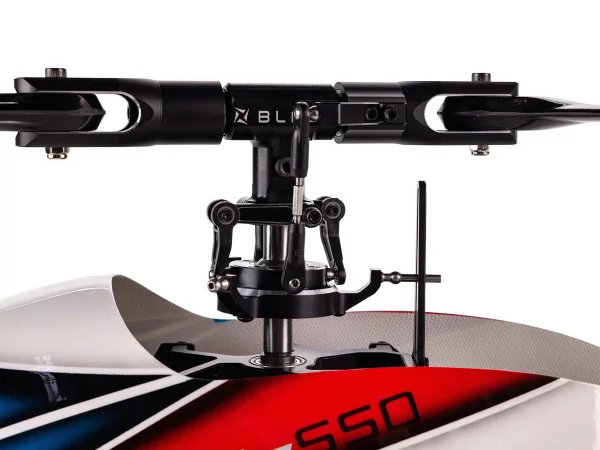

  • Black anodized aluminum swashplate and other components
  • High-strength steel 10mm main shaft and 8mm spindle
  • Aluminum blade grips with zero pitch indicator marks
  • Includes 550mm carbon fiber main rotor blades



Skill Level 3 – Experience Required

Skill Level 3 aircraft, like this one, are suitable for RC pilots who already have some experience with and the skills to assemble, set up and fly similar class models. And although this is one of the easiest-to-assemble helicopter kits, which makes it a perfect first-ever kit-built model for many pilots, you should have the experience and skills necessary to successfully set up and fly other helicopter models like the Blade 330 and Fusion 360 before attempting to fly the Fusion 550.



Blade Fusion 550 Quick Build Kit with Motor and Blades Specfications:

  • Canopy/Body Material: Fiberglass
  • Product Weight: 6.72Lb (3050g) with Recommended Battery
  • Approximate Assembly Time: 5-7 Hours
  • Pinion: 12T
  • Tail Drive: Belt Drive
  • Gear Ratio: 9.33
  • Main Frame Material: Carbon Fiber
  • Motor Size: 4320-1180Kv 10 Pole
  • Product Length: 42.52" (1080 mm)
  • Power Type: Electric
  • Servos: Sold Separately
  • Skill Level: Level 3
  • Swashplate Type: 120 Degree CCPM
  • Battery: Sold Separately
  • Channels: 6
  • Main Rotor Blade Length: 21.65" (550 mm)
  • Speed Control: Sold Separately
  • Main Motor Type: Brushless
  • Main Rotor Head Type: Collective Pitch Flybarless
  • Product Width: 7.4" (188 mm)
  • Tail Rotor Diameter: 9.84" (250 mm)
  • Completion Level: Kit
  • Main Blade Material: Carbon Fiber
  • Main Rotor Diameter: 49.01" (1245 mm)
  • Product Height: 12.59" (320 mm)
  • Tail Blade Material: Carbon Fiber
  • Tail Rotor Blade Length: 3.74" (95 mm)
  • Charger: Sold Separately
  • Receiver: Sold Separately

In The Box
  • (1) Blade Fusion 550 Helicopter Quick Build Kit
  • (1) Spektrum Avian 4320-1180Kv 10-Pole Brushless Outrunner Motor (included)
  • (1) Blade 550mm Carbon Fiber Main Rotor Blade Set (included)
  • (1) Blade 95mm Carbon Fiber Tail Rotor Blade Set (included)
  • (1) Fusion 550 Helicopter Product Manual
Needed to Complete
  • (1) Flybarless control system with built-in and/or external receiver
  • (1) Full-range 6+ channel helicopter compatible transmitter
  • (3) High-torque standard sized cyclic servos
  • (1) High-speed standard sized tail servo
  • (1) 130+ amp 6S and helicopter compatible ESC
  • (1) 6S 22.2V 4000–5000mAh 30+C LiPo battery
  • (1) Compatible LiPo Charger
  • Brand: Blade
  • Part No: BLH4975
  • Barcode: 0605482181171
  • Size: 400+
  • Flying Style: Collective Pitch
  • Power: Electric
  • Build Level: Kit (Unassembled)
