Castle BEC Pro - 20A Peak 50.4V Max

Brand: Castle Creations

Part No: P-CC0401

£61.74 ~~RRP £64.99~~

Shadow Stock: Usually ships next day

Collect Instore

Request Price Match Ask a Question Write a Review

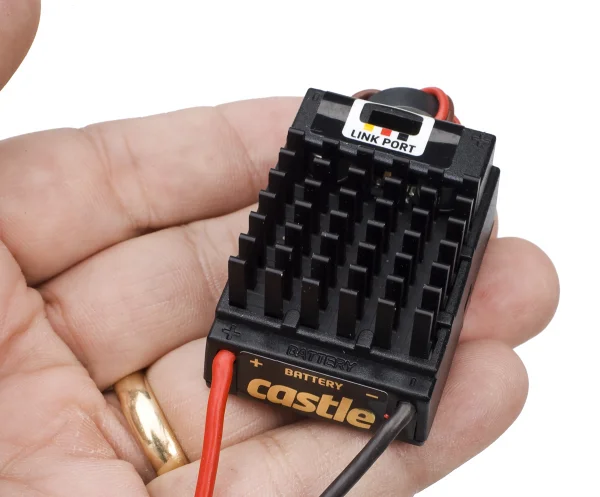

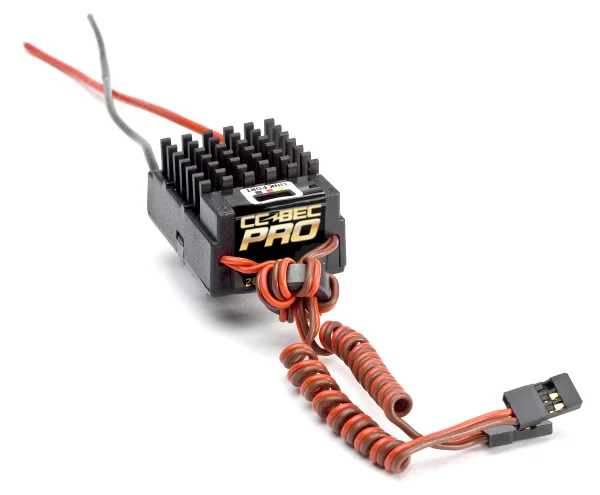

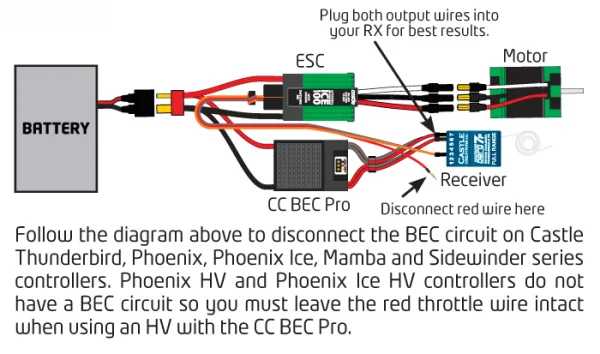

The Castle Creations Castle BEC Pro (P-CC0401) is a high-output battery eliminator circuit that supplies clean power to your receiver and servos by stepping down voltage from your main drive batteries. It removes the need for a separate RX/servo pack.

This BEC is intended for applications that draw high power for multiple servos or use more than 3S motor packs, where many ESCs with linear BECs are not designed to cope.

Key Specifications

Output voltage range: 4.8 to 12.5V
Input voltage: up to 50.4V (12S)
Maximum continuous current: 15A @ 16V to 8A @ 48V
Maximum peak current: 20A
Weight: 29g
Dimensions (L x W x H): 43 x 33 x 24 mm

Important Note

CC BEC Pro should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Free Shipping

On UK Orders over £100

Happy to Help

Helpful, friendly advice

28 Day Returns

Easy returns process

Secure Payments

Secured by Stripe

Battery Eliminator Circuits are small devices that eliminate the need for a receiver and servo battery pack. They draw higher voltage from the motor batteries and drop it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

NOTE: CC BEC Pro should never be operated in series or parallel with another BEC or backup receiver pack connected to the RX/Servo side of the circuit.

Castle BEC Pro - 20A Peak 50.4V Max Specifications

Voltage Range: 4.8 to 12.5V Output
Input voltage: 50.4V Max (12S)V
Maximum continuous current: 15A @ 16V to 8A @ 48VA
Maximum peak current: 20AA
Weight: 29g
Height: 24mm
Length: 43mm
Width: 33mm

Key Info:

Brand: Castle Creations
Part No: P-CC0401
Barcode: 899598001717
