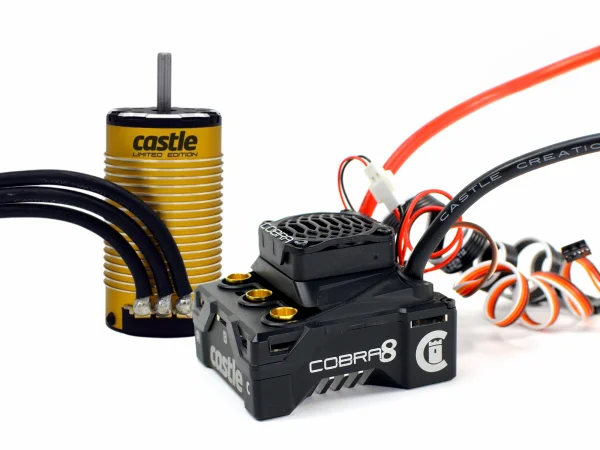

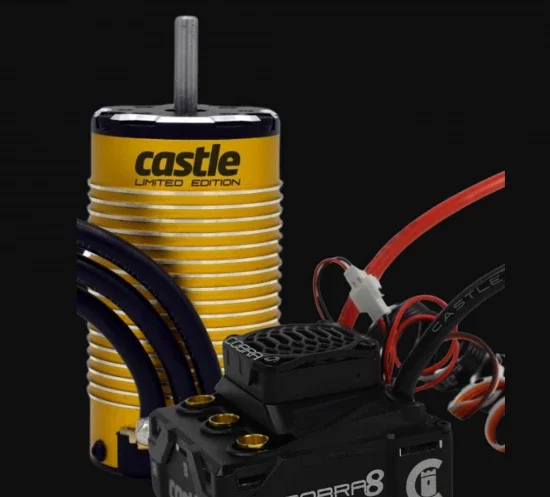

Castle Creations Cobra 8 ESC Combo With Limited Edition Gold 1515-2200Kv V2 Motor
Brand: Castle Creations
Part No: P-CC010-0172-04
Out Of Stock
Request Stock NotificationThe Castle Creations Cobra 8 ESC Combo With Limited Edition Gold 1515-2200Kv V2 Motor (P-CC010-0172-04) pairs the next-generation Cobra 8 speed controller with the 1515-2200Kv sensored brushless motor for exceptional power delivery, smooth startups and robust thermal performance in demanding 1:8 applications up to 6.8 kg. A 32-bit dual-core processor, enhanced data logging and CRYO-DRIVE thermal optimisation are complemented by a rugged CNC aluminium case, waterproof potting and an oversized 30 mm cooling fan.
SmartSense technology uses motor sensors for precise low-speed control and seamlessly transitions to ultra-efficient sensorless running. The integrated, highly adjustable 8A BEC (5.0–8.0 V) easily powers high-draw servos, while the included Castle Link V4 USB-C adapter gives access to tuning and firmware updates on Windows 10 or higher.
In The Box
- Cobra 8 ESC
- 1515-2200Kv Sensored Brushless Motor (Limited Edition Gold V2)
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
ESC Features
- 32-bit dual-core processing for smoother control and fast response
- Enhanced data logging: double sample frequency, 8x logging time, timing and accelerometer data, looping, and per-session downloads
- Improved braking adjustability with separate brake and reverse curves
- Highly adjustable internal BEC (5.0–8.0 V in 0.1 V steps), 8A peak
- Input voltage: 6.0–25.2 V (2S–6S LiPo); SmartSense, Sensored Only and Brushed modes
- CRYO-DRIVE technology for cooler running during partial throttle
- CNC aluminium case, waterproof epoxy potting, forged heatsink with elliptical fins and a thermally controlled 30 mm fan
- Auxiliary wire for on-the-fly transmitter adjustments; transmitter programming for six common settings
- Audible alerts and comprehensive data logging
- Castle Link V4 USB-C programmer included (requires Windows 10+)
- Mounting holes in the aluminium base for secure installation
Motor Features
- 4-pole, 12-slot sensored design for high efficiency and reduced heat
- Proprietary stator winding for low internal resistance and cooler running
- Dual sensor ports for flexible installation
- Oversized NMB bearings and vibration dampening for long bearing life
- High-strength, high-temperature neodymium sintered magnets with Kevlar wrap for rotor integrity at high RPM
Suggested Compatibility
- 1:8 monster trucks on up to 6S LiPo (with 4S noted as the sweet spot)
- 1:8 buggies, truggies and on-road vehicles
- 1:10 monster trucks up to 6.8 kg (15 lbs)
- 1:8 vehicles weighing up to 6.8 kg (15 lbs)
Secured by Stripe
Introducing the Cobra 8, Castle's next generation electronic speed controller for surface applications. As the inaugural product in a new line, the Cobra 8 is engineered with cutting-edge technology tailored specifically for 1:8th scale vehicles weighing up to 6.8Kg (15 lbs).
The Cobra 8 boasts a state-of-the-art 32-bit, dual-core processor, ushering in a new era of precision and performance. Its enhanced data logging capabilities offer extended recording times, faster sampling rates, and a wealth of data points, enabling users to delve deeper into their vehicle's performance than ever before.
Crafted with a CNC aluminium bottom case, the Cobra 8 is engineered to endure the most rigorous conditions, ensuring reliability in every race or off-road adventure.
One of its defining features is our acclaimed CRYO-DRIVE technology, engineered to reduce operational temperatures, significantly prolonging the ESC's lifespan. Moreover, equipped with an impressive 8-amp BEC, the Cobra 8 can effortlessly power the most demanding servos, making it an indispensable ally in your high-performance setup.
The Cobra 8 has been packaged with three different Castle 4 -POLE 12-SLOT motor options to overpower a wide range of 1:8th scale vehicles. This combo includes a Castle 1515-2200Kv Sensored Motor. The 1515-2200KV combo is incredible in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monstertrucks weighing up to 6.8kg (15 lbs). The gold1515-2200Kv V2 motor, meticulously engineered for precision and power, pairs seamlessly with the Cobra 8 ESC, delivering an unmatched level of speed,control, and style.
In The Box
- Cobra 8 ESC
- 1515-2200kv Sensored Brushless Motor
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
ESC Features
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
- Ability to download specific sessions.
- Additional tuning features include:
- Improved braking adjustability
- Separate brake and reverse curves
- Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Input Voltage Range 6.0v - 25.2v (2s - 6s LiPo)
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.0V - 8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminium case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 30mm cooling fan
- Waterproof design for all weather conditions
- Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Includes Castle Link V4 USB adapter for Windows.
Motor Features
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
Castle's newest software technology, CRYO-DRIVE minimizes the amount of time the ESC's electrical components spend generating heat by optimally controlling which components are being used while driving the motor. This is happening thousands of times per second, which greatly reduces the rate at which the ESC heats up. This results in significantly improved thermal performance during partial throttle operation where the majority of driving occurs. Your setup will be able to handle higher gear ratios, in heavier vehicles, with longer runs.
When paired with a Castle 4-POLE 12-SLOT SENSORED MOTOR SmartSense software, enabled by default in the Castle Link Programming Suite, will use the motor's sensors to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle's ULTRA-EFFICIENT sensorless mode with electric timing. Smooth sensored startups and high-efficiency sensorless running makes the COBRA 8 system produce more power and less heat. QUIETSENSE is an innovative advancement in the design of sensored motors to deliver the highest precision and most efficient startup.
The COBRA 8 allows "on-the-fly" adjustments to be made through the AUX wire once enabled in Castle Link. Once you have selected an AUX wire function, that setting can then be tuned from your transmitter while driving. Torque control, max throttle, max brake and drag brake adjustments are a sampling of the available modes. This real-time tuning allows you to quickly and easily fine-tune your system.
The COBRA 8 contains NEW DATA LOGGING FEATURES:
- Double the maximum sample frequency of older generations.
- 8x increased logging time of older generations.
- Data point for ESC electrical motor timing.
- Data point for acceleration via onboard accelerometer.
- Looping feature prevents interruptions in data log recording.
For over 25 years Castle engineers have been setting the bar for industry leading software functionality. The Castle Link Programming Suite is your ticket to creating the perfect setup. To gain access to the host of tuning parameters download the BRAND NEW simple to install software from the Castle Creations website and you are ready to personalize your controller's settings. Requires Windows 10 or higher.
The COBRA 8 is housed in a rugged CNC-machined aluminium case and then potted in waterproof epoxy. This not only protects the electronics but ensures any heat generated in the controller can easily be dissipated through the case.
COBRA 8 features Audible Alerts that will notify you, via audible chimes, of possible issues with calibrations and error conditions to help diagnose problems.
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0172-04
- Barcode: 0819326013270
