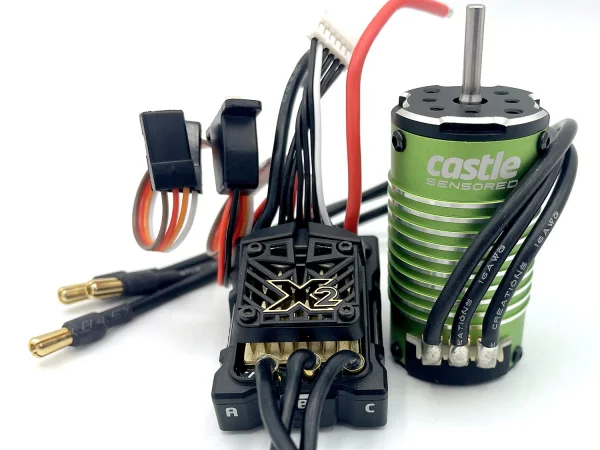

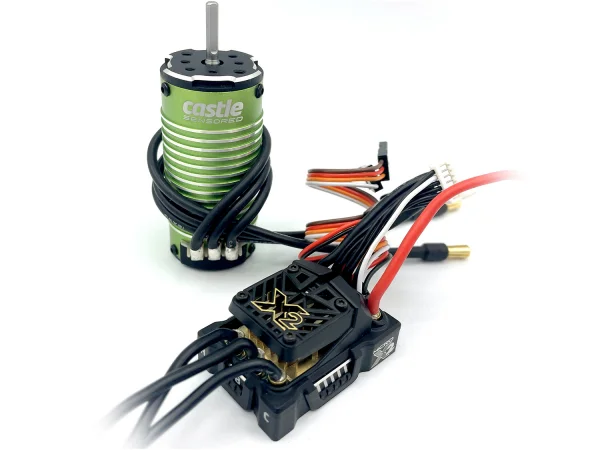

Castle Creations Mamba Micro X2 ESC Combo With 1010-4400KV Motor

The Castle Creations Mamba Micro X2 ESC Combo with 1010-4400KV sensored motor delivers smooth startups, strong torque and cool running for compact RC builds. Building on the original Micro X, this refreshed controller adds data logging, higher input voltage support (2S–4S LiPo) and Castle’s efficient Cryo-Drive technology, all in a waterproof design. Part number P-CC010-0171-04.

Key Features

• Input voltage range: 2S–4S
• Waterproof ESC design (included CC BEC is not waterproof)
• Sensored motor capable
• Transmitter programming for six common adjustable settings
• Advanced settings and firmware updates via Castle Link software (coupon included) or the Castle Link App with B-Link Bluetooth adapter (sold separately)
• Telemetry ready (compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR)
• Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake
• Audible alerts to indicate calibration issues and error conditions

What’s Included

• Mamba Micro X2 ESC with 4mm connectors
• External 10-amp CC BEC
• 1010-4400KV sensored motor
• Sensor harness
• Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
• Quick Start Guide
• Castle decals

Data Logging And Tuning

Enabled by default, the Mamba Micro X2 records key performance data during your run, including motor RPM, ESC and motor temperatures, throttle input and more. Review and analyse the data in Castle Link to fine-tune settings for performance and battery life. The Quick Connect Duo (sold separately) can simplify access to both wires through a single Castle Link connection.

Real-time tuning is available via the AUX wire once enabled in Castle Link. From your transmitter you can adjust modes such as torque control, max throttle, max brake and drag brake while driving, allowing rapid setup refinement.

Telemetry And Audible Alerts

The Mamba Micro X2 is telemetry ready for use with the Castle Creations Telemetry Link for S.BUS2 and compatible Futaba transmitters. Monitor real-time ESC temperature, voltages and RPM to help protect your system and optimise performance. Audible alerts assist with field diagnostics for calibration and error conditions.

Suggested Compatibility

Suggested compatibility: 1/14th and 1/16th scale vehicles weighing up to 3lbs and running up to 4S LiPo.

Water Resistance Note

The ESC is waterproof; it is not intended for operation while submerged. If used in wet conditions, rinse with fresh water to remove dirt or corrosives, then allow the unit to dry fully. The included CC BEC is not waterproof.
