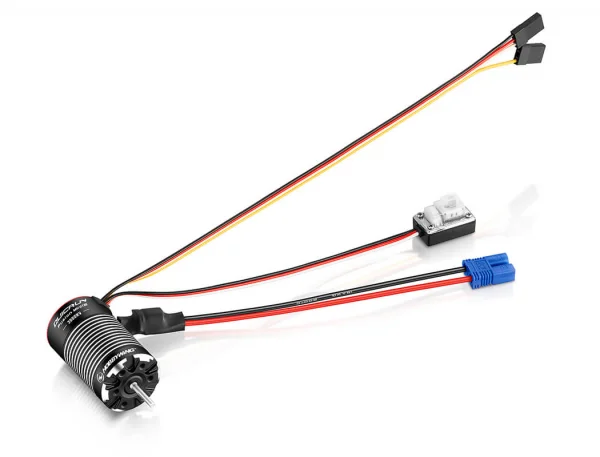

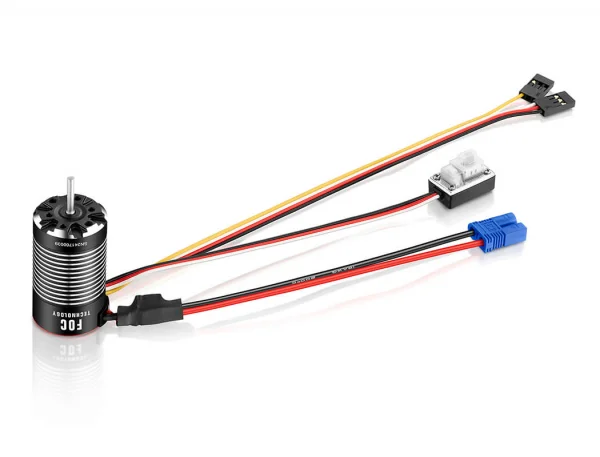

Hobbywing Quicrun Fusion Mini16 370 Motor and ESC Combined - 3000Kv
Brand: Hobbywing
Part No: HW30120403
In Stock: Usually ships same day
The Hobbywing Quicrun Fusion Mini16 370 Motor and ESC Combined (HW30120403) integrates a sensored brushless 3000KV motor with a compact ESC to simplify installs on smaller crawling vehicles. Measuring just 24 x 42 mm and weighing approximately 72 g including wires and connectors, this FOC-driven system delivers high torque, smooth low-speed linearity and nearly silent operation. Real-time drag brake adjustment via an open receiver channel allows quick tuning to changing terrain, while IP66 protection helps keep the system running in wet or dusty conditions.
Key Features
- Integrated sensored brushless motor and ESC with FOC drive for strong low-speed torque, smooth linearity and near-silent running.
- Real-time drag brake force adjustment via the receiver’s open channel using the yellow signal wire (also used for programming). Refer to the instruction manual for connection details.
- Smart torque output and closed-loop speed control to assist when climbing and descending.
- IP66-rated waterproof and dust-proof design for challenging environments.
- Compact 24 x 42 mm frame and about 72 g including wires/connectors to reduce wiring complexity on small crawlers.
- Normal mode provides a brushed-like feel with no fixed speed function.
Technical Specifications
- Scale: 1/16th, 1/18th
- Motor: Sensored brushless, 4-pole, 3000KV
- Continuous/Peak Current: 30A / 80A
- Input Voltage: 2–3S LiPo or 6–9 cells NiMH
- BEC: Switch-mode 6V/7.4V adjustable, 4A continuous
- Input Connectors: EC2
- Input Wires: 18AWG 150 mm (black x1, red x1)
- Programming: Independent programming cable; LED Program Box supported; LCD G2/LCD PRO supported; SET button not supported; OTA not supported; firmware upgrade not supported
- Dimensions (Motor): 24 mm diameter x 42 mm length
- Shaft: 2.3 mm diameter, 13.5 mm exposed length
- Weight: 72 g (including wires and connectors)
Suggested Compatibility
- 1/16th and 1/18th rock crawlers
Secured by Stripe
The Fusion Mini16 is the first commercialized FOC (Field oriented control) integrated power system suitable for 1/18th and 1/16th scale models in the industry. The frame layout is compact 24*42mm and lightweight 72g (including wires and plugs). The petite size of the fusion mini16 is aesthetically beautiful and solves wiring issues on smaller crawling vehicles.
Adjust drag brake force in real time
Connect the yellow signal wire to the open channel on the receiver to adjust the drag brake force in real time. Adjusting drag brake on the fly can be achieved to meet various application environments.
Note: The yellow signal wire is also the programming wire. Please refer to the instruction manual for the connection method.FOC drive, good linearity, high torque, nearly silent
The Fusion mini16 is equipped with a FOC drive method.
The large torque and excellent linearity when operating at low speed further exceeds standard brushless systems, and matches the feel and control of brushed systems.
The Fusion mini16 is nearly silent.
Smart Torque Output & Closed-loop Speed Control for Easy Control
Up the hill
The Fusion mini16 system automatically increases the torque output to overcome resistance and accelerate up the hill.
Going down the hill
The ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill.
Note: When the operating mode is set to normal mode, there is no fixed speed function, which is similar to a brushed effect.
IP66 protection levelThe Fusion mini16 is IP66 protected.
It has excellent waterproofing and dust-proofing performance to cope with complex and various climatic conditions
Type
Scale: 1/16th,1/18th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 30A/80A
Input Voltage: 2-3S LiPo,6-9 Cells NiMH
BEC BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
KV: 3000KV
Motor Poles: 4
Input Wires: Black-18AWG-150mm*1 Red-18AWG-150mm*1
Input Connectors: EC2
ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming cable
Firmware
Firmware Upgrade: Not Supported
Size & Weight
Diameter / Length of Motor: 24mm/42mm
Shaft Diameter / Exposed Shaft Length: 2.3mm/13.5mm
Weight: 72g(including wires&connectors)
Applications: 1/16th,1/18thRock Crawler
Key Info:
- Brand: Hobbywing
- Part No: HW30120403
- Barcode: 6938994413237
- Motor Type:
• Brushed
• Brushless - LiPo Compatible: Yes
