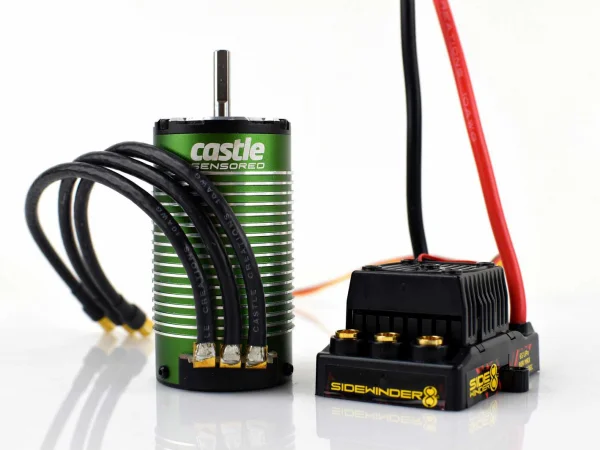

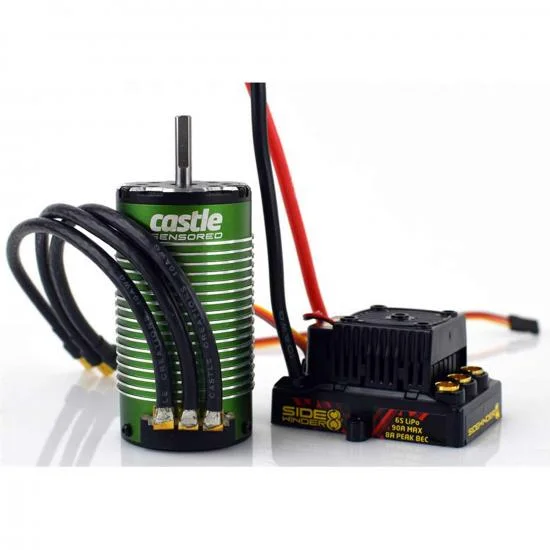

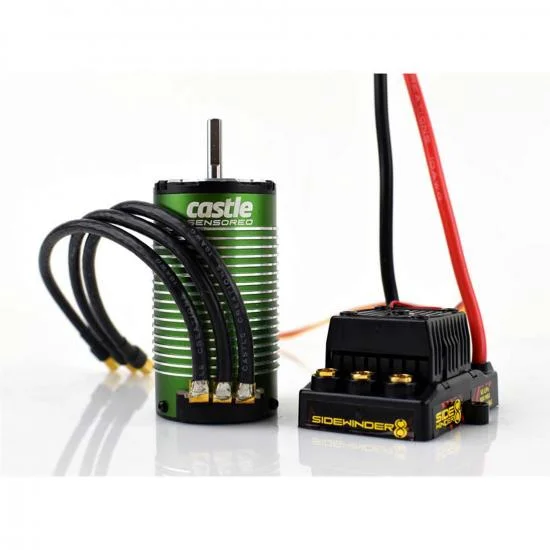

Castle Creations Sidewinder 1:8 ESC And 2200kV Sensor Ready Motor Combo

Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

• 2s - 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
• Smooth sensorless motor operation with included 1515-2200kv sensored brushless motor
• Large 6.5mm female motor bullet connectors (male connectors sold separately)
• Waterproof design ESC and splash resistant 30MM fan
• Powerful 5.5 volts fixed, 8 amps Peak BEC

• LED error codes for common error conditions
• Convenient transmitter programming for nine common adjustable settings
• Full compatible with the Castle Link Programming Suite to modify settings and download software updates
• Proudly Designed, Assembled and Supported in Olathe, KS USA

• Input Voltage range: 2s-6s LiPo
• Redesigned stator and rotor resulting in improved magnetic flux.
• Reduced magnetic cogging, producing less residual drag brake.
• Increased efficiency, resulting in lower temperatures and longer run times.
• Smoother start-up, reducing cogging or stuttering when starting from a stop.
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
• High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets

• Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
• Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
• High-Performance 0.2mm Steel Lamination Stacked Stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with High Quality Temperature-Stabilized Sensors
• T6 Aluminum CNC Machines Front/Rear End bell
• Proudly Designed and Supported in Kansas, USA.

Castle Creations Sidewinder 1:8th ESC And 2200kV Sensor Ready Motor Combo Specfications:

• BEC Continous Current: 5.5V
• Product Weight: 3.52 oz. (100g)
• Shaft Diameter: 0.19685" (5 mm)
• Water-Resistant: Yes
• Brakes: Proportional
• Reverse: Yes
• Product Width: 2.2" (56 mm)
• Connector Type: 6.5mm Bullet
• Product Length: 2.45" (62 mm)
• BEC: Yes
• BEC Maximum Burst Current: 8A
• Input Voltage: 2-6S Lipo
• Product Height: 1.33" (34 mm)
• RPM/Volt (Kv): 2200 kv
• Shaft Length: 0.787402" (20 mm)

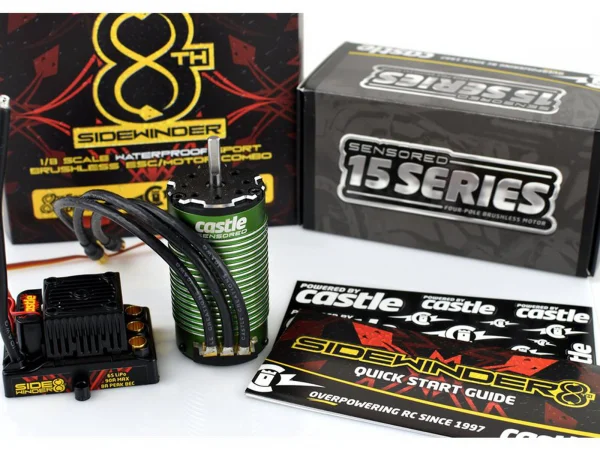

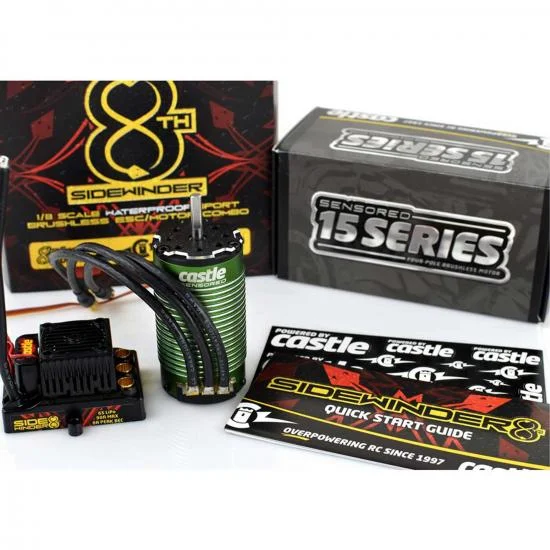

• (1) Sidewinder 8th ESC
• (1) Castle 1515-2200Kv V2 Brushless Sensored Motor
• (1) Drivers Ed and Quick Start Guide
• (1) Castle Decal Sheet

• Brand: Castle Creations
• Part No: P-CC010-0139-02
• Barcode: 0819326013027
