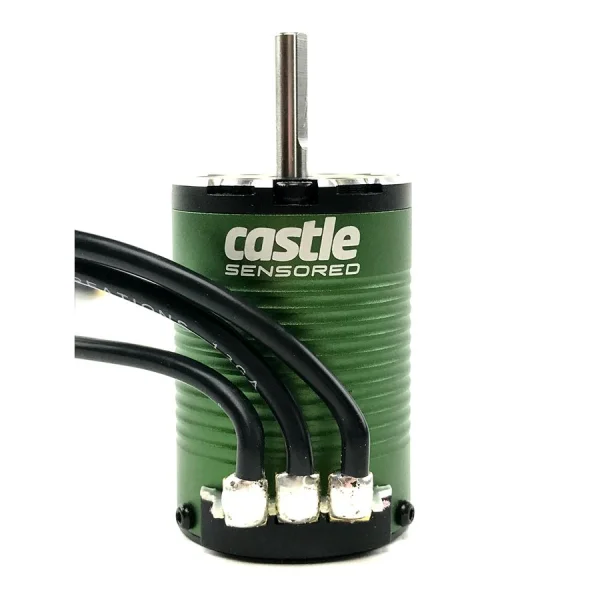

Castle Creations Sidewinder 4 WP ESC Combo With 1410-3800Kv 5mm Shaft Motor
Brand: Castle Creations
Part No: P-CC010-0164-06
Out Of Stock
Request Stock NotificationThe Castle Creations Sidewinder 4 WP ESC Combo with 1410-3800Kv 5mm Shaft Motor (P-CC010-0164-06) combines the versatile Sidewinder 4 speed controller with a robust 1410 series brushless motor. Featuring Castle’s CRYO-DRIVE technology, it is engineered to improve thermal performance for cooler running, longer runtimes and consistent power across a range of 1/10 scale applications.
The Sidewinder 4 ESC operates sensorless brushless and brushed motors. The included 1410-3800Kv motor is sensored, however the Sidewinder 4 does not utilise sensored mode. For sensored operation, a brushless sensored ESC is required.
Features
- 2S–3S LiPo; 6–8 cell NiMH use in vehicles up to 6.5 lb (with battery, ready-to-run)
- Sensorless brushless and/or brushed motor operation
- Waterproof ESC with splash-resistant 30 mm fan
- 5.0 V fixed, 2 A peak BEC
- Audible alerts for error conditions
- Enhanced drag brake functionality
- Smoother sensorless startups
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates via Castle Link USB adapter or Field Link Card (sold separately)
- Telemetry Link compatible for Futaba S.BUS2 (sold separately)
Suggested Compatibility
- Short course trucks running 2S LiPo and weighing up to 6.5 lb; can be used on 3S LiPo with very conservative gearing
- Lighter 1/10 scale 2WD stadium trucks and buggies running up to 3S LiPo
Key Specifications
- Auto cutoff: Yes
- Low-voltage cutoff programmable: Yes
- Overload protection: Yes
- Shaft diameter: 0.197" (5 mm)
- Water-resistant: Yes
- Connector type: Open ends
- BEC: Yes — 5.0 V fixed, 2.0 A peak
- Sensored: Yes (motor); ESC operates sensorless
- Shaft length: 0.826" (21 mm)
- Forward/Reverse: Yes
- Adjustable timing: No
- Programmable: Yes
- Motor type: Brushless
- Speed control: Included
In The Box
- (1) Sidewinder 4 ESC
- (1) 1410-3800Kv 5 mm sensored motor
- (1) Quick Start Guide
- (1) 1/10th scale gearing chart
- (1) Decal sheet
Secured by Stripe
While the all new SIDEWINDER 4™ builds upon Castle’s most popular platform, the SIDEWINDER 1:10 SCALE SERIES, it is the first of its kind to run Castle’s newest technology, CRYO-DRIVE™. CRYO-DRIVE™ combines technology from cutting-edge hardware and software advancements to increase thermal performance. COOLER TEMPS mean LONGER RUNS and MORE POWER in your SIDEWINDER 4 setup. The SIDEWINDER 4 is a versatile ESC and is accepted in a wide variety of applications. Whether throwing dirt, ripping through a corner or steadily dominating the trails, Castle has you covered!
Features- 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run.
- Sensorless brushless and/or brushed motor operation.
- Waterproof design ESC and splash resistant 30MM fan*
- 5.0 volts fixed, 2 amps Peak BEC
- Audible alerts for error conditions
- Enhanced drag brake functionality
- Smoother sensorless startups
- Convenient transmitter programming for six common adjustable settings
- Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately)
- Telemetry Link compatible for Futaba® S.BUS2 (sold separately)
This combo includes a Castle Sidewinder 4 Brushless ESC and a Castle 1410-3800Kv 5mm Brushless Sensored* motor. The 1410-3800kv 5mm is ideal for short course trucks running on 2s LiPo and weighing up to 6.5 lbs; it can be run on a 3s LiPo with very conservative gearing. It is a cooling running torque animal for lighter 1/10th scale 2WD stadium trucks and buggies running up to a 3s LiPo.
* Sensored capabilities of the motor cannot be utilized with the Sidewinder 4 Brushless ESC. If you require sensored operation you will need a Brushless Sensored ESC.
Castle Creations Sidewinder 4 WP ESC Combo With 1410-3800Kv 5mm Shaft Motor Specfications:
- Auto Cutoff: Yes
- Low-Voltage Cutoff Programmable: Yes
- Overload Protection: Yes
- Shaft Diameter: 0.197" (5 mm)
- Water-Resistant: Yes
- Connector Type: Open Ends
- BEC: Yes
- BEC Maximum Burst Current: 2.0A
- BEC Voltage: 5.0V Fixed
- Sensored: Yes
- Shaft Length: 0.826" (21 mm)
- Forward: Yes
- Reverse: Yes
- Adjustable Timing: No
- Programmable: Yes
- Motor Type: Brushless
- Speed Control: Included
- (1) Sidewinder 4 ESC
- (1) 1410-3800Kv 5mm sensored motor
- (1) Quick Start Guide
- (1) 1/10th scale gearing chart
- (1) Decal sheet
Key Info:
- Brand: Castle Creations
- Part No: P-CC010-0164-06
- Barcode: 0819326011993
