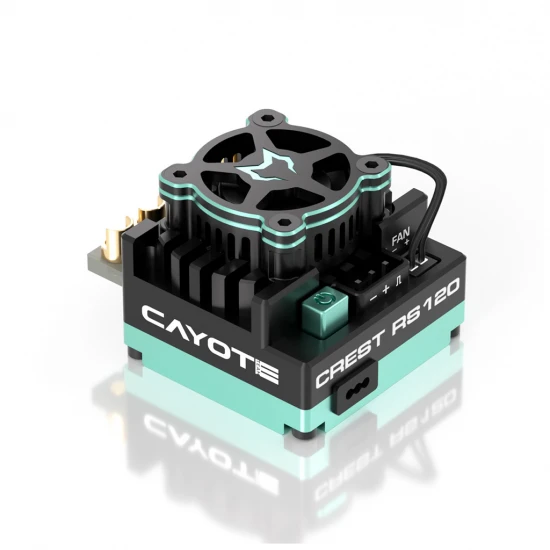

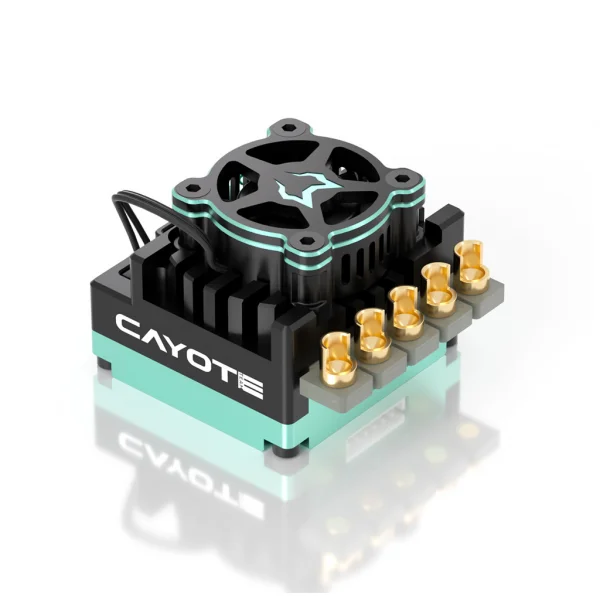

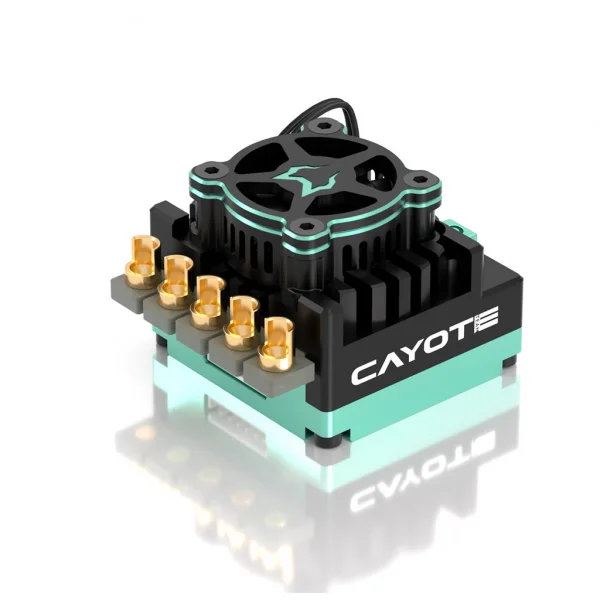

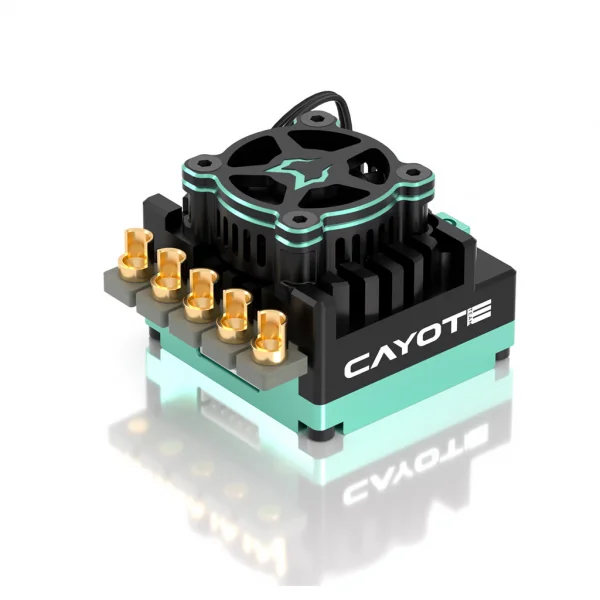

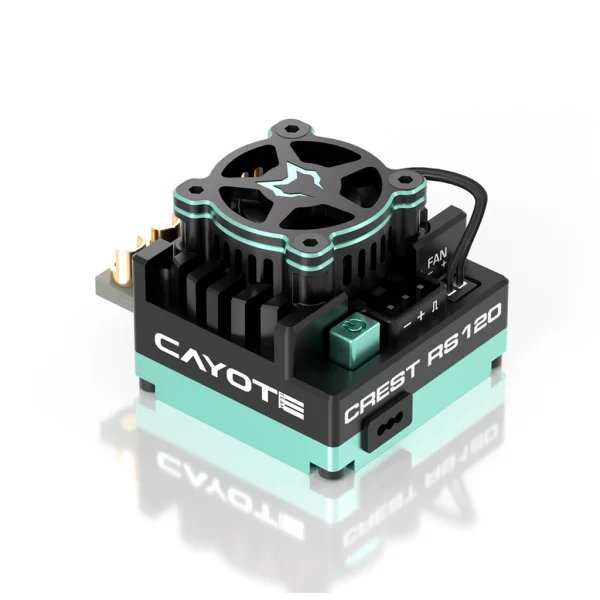

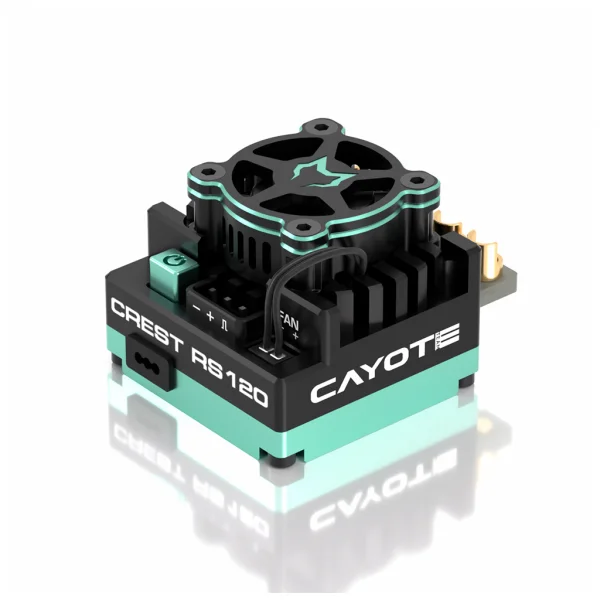

Cayote Crest Rs120 1:10 Stock Competition ESC

The Cayote CREST RS120 1/10 Stock Competition ESC is engineered for competitive RC drivers who need maximum control in a lightweight package. Delivering 120A continuous and up to 600A peak output in a compact, ultra-light design, it blends efficiency, thermal stability and precise adjustability to elevate your racing. SCH-CYEA11002.

Windowed Cooling N‑MOS technology and a high‑performance fan help shed heat under intense loads, while multiple protection functions — including built‑in reverse polarity protection — provide added peace of mind in the pits and on the rostrum. Real‑time data telemetry lets you monitor performance and make quick, informed setup changes between runs.

Key Features

• Lightweight, high‑performance design
• Windowed Cooling N‑MOS technology for superior heat dissipation
• Multiple protection features for reliability
• Built‑in reverse polarity protection
• Adjustable RPM limiting (10K–88K RPM) for precise speed control
• Data telemetry for real‑time performance monitoring
• Independent drag brake and brake frequency adjustment
• High‑performance fan system to keep the ESC cool

Specifications

• Continuous/Peak Current: 120A / 600A
• BEC Output: Ultra‑stable switch V regulation 6V/7.4V; Continuous current 5A / Peak 8A
• Supported Motor Types: Sensored and sensorless brushless motors
• Supported Motor KV: ≥10.5T 540/3650 size motors

Suggested Compatibility

• 1/10th touring car & buggy
• 1/10th drift
• Professional stock class racing

For stock‑class tuning, the adjustable RPM limiter provides precise top‑end control, while independent drag brake and brake frequency settings let you tailor initial bite and deceleration feel to track grip and driving style. With robust BEC output options at 6V or 7.4V (5A continuous / 8A peak), the CREST RS120 supports today’s high‑torque servos and electronics with stable power delivery, helping you run faster and cooler throughout qualifying and finals.
