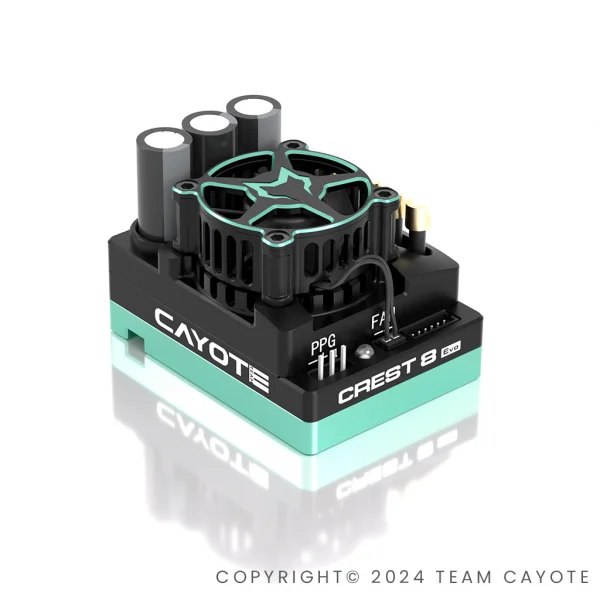

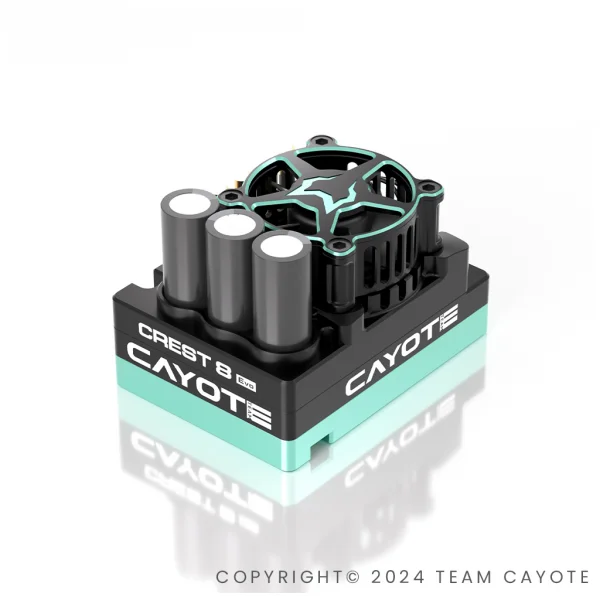

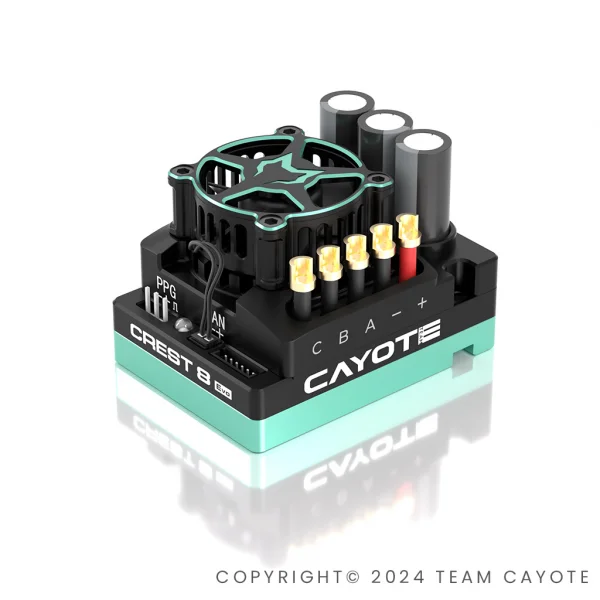

Cayote Racing Crest 8 Evo 1:8 Competition ESC

The Cayote Racing CREST 8 Evo 1/8th Competition ESC brings pro-level control, cooling and protection to serious racers. Built-in Bluetooth enables instant app-based tuning with no modules or cables, while 37 adjustable parameters let you refine throttle feel, braking, PWM frequency and RPM limits for your driving style and track conditions. Boost & Turbo Timing reacts to RPM or throttle input to deliver stronger acceleration on the straights, more stability through corners and up to 10% more peak power than the previous generation. Part number SCH-CYEA10802.

Delivering 200A continuous and 1080A peak current, the CREST 8 Evo is supported by an advanced cooling system featuring a high-speed metal fan in a durable metal housing. Multiple safeguards help preserve your electronics, including reverse polarity protection, capacitor overheat protection and IP5X dust resistance. An ultra-stable switch-mode BEC provides 6V/7.4V at 8A continuous (12A peak) to reliably power servos and peripherals.

Key Features

• Built-in Bluetooth for instant app tuning — no external modules or cables
• 37 adjustable settings covering throttle, brake, PWM, RPM limit and more
• Boost & Turbo Timing technology with automatic timing based on RPM or throttle input
• 200A continuous / 1080A peak current
• Advanced cooling with high-speed metal fan and metal housing
• Reverse polarity protection
• Capacitor overheat protection
• IP5X dust protection
• Parameter setting via Xlink Program Box or BTune App

Specifications

• Battery cells: 2–4S LiPo
• BEC output: Switch-mode 6V/7.4V, 8A continuous / 12A peak
• Supported motor types: Sensored and sensorless brushless motors
• Additional support: ≥10.5T 3650 size motors
• Dimensions: 56.8(L) × 41.6(W) × 40(H) mm
• Weight: 122 g
• Fan power: 6V/7.4V from built-in BEC
• Parameter setting: Xlink Program Box / BTune App

Suggested Applications

• 1/8 electric buggy / truggy
• Professional competition use
