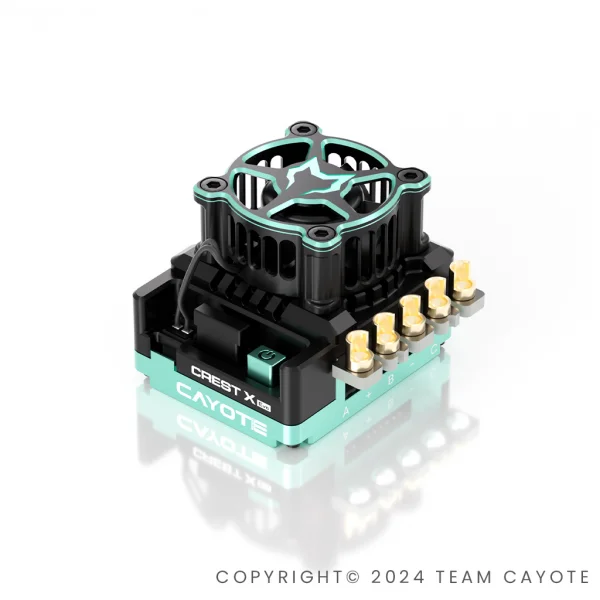

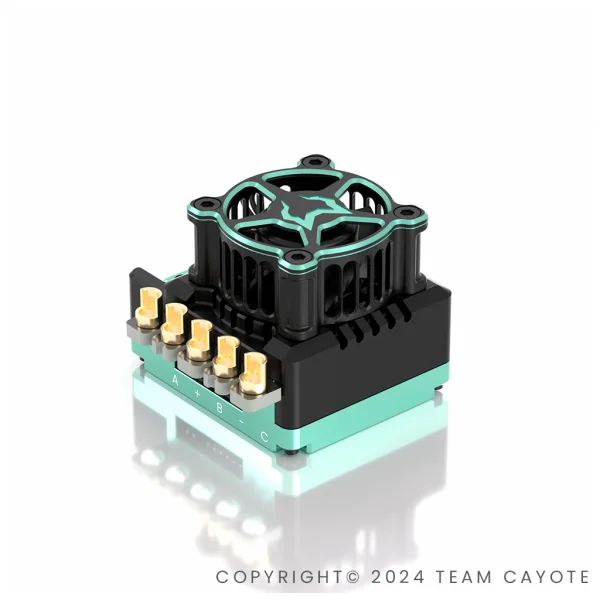

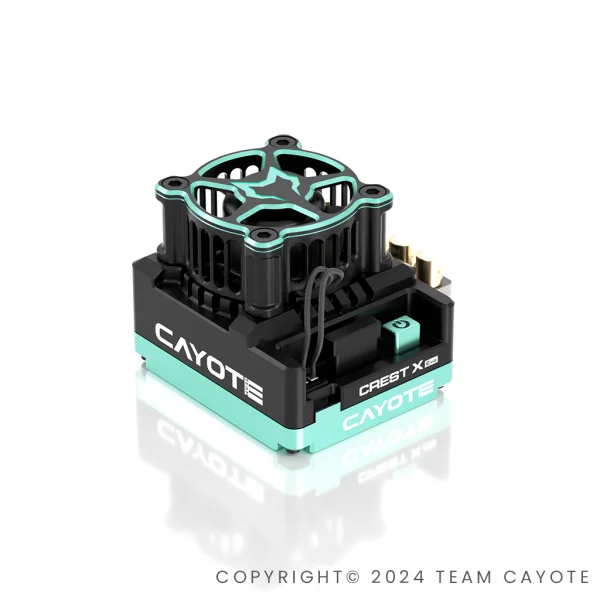

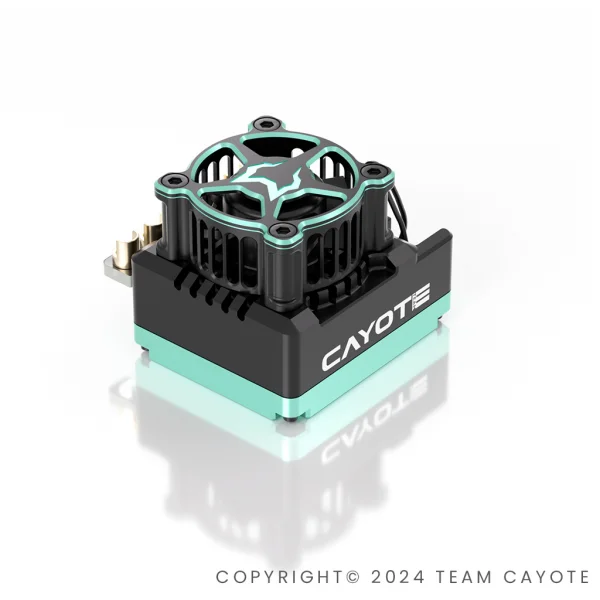

Cayote Racing Crest X Evo 1:10 Competition ESC

The Cayote Racing CREST X Evo (SCH-CYEA11005) is a 1/10th competition brushless ESC engineered for precision, response and thermal stability. Built on an ARM Cortex-M4 108 MHz platform delivering 5x processing power, it combines a compact footprint with metal-framed active cooling and a comprehensive safety suite to support high-level RC touring car and off-road racing.

With 160A continuous and 1100A peak current handling, an ultra-stable 6V/7.4V BEC (6A continuous, 8A peak), and precise throttle/brake PWM frequency tuning, the CREST X Evo offers rapid control response and fine adjustability. Wireless BTUNE app control enables convenient tuning, data logging and firmware updates, while the external switch interface helps keep installations clean and flexible.

Key Highlights

• 5x processing power with ARM Cortex-M4 108 MHz
• Metal-framed 4-vent cooling fan for optimal airflow
• Wireless control via BTUNE app: tuning, data logging and firmware updates
• Built-in protections: reverse polarity, fail-safe, low voltage and stall
• Up to 64° Boost & Turbo for instant acceleration
• Customisable external switch interface
• Precise throttle and brake PWM frequency tuning

Specifications

• Continuous / Peak Current: 160A / 1100A
• BEC Output: 6V or 7.4V; 6A continuous, 8A peak
• Microcontroller: ARM Cortex-M4, 108 MHz
• Cooling Fan: 25 × 25 × 10 mm, powered from 6–7.4V BEC
• Dimensions: 37.9 × 31.4 × 30 mm
• Weight: 55 g
• Programming: Via Xlink Program Box; optional BTUNE module/app; internal program port (APP control)
• Timing: Up to 64° Boost & Turbo
• Safety: Advanced reverse polarity protection plus full safety suite
• Wiring: Output black 13AWG 180 mm ×3; Input red 13AWG 180 mm ×1 and black 13AWG 180 mm ×1

Suggested Compatibility

• 1/10th touring car applications (motors ≥ 4.5T)
• 1/10th off-road applications (motors ≥ 5.5T)
• Sensored and sensorless brushless motors
• 2S LiPo battery systems
