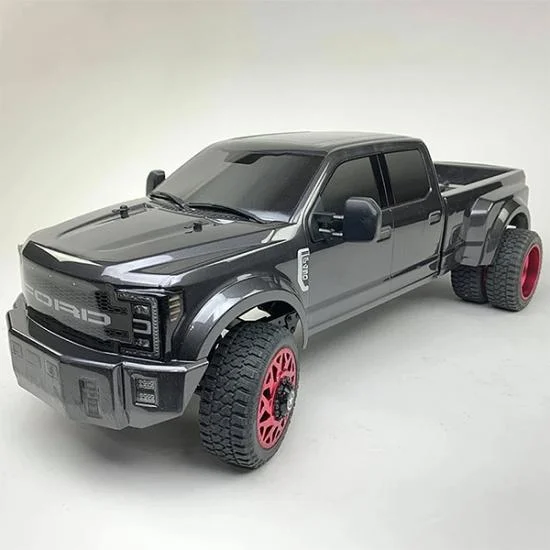

CEN DL Series - Ford F450 SD Titanium

CEN RACING DL-SERIES FORD F450 SD 1/10 CUSTOM TRUCK RTR TITANIUMFeatures

ESC

• 40A WP-1040-Brushed Electronic Speed Control (O.E.M by HobbyWing)
• Water-Proof and dust-proof for all weather
• Built-In Capacitator Module
• Automatic throttle range calibration
• Low Voltage Cut-Off Protection for Li-Po and NiMH Battery
• Over-heat protection and throttle signal loss protection

Motor

• High RPM RS-550 High Torque Motor (O.E.M. by Mabuchi Motor)

Servo

• 12Kg Servo O.E.M. by Savox
• 4.8V 0.26 sec/60 10.0 Kg-cm
• 6.0V 0.23 sec/60 12.0 Kg-cm
• 25T Horn Gear Spline

Radio System

• Pistol-Grip AMP30 3 Channel Transmitter
• Digital Trimming
• Steering Dual-Rate (ST D/R) Adjustment
• End Point Adjustment (EPA)

Specifications

BodyBody

• Scale Realistic Body Details
• F-450 Super Duty Official Licensed by Ford Motor

Drivetrain

• Metal Transmission Gears4 Wheel Drive
• Center Shaft Drivetrain For More Power Transferred To The Wheels
• Height Efficient Transmission System
• Wide Range Easy Changeable Gear Box Design
• Sealeed Transmission Case
• Sealed Axle Housing
• Planetary Gear Type Differential
• Slipper Clutch Drive System

Suspension

• 3 Links Suspension with Panhard Bar Design
• Big Bore Oil Filled Adjustable Coil Over Shocks
• 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
• Harden Steel Steering Drag Link
• 6mm Aluminium Linkage
• Sway Bar Included
• Adjustable Wheelbase (w/optional centre shaft)

Chassis

• Steel Frame Rails
• CMS (Chassis Mounted Servo) Chassis Design
• Stamped Steel Shock Hoops
• Steel Skid Plate
• Sealed Receiver Compartment
• Full Precision Ball Bearing Support
• High Torque Servo Horn Saver
• Easy Access Battery Tray
• Battery Tray Size 138.50 x 47 x 24mm

Gear Ratio

• Hi /Speed Ratio 1.58:1
• Hi / Torque Ratio 2.8:1
• Ring & Pinion 30/15T 2:1
• Spur Gear & Pinion Gear 32p 56T / 32p 10T

Wheel

• Official Licensed American Force H01 Contra Wheel
• Size: 66 x 37.50 mm
